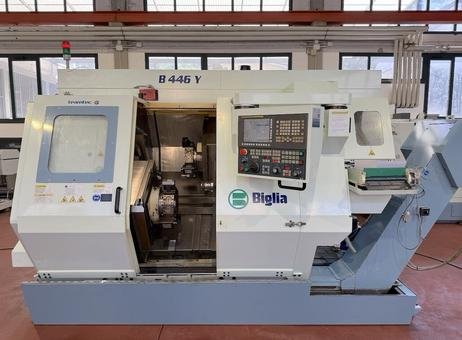

BIGLIA B446Y CNC lathe

BIGLIA B446Y CNC lathe
Make an offer
BIGLIA
B446Y
Italy
Lathes - CNC lathes
P260423087
+39 030 …
Ø above the bed
55 mm
Type of CNC
X-axis
170 mm
Z-axis
390 mm
Spindle taper
asa5
Spindle bore
55 mm
Number of turrets
3
Number of tools on turret
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
Length x width x height
4400.0 × 2150.0 × 2200.0
Weight
7200 kg
as-is, where-is
23/04/2026
Machine Title: BIGLIA B446Y CNC Lathe
Manufacturer: BIGLIA
Model: B446Y
Technical Condition: As-is, where-is
Main Spindle:
- Max Rotation Speed: 5000 rpm
- Spindle Nose: ASA5"
- Spindle Hole: 55 mm
- Internal Bearing Diameter: 80 mm
- Max Power: 15 kW
- Accuracy (C Axis): 0.001°
Subspindle:
- Max Rotation Speed: 5000 rpm
- Spindle Nose: ASA5"
- Spindle Hole: 55 mm
- Internal Bearing Diameter: 80 mm
- Max Power: 11 kW
- Accuracy (C Axis): 0.001°
- Automatic B Axis Positioning: 420 mm
- Rapid Feed B: 30 m/min
Turret 2:
- Positions Number: 12
- Rotation Time (1 Position): 0.15 sec
- Number of Driven Stations: 12
- Driven Tools Speed: 4000 rpm
- Driven Tools Power: 3.7 kW
- Axis Stroke X2: 170 mm
- Rapid Feed X2: 18 m/min
- Axis Stroke Z2: 390 mm
- Rapid Feed Z2: 30 m/min
- Axis Stroke Y2: 90 [-40/+50] mm
- Rapid Feed Y2: 9 m/min
Turret 3:
- Axis Stroke X3: 170 mm
- Rapid Feed X3: 18 m/min
- Axis Stroke Z3: 400 mm
- Rapid Feed Z3: 30 m/min
Extra Features:
- Machine Total Weight: 7200 kg
- Floor Space: 4400 x 2150 x 2200 mm
- Workpiece Expulsion Robot: Yes
- Workpiece Unloading Device with Conveyor Belt: Yes
- Chip Conveyor: Yes
- Workpieces Conveyor Belt: Yes
- Tool Presetter: Marposs TT30
- Coolant Pump: CTS 20 Bar

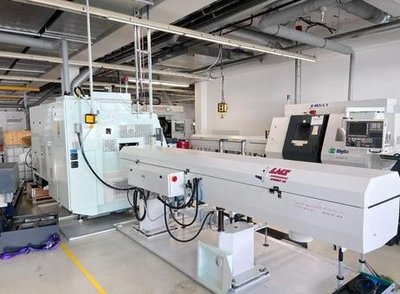

- Bar Feeder: LNS Hydrobar Sprint S3
2007
