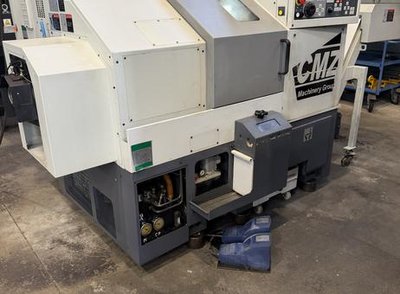

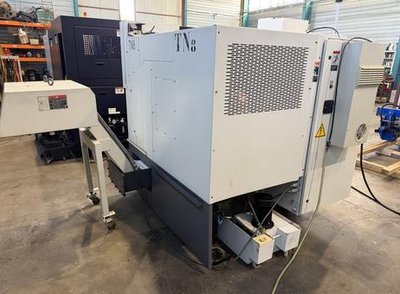

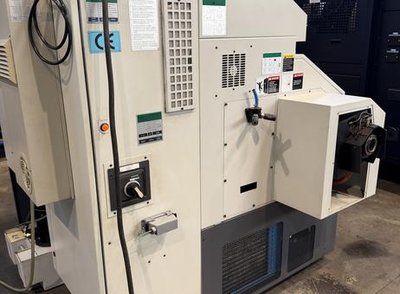

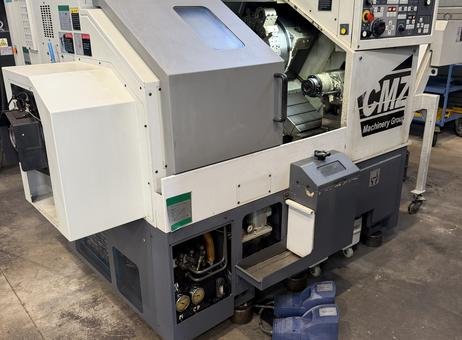

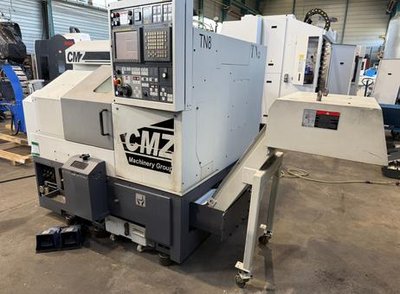

CMZ TB67M CNC lathe
Dohodou
| Stan | gebraucht |
|---|---|
| Výrobce | Fanuc |
| Rok výroby | 2006 |
| Manufacturer | CMZ |
| Model | TB67M |
| Year | 2006 |
| Location | France |
| Category | Lathes - CNC lathes |
| Turning length | 400 mm |
| Turning Ø | 340 mm |
| Ø above the bed | 640 mm |
| Ø above transversing slide | 385 mm |
| Length between centers | 400 mm |
| Type of CNC | FANUC 32iT |
| X-axis | mm |
| Z-axis | 400 mm |
| Max workpiece weight | kg |
| Spindle taper | cl8 |
| Spindle bore | mm |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Number of rotating tools | 12 |
| Turning speed | 4000 rpm |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 2600.0 × 1620.0 × 1670.0 |
| Weight | 3700 kg |
| worked hours | 8456 hours |
| hours under power | 27267 hours |
| state | good |
| At local norms | yes |
| status | under power |
| Datasheet | CMZ TB67M |
| Last availability date | 20/10/2026 |
| Product id | P261015827 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 24 |
| Last activity | Oct. 20, 2026 |
Popis
• Max. diameter over bed 640 mm
• Max. diameter over carriage 385 mm
• Maximum turning diameter 340 mm
• Maximum turning length 400 mm
• X-axis travel 200 mm
• Z-axis travel 400 mm
• C-axis 360000°
• Spindle speed 4 000 rpm
• Bar capacity 66 mm
• Spindle nose ASA A2-6"
• 12/24-station turret, including 12 driven stations
• Live-tool speed 4000 rpm
• Motor power 22 kW
• FANUC 21i-TB Manual Guide CNC
• Electrical cabinet air conditioning
• 3-color status light
• 3 axial tools, 3 radial driven tools
• Ø 250 mm 3-jaw hydraulic chuck
• Tailstock travel 120 mm. • Chip conveyor. • Tool touch probe arm. • Parts catcher
• IEMCA VIP80 short-bar feeder
• Technical documentation
• Weight 3 700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
