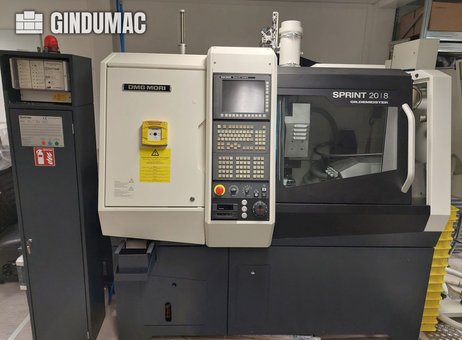

DMG MORI Gildeasister Sprint 20 / 8 CNC soustruh

DMG MORI Gildemeister Sprint 20/8 CNC lathe
Top seller
Make an offer
DMG MORI
Gildemeister Sprint 20/8
2019
Germany
Lathes - CNC lathes
P260423297
+34 679 …
Turning length
mm
Turning Ø
20 mm
Ø above the bed
20 mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
50 mm
Z-axis
60 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
10000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
1900.0 × 1000.0 × -
Weight
2400 kg
as-is, where-is
Datasheet
Dmg Mori Gildemeister Sprint 20/8 Linear
24/04/2026
This DMG MORI Gildemeister Sprint 20/8 is a 6-axis CNC lathe machine manufactured in 2019, designed for precision turning tasks. It features a main spindle capable of handling workpieces up to 20 mm in diameter, with a high spindle speed of 10,000 rpm, suitable for detailed and high-speed machining operations. The machine's X-axis stroke is 50 mm and the Z-axis stroke is 60 mm, providing adequate range for various turning applications. The machine weighs approximately 2400 kg and has a footprint measuring 1900 mm in length and 1000 mm in width, making it a compact yet robust option for industrial environments. Equipped with a FANUC 32i-B CNC control system, it offers user-friendly programming with 2 programming channels, 0.5 MB NC memory, and the capacity to store up to 1000 programs. The control panel includes a 10.4-inch TFT monitor, USB, Ethernet, and PCMCIA interfaces for flexible connectivity. Safety features include an emergency stop button, and the machine is rated with IP67 protection for the machine itself and IP54 for the cabinet, ensuring reliable operation under standard industrial conditions. The lathe includes a sub-spindle with a maximum diameter of 20 mm and a spindle speed of 10,000 rpm powered by a 1.5 kW motor, enhancing machining versatility. It offers 25 tool positions with 12 x 12 mm tool holders, supporting complex tooling setups. The machine supports rapid traverse speeds up to 32 m/min with acceleration of 5 m/s², providing efficient and precise movements. Coolant systems are designed for mineral oil (up to 32 cSt at 40 °C) with an optional emulsion coolant, a 165-liter tank, and a coolant pump delivering 90 l/min at 0.7 bar pressure. The machine operates on a 400 V ±10% power supply with a total power consumption of 12 kVA. Noise levels are maintained below 75 dBA, and the machine is suitable for ambient temperatures ranging from +15 to +35 °C with humidity up to 75%. From the images, the machine appears clean and well-maintained, with no visible damage. It includes a clearly visible control panel with a screen and an emergency stop button, as well as a red warning light on the machine enclosure. The machine is labeled with DMG MORI and SPRINT 20|8 GILDEMEISTER branding. Dismantling and removal are the responsibility of the buyer. This machine is well-suited for precision machining tasks, including magnesium machining, offering a combination of speed, accuracy, and advanced control features. This 6-axis DMG MORI Gildemeister Sprint 20/8 was manufactured in 2019. It features a main spindle with a maximum diameter of 20 mm and a speed of 10,000 rpm, along with a sub-spindle for enhanced machining capabilities. With a rapid traverse of 32 m/min and a robust tool capacity of 25 positions, this machine is ideal for magnesium machining. If you are looking to get high-quality turning capabilities, consider the DMG MORI Gildemeister Sprint 20/8 swiss type turning machine. Contact us for further details.Footprint: 1900 x 1000 mm
Dismantling / removal: By buyer
Forklift: By buyer
Software: Fanuc 32i-B
Application: Magnesium machining
Power-on time: 414 h
Operating hours (program run): 110 h
Control
Programming channels: 2
NC memory: 0.5 MB
Max. programs: 1000
Monitor: 10.4 inch TFT
Interfaces: USB, Ethernet, PCMCIA
Axes
Stroke X1: 50 mm
Stroke Y1: 325 mm
Stroke Y2: 85 mm
Sub spindle stroke X2: 220 mm
Main spindle stroke Z1: 60 mm
Sub spindle stroke Z2: 170 mm
Rapid traverse: 32 m/min
Acceleration: 5 m/s²
Feed force Z1 / Z2 / X1 / X2: 150 daN
Feed force Y1: 370 daN
Feed force Y2: 220 daN

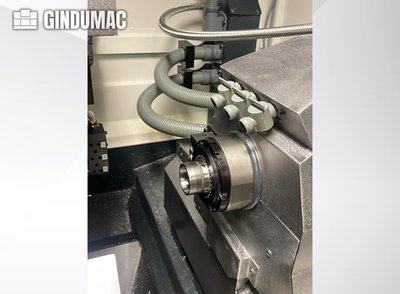

Sub spindle
Max. diameter: 20 mm
Max. speed: 10000 rpm
Power: 1.5 kW

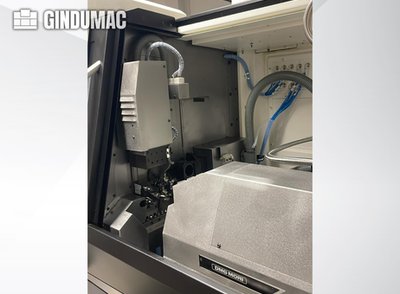

Tooling
Tool positions: 25
Tool holder: 12 x 12 mm
Coolant
Coolant: Mineral oil, max. 32 cSt at 40 °C
Optional coolant: Emulsion
Coolant tank: 165 l
Coolant pump flow: 90 l/min
Coolant pump pressure: 0.7 bar
Electrical data
Total power: 12 kVA
Operating voltage: 400 V ±10%
Frequency: 50 Hz
Fuse: 63 A
Control voltage: 24 V
Protection / operating conditions
Machine protection: IP67
Cabinet protection: IP54
Noise level: < 75 dBA
Air consumption: 175 NL/min
Air consumption with emulsion: 360 NL/min
Ambient temperature: +15 to +35 °C
Humidity: max. 75%
Installation altitude: max. 1000 m
Control Brand: FANUC
Control Model: 32i
Counter Spindle: yes
Machine Weight: 2400 kg
Max. Bar Diameter: 20 mm
Number of Axes: 6
Spindle Power: 2.2 kW
Spindle Speed: 10000 RPM
