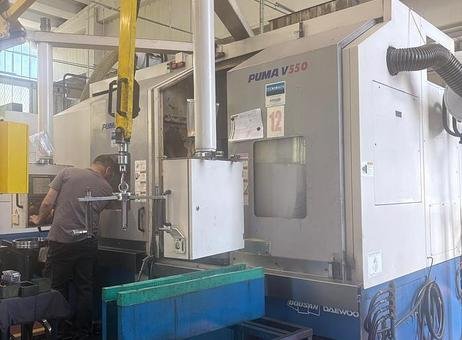

Doosan Daewoo PUMA V550 CNC lathe
39.00 €
Dohodou
| Stan | ueberholt |
|---|---|
| Výrobce | Fanuc |
| Rok výroby | 2006 |
| Manufacturer | Doosan Daewoo |
| Model | PUMA V550 |
| Year | 2006 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning Ø | 393 mm |
| Ø above the bed | 580 mm |
| X-axis | 255 mm |
| Z-axis | 800 mm |
| Turning speed | 3500 rpm |
| Tailstock | no |
| Bar feeder | no |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | DAEWOO DOOSAN PUMA V550 |
| Last availability date | 21/09/2026 |
| Product id | P260918035 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 40 |
| Last activity | Sept. 22, 2026 |
| Turning length | 1330 mm |

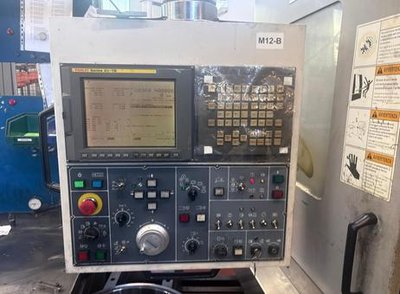

| Type of CNC | FANUC 18i-T |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle motor power | 15 kW |
| Spindle taper | Asa-11 |
| Number of tools on turret | 12 |
| Length between centers | mm |
| Max workpiece weight | kg |
| Spindle bore | 90 mm |
| Ø above transversing slide | 449 mm |
Popis
Manufacturer Doosan Daewoo, Model PUMA V550, Year 2006, Condition Refurbished, CNC Control FANUC Series 21i-TB, Max diameter swing over bed Ø 800 mm, Max diameter swing over saddle Ø 490 mm, Max turning diameter Ø 730 mm, Max turning height 750 mm, Max weight allowed on chuck 650 Kg, X axis travel 490 mm, Z axis travel 780 mm, Chuck diameter Ø 450 mm, Spindle speed 2.000 Rpm, Spindle nose ASA A2-11, Spindle motor power (cont/30 min) 30/37 kW, Turret stations 8 stations, Tools dimensions / boring bar diameter 32x32 / Ø60 mm, Rapid feedrates X Axis 12.000 mm/min, Rapid feedrates Z Axis 16.000 mm/min, Accessories Chip conveyor - Coolant tank with pumps - Various fix tool holders - Transformer - Manuals - Electrical diagrams - EC CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
