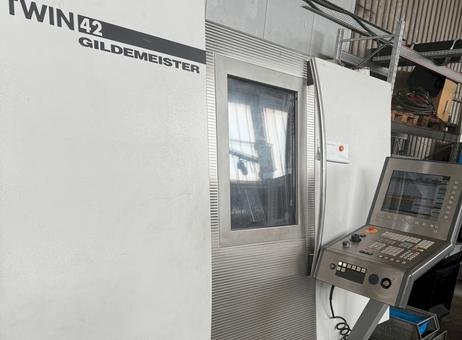

Gildemister Twin 41 cnc lathe

Gildemeister Twin 41 cnc lathe
Top seller
Price on request
View price
Manufacturer
Gildemeister
Model
Twin 41
Year
2006
Location
Germany
Category
Lathes - CNC lathes
Product id
P250404182
Buy this machine
Language
Language
cnc струг Gildemeister Twin 41
Soustruh cnc Gildemeister Twin 41
Gildemeister Twin 41 cnc drejebænk
Gildemeister Twin 41 Drehmaschine CNC
cnc τόρνος Gildemeister Twin 41
Gildemeister Twin 41 cnc lathe
Torno cnc Gildemeister Twin 41
Tour cnc Gildemeister Twin 41
cnc tokarski stroj Gildemeister Twin 41
Gildemeister Twin 41 cnc eszterga
Tornio cnc Gildemeister Twin 41
cnc tekinimo staklės Gildemeister Twin 41
Gildemeister Twin 41 cnc-draaibank
Tokarka CNC Gildemeister Twin 41
Torno CNC Gildemeister Twin 41
strung cnc Gildemeister Twin 41
Gildemeister Twin 41 Токарный станок с ЧПУ
cnc strug Gildemeister Twin 41
Gildemeister Twin 41 cnc svarv
Cnc torna Gildemeister Twin 41
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
650 mm
Turning Ø
120 mm
Ø above the bed
250 mm
Ø above transversing slide
100 mm
Length between centers
580 mm
Type of CNC
SIEMENS 840 D
X-axis
220 mm
Z-axis
320 mm
Spindle taper
Spindle bore
42 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
7000 rpm
Spindle motor power
35 kW
Tailstock
no
Bar feeder
yes
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister TWIN 42
Last availability date
19/05/2026
Show more
Automatic description (AI-Generated)
The Gildemeister Twin 41 is a high-precision CNC horizontal turning machine manufactured in 2006, designed for complex and demanding turning operations. This model features 7 axes, enabling versatile machining capabilities including simultaneous multi-axis movements. It is equipped with a single turret that holds 12 tools, all of which are rotating tools, allowing for efficient tool changes and diverse machining processes. The machine supports a turning speed of up to 7000 rpm, suitable for a wide range of materials and applications.
This unit includes a Siemens 840D control system, known for its reliability and advanced functionality, mounted on a swivel arm for ergonomic operation. The machine has a double spindle configuration with main and counter spindles, enhancing productivity by enabling simultaneous machining on both spindles. It also features a Y-axis for additional machining flexibility.
The working envelope includes a rotation diameter of 145 mm and chuck diameters of 140 mm on both spindles. The longitudinal slide travels are 320 mm, 345 mm, and 380 mm across the different axes, with a vertical slide travel of ±30 mm. The tool stations accommodate tools with a shank diameter of 25 mm, and the attached tools can operate at speeds up to 6000 rpm. The C-axis supports indexing at up to 2000 rpm with a pitch resolution of 0.001°.
Additional equipment includes a collet chuck, a belt filter system, and a loading magazine (FMB Turbo 10-72 XT), which contribute to efficient operation and material handling.
The machine's exterior shows some scratches and signs of wear but remains generally intact. It features a windowed door for easy monitoring of the machining process. Overall, the Gildemeister Twin 41 is a robust and versatile CNC lathe suitable for precision manufacturing environments. For further details or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 7-axis Gildemeister Twin 41 horizontal turning machine was manufactured in 2006. Ideal for precision and complex turning operations, it offers robust performance and reliability. Consider the opportunity to buy this Gildemeister Twin 41 horizontal turning machine. Contact us for more information.
Brand: SIEMENS
Model: 840 D
Spindle speed range: 7000 rpm
Number of axis: 7
Double spindle version
Y-axis
Main and counter spindle
Collet chuck
1 attached tool axial
1 attached tool radial
Belt filter system

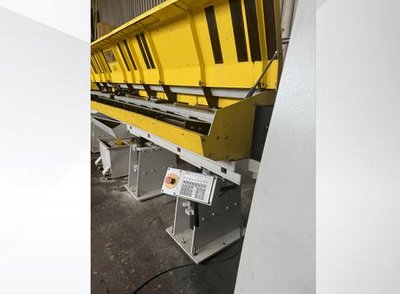

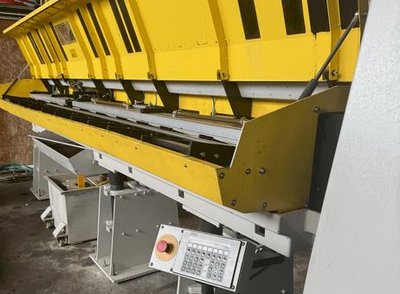

Loading magazine FMB Turbo 10-72 XT
Rotation diameter 145 mm
Chuck diameter (spindle 1 + 2): 140 mm
Longitudinal slide travel z1, z2, z3: 320 mm, 345 mm, 380 mm
Vertical slide travel y1: +/- 30 mm
Longitudinal spindle travel z3: 380 mm
Tool stations: 12, all stations attached
Shank diameter: 25 mm
Speed of the attached tools: 6000 rpm
C-axis: 2000 rpm
Pitch: 0. 001°
Machine still under power
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
1974
Last activity
May 21, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
This 7-axis Gildemeister Twin 41 horizontal turning machine was manufactured in 2006. Ideal for precision and complex turning operations, it offers robust performance and reliability. Consider the opportunity to buy this Gildemeister Twin 41 horizontal turning machine. Contact us for more information.
Brand: SIEMENS
Model: 840 D
Spindle speed range: 7000 rpm
Number of axis: 7
Double spindle version
Y-axis
Main and counter spindle
Collet chuck
1 attached tool axial
1 attached tool radial
Belt filter system
Loading magazine FMB Turbo 10-72 XT
Rotation diameter 145 mm
Chuck diameter (spindle 1 + 2): 140 mm
Longitudinal slide travel z1, z2, z3: 320 mm, 345 mm, 380 mm
Vertical slide travel y1: +/- 30 mm
Longitudinal spindle travel z3: 380 mm
Tool stations: 12, all stations attached
Shank diameter: 25 mm
Speed of the attached tools: 6000 rpm
C-axis: 2000 rpm
Pitch: 0. 001°
Machine still under power
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Specifications
Turning length
650 mm
Turning Ø
120 mm
Ø above the bed
250 mm
Ø above transversing slide
100 mm
Length between centers
580 mm
Type of CNC
SIEMENS 840 D
X-axis
220 mm
Z-axis
320 mm
Spindle taper
Spindle bore
42 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
7000 rpm
Spindle motor power
35 kW
Tailstock
no
Bar feeder
yes
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister TWIN 42
Last availability date
19/05/2026
Show more
Automatic description (AI-Generated)
The Gildemeister Twin 41 is a high-precision CNC horizontal turning machine manufactured in 2006, designed for complex and demanding turning operations. This model features 7 axes, enabling versatile machining capabilities including simultaneous multi-axis movements. It is equipped with a single turret that holds 12 tools, all of which are rotating tools, allowing for efficient tool changes and diverse machining processes. The machine supports a turning speed of up to 7000 rpm, suitable for a wide range of materials and applications.
This unit includes a Siemens 840D control system, known for its reliability and advanced functionality, mounted on a swivel arm for ergonomic operation. The machine has a double spindle configuration with main and counter spindles, enhancing productivity by enabling simultaneous machining on both spindles. It also features a Y-axis for additional machining flexibility.
The working envelope includes a rotation diameter of 145 mm and chuck diameters of 140 mm on both spindles. The longitudinal slide travels are 320 mm, 345 mm, and 380 mm across the different axes, with a vertical slide travel of ±30 mm. The tool stations accommodate tools with a shank diameter of 25 mm, and the attached tools can operate at speeds up to 6000 rpm. The C-axis supports indexing at up to 2000 rpm with a pitch resolution of 0.001°.
Additional equipment includes a collet chuck, a belt filter system, and a loading magazine (FMB Turbo 10-72 XT), which contribute to efficient operation and material handling.
The machine's exterior shows some scratches and signs of wear but remains generally intact. It features a windowed door for easy monitoring of the machining process. Overall, the Gildemeister Twin 41 is a robust and versatile CNC lathe suitable for precision manufacturing environments. For further details or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
About this seller
Client type
Machinery dealer
Active since
2019
Offers online
1974
Last activity
May 21, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.

---
[SRC:exapro:250404182]
