Honor VL- 400CM Vertikální CNC Lathe

Honor VL-400CM Vertical CNC Lathe
View price
Honor
VL-400CM
2018
Turkey
Lathes - CNC vertical turret lathes
P230928051
Working height
2000 mm
CNC type
Siemens
Max piece weight
40000 kg
Overhauled
no
4000 hours
excellent
25/03/2026

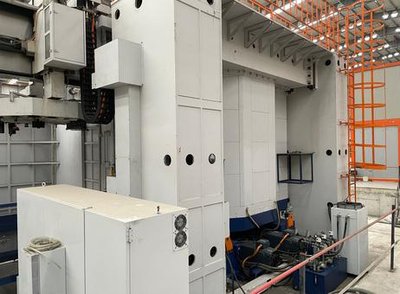

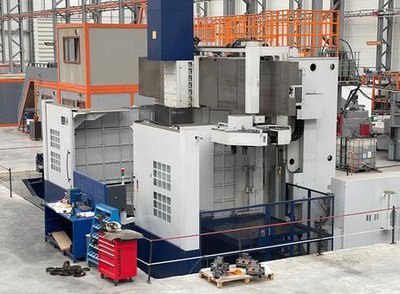

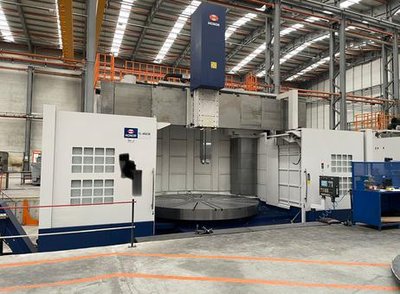

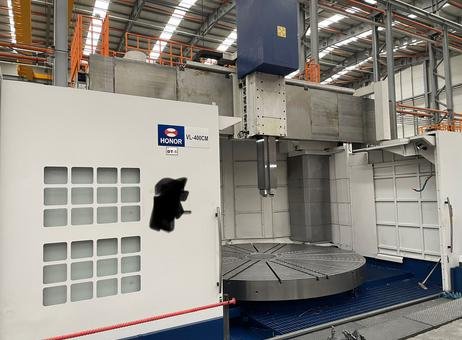

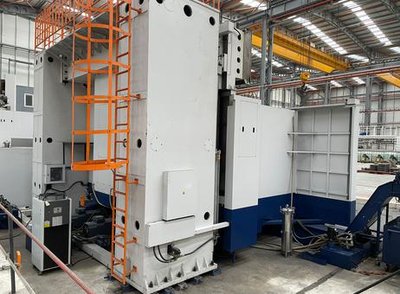

The Honor VL-400CM is a vertical CNC turret lathe designed for heavy-duty machining tasks. Manufactured in 2018, this machine features a large circular worktable with a diameter of 4000 mm, enabling the handling of substantial workpieces. It supports a maximum swing diameter and turning diameter of 4500 mm, allowing for the machining of large components. The maximum cutting height is 2000 mm, consistent with its working height specification, and it can accommodate workpieces weighing up to 40,000 kg. The distance from the table to the ram ranges between 880 mm and 2320 mm, providing flexibility for various machining operations. This machine is equipped with a vertical spindle and a robust vertical column, supported by hydraulic and pneumatic systems. The control panel includes a screen displaying machine parameters and operating hours, with the current power unit fan operating hours recorded at 3304 hours. The electrical cabinets are closed and intact, showing no visible signs of damage or corrosion. Physically, the lathe is clean and well-maintained, with minimal visible wear on surfaces. The machine structure and components appear in good condition, with no visible defects or leaks around the hydraulic components. The workshop environment where the machine is housed is clean, indicating proper maintenance. Access to the vertical column is facilitated by an integrated ladder. Overall, the Honor VL-400CM vertical CNC lathe offers substantial capacity for machining large and heavy workpieces, supported by a comprehensive set of features and a condition that suggests careful upkeep. Honor VL-400CM Vertical CNC Lathe
Machine is in excellent condition
Table diameter : 4000 mm
Max swing diameter : 4500 mm
Maximum turning diameter : 4500 mm
Maximum cutting height : 2000 mm
Maximum weight of workpiece : 40000 KG
Distance from table to ram : 880-2320 mm
