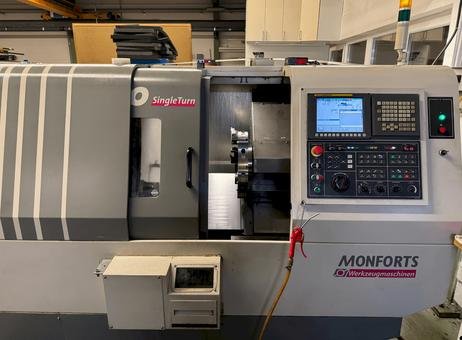

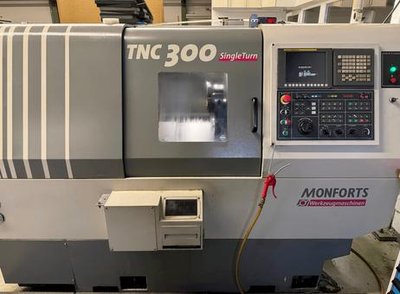

Monforts TNC 300 SingleTurn cnc lathe

Monforts TNC 300 SingleTurn cnc lathe
Top seller
Price on request
View price
Manufacturer
Monforts
Model
TNC 300 SingleTurn
Year
2009
Location
Germany
Category
Lathes - CNC lathes
Product id
P241121377
Buy this machine
Language
Language
cnc струг Monforts TNC 300 SingleTurn
Soustruh cnc Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn cnc drejebænk
Monforts TNC 300 SingleTurn Drehmaschine CNC
cnc τόρνος Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn cnc lathe
Torno cnc Monforts TNC 300 SingleTurn
Tour cnc Monforts TNC 300 SingleTurn
cnc tokarski stroj Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn cnc eszterga
Tornio cnc Monforts TNC 300 SingleTurn
cnc tekinimo staklės Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn cnc-draaibank
Tokarka CNC Monforts TNC 300 SingleTurn
Torno CNC Monforts TNC 300 SingleTurn
strung cnc Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn Токарный станок с ЧПУ
cnc strug Monforts TNC 300 SingleTurn
Monforts TNC 300 SingleTurn cnc svarv
Cnc torna Monforts TNC 300 SingleTurn
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
500 mm
Ø above the bed
480 mm
Type of CNC
FANUC 0i-TC
Spindle taper
Number of tools on turret
10
Turning speed
4500 rpm
Tailstock
no
Bar feeder
no
-------------------
Weight
3120 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
19/05/2026
Show more
Automatic description (AI-Generated)
The Monforts TNC 300 SingleTurn is a CNC lathe machine manufactured in 2009, designed for precise horizontal turning operations. It features a robust construction with overall dimensions of 2780 mm in length and 2230 mm in width, weighing approximately 3120 kg. The machine is equipped with a Fanuc 0i-TC control system, providing reliable and user-friendly CNC operation.
This model includes a 10-station turret capable of holding tools with a shank diameter of 30 mm, allowing for versatile machining tasks. The turning length capacity is 500 mm, with a maximum rotating diameter over the bed of 480 mm, suitable for medium-sized workpieces. The spindle speed ranges from 40 to 4500 rpm, enabling a wide range of machining speeds. Maximum torque is rated at 124 Nm.
The machine is fitted with a three-jaw power chuck by Kitagawa, with an 8-inch (200 mm) diameter, complemented by a hydraulic hollow clamping device that accommodates material passages up to 52 mm in diameter. Additional features include a chip conveyor with a chain hinge belt to manage debris efficiently and a coolant system operating at 10 bar pressure.
Operational precision is supported by a position accuracy of ±0.005 mm and repeatability of ±0.002 mm. Rapid traverse rates are 30 m/min for both the X and Z axes. The tailstock offers a travel distance of 425 mm and a quill stroke of 50 mm with an MK4 taper.
The machine's exterior shows minor wear and some dirt marks, reflecting normal usage. It includes an attached red air blow gun for cleaning purposes. The control panel is located on the right side, featuring a screen with multiple buttons and knobs for easy operation.
This Monforts TNC 300 SingleTurn is suitable for high-quality turning tasks and medium-sized production runs. Please contact us for more detailed information or to arrange a viewing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This Monforts TNC 300 SingleTurn was manufactured in 2009. A robust horizontal turning machine featuring a Fanuc 0i-TC control system, 10 tool stations, and a three-jaw power chuck Kitagawa 8''. It includes a hydraulic hollow clamping device and a chip conveyor. Ideal for high-quality turning capabilities. Contact us for more information about this machine.
Measurements width: 2230 mm
Measurements depth: 2780 mm
Machine weight: 3120 kg
Brand: FANUC
Model: 0i-TC
Spindle speed range: 40 to 4500 min-1
Chip conveyor: Yes

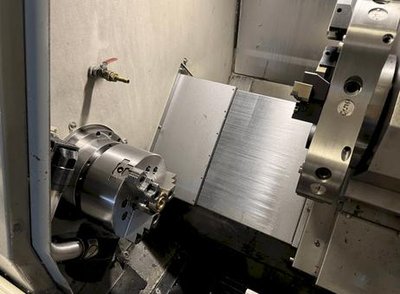

Three-jaw power chuck Kitagawa 8'' (200 mm)
Hydraulic hollow clamping device (diameter 52 mm)
Chip conveyor chain hinge belt
Coolant system: 10 bar
One hadwheel
Collet chuck CRL-42-A6 (diameter 42 mm)
Automatic tool measurement
Short bar loader for bar length: 1200 mm
Max. Torque: 124 nm
Rapid traverse x-axis: 30 m/min / rapid traverse z-axis: 30 m/min
Position accuracy: ±0. 005 mm / repeatability: ±0. 002 mm
Rotating diameter over bed: 480 mm / rotating diameter over cross slide: 320 mm / turning length: 500 mm

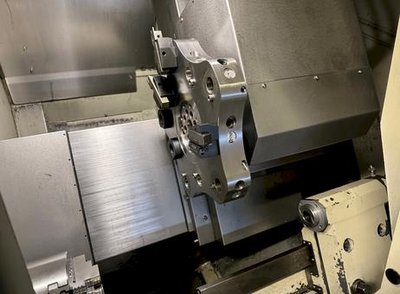

Number of tool stations: 10 / vdi size: 30 / shank diameter: 30 mm
Pinole diameter: 65 mm / quill stroke: 50 mm / tailstock travel: 425 mm / quill inner taper: mk4
Quill inner taper: mk4 / max. Material passage: 52 mm
Spindle diameter in front bearing: 100 mm / spindle height: 900 mm
