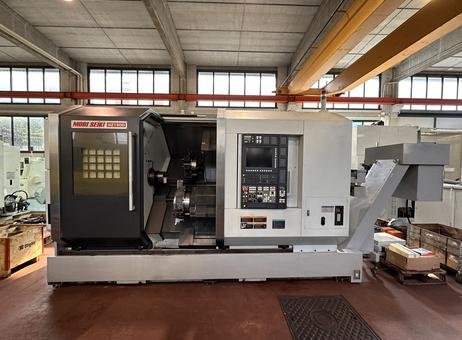

MORI SEIKI NZ1500T2Y CNC lathe
39.00 €
Dohodou
| Stan | gebraucht |
|---|---|
| Výrobce | Fanuc |
| Rok výroby | 2007 |
| Manufacturer | MORI SEIKI |
| Model | NZ1500T2Y |
| Year | 2007 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | 785 mm |
| Turning Ø | 366 mm |
| Ø above the bed | 755 mm |
| Ø above transversing slide | 740 mm |
| Length between centers | 961 mm |
| X-axis | 260 mm |
| Z-axis | 795 mm |
| Max workpiece weight | 600 kg |
| Spindle bore | 91 mm |
| Turning speed | 4000 rpm |
| Spindle motor power | 18.5 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3930.0 × 2710.0 × - |
| Weight | 8100 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Mori Seiki NZ1500T3Y3 |
| Last availability date | 28/09/2026 |
| Product id | P260723026 |
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 181 |
| Last activity | Sept. 30, 2026 |
| Type of CNC | MXS 850 IV |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | ASA 8" |
| Number of tools on turret | 12 |
Popis
Lathe
Type
CNC
Brand
MORI SEIKI
NZ1500T2Y
Capacity
ø320/52x260 mmø12.60/2.05x10.24 in
Year of manufacture
11/2007 (in service 05/2008)
Technical specifications
Convert toMetricImperial
WORKING AREA
Center height
52
Max turning diameter
320 mm12.60 in
Notes
max swing 800mm - distance between spindles 1130mm
MAIN SPINDLE
Maximum rotation speed
6000 rpm
Spindle nose
ASA5”
Spindle bore
61 mm2.40 in
Inner bearing diameter
100 mm3.94 in
C axis resolution
0.001 °
C axis speed
6000 rpm
Maximum power
22 kW
SUB SPINDLE
Maximum power
22 kW
C axis resolution
0.001 °
C axis speed
6000 rpm
Automatic B axis positioning
920 mm36.22 in
Self-centering diameter
152.4 mm6.00 in
TURRET 1
Number of positions
16
Y1 axis stroke
+65 / -45 mm+2.56 / -1.77 in
X1 axis stroke
210 mm8.27 in
Z1 axis stroke
810 mm31.89 in
Powered tool power
7.5 kW
Powered tool speed
6000 rpm
Rapid traverse X1 axis
30 m/min1,181.10 ipm
Rapid traverse Z1 axis
50 m/min1,968.50 ipm
Rapid traverse Y1 axis
20 m/min787.40 ipm
Number of powered positions
16
TURRET
Number of positions
16
Number of powered positions
16
Powered tool speed
6000 rpm
Powered tool power
7.5 kW
X axis stroke
210 mm8.27 in
Rapid traverse X
30 m/min1,181.10 ipm
Z axis stroke
810 mm31.89 in
Rapid traverse Z
50 m/min1,968.50 ipm
CNC
Drives
Fanuc
CNC
MSX701 MAPPS III
EXTRA
Machine dimensions
3930x2710 mm154.72x106.69 in
Total machine weight
8100 Kg
Total installed power
77 kVA kW
Tool presetting
yes
Bar loader
yes
Powered tool holders
2
The supplied data is based on the information available to us, where possible obtained from manufacturers; therefore, despite good faith, given the nature and complexity of the equipment, these data may be incomplete and/or inaccurate and in no case their accuracy can be guaranteed nor constitute any contractual obligation. We always recommend inspecting the equipment and requesting confirmation of the data. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
