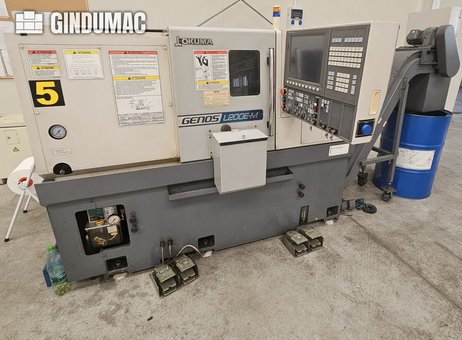

Okuma GENOS L200E- M CNC lathe

Okuma GENOS L200E-M CNC lathe
Top seller
Price on request
View price
Manufacturer
Okuma
Model
GENOS L200E-M
Year
2011
Location
Poland
Category
Lathes - CNC lathes
Product id
P260512261
Buy this machine
Language
Language
CNC струг Okuma GENOS L200E-M
CNC soustruh Okuma GENOS L200E-M
Okuma GENOS L200E-M CNC-drejebænk
CNC-Drehmaschine Okuma GENOS L200E-M
CNC τόρνος Okuma GENOS L200E-M
Okuma GENOS L200E-M CNC lathe
Torno CNC Okuma GENOS L200E-M
Tour CNC Okuma GENOS L200E-M
Okuma GENOS L200E-M CNC tokarski stroj
Okuma GENOS L200E-M CNC eszterga
Tornio CNC Okuma GENOS L200E-M
Okuma GENOS L200E-M CNC tekinimo staklės
Okuma GENOS L200E-M CNC draaibank
Tokarka CNC Okuma GENOS L200E-M
Torno CNC Okuma GENOS L200E-M
Strung CNC Okuma GENOS L200E-M
CNC токарный станок Okuma GENOS L200E-M
Okuma GENOS L200E-M CNC токарски струг
Okuma GENOS L200E-M CNC-svarv
Okuma GENOS L200E-M CNC torna
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
mm
Turning Ø
200 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
210 mm
Z-axis
380 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
50 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
4500 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
-
× -
× -
Weight
kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Okuma GENOS L200E-M
Last availability date
21/05/2026
Show more
Automatic description (AI-Generated)
The Okuma GENOS L200E-M is a CNC lathe manufactured in 2011, designed for precision turning tasks. It features a maximum turning diameter of 200 mm and a Z-axis travel of 380 mm, with an X-axis travel of 210 mm. The machine is equipped with a spindle bore diameter of approximately 50 mm and a spindle speed reaching up to 4500 RPM, suitable for various turning operations.
This model includes a 12-station turret with driven tools, enabling milling and drilling capabilities on the C-axis, enhancing its versatility for complex machining processes. The lathe operates on a 3-axis configuration (X, Z, and C axes) without a Y-axis and is fitted with a tailstock to support longer workpieces.
Control is managed through the OKUMA OSP-P200LA-R system, providing reliable and user-friendly operation. The spindle nose follows the ASA A2-6 standard. Electrical requirements include a 380 V, 3-phase, 50/60 Hz supply, with an average apparent power consumption of 17.7 kVA and a maximum motor current draw of 45 A.
The machine is equipped with an automatic tool presetter, facilitating efficient tool setup and reducing downtime. Observations indicate the lathe is used but remains in good condition, with some dirt and wear marks visible on the lower gray base, which is typical for industrial equipment.

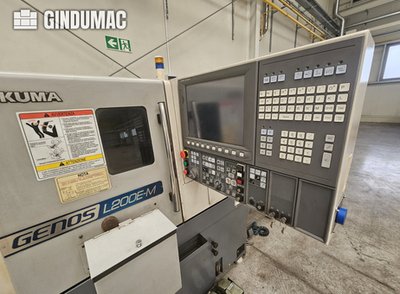

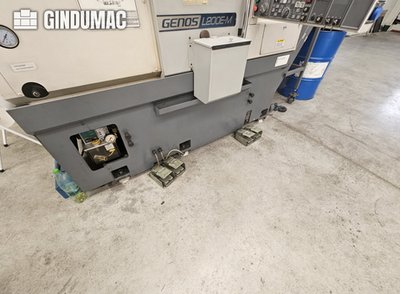

Additional visible features include a control panel with a screen and multiple buttons and knobs located on the right side, providing convenient access for the operator, and two foot pedals at the base of the machine. Multiple warning and instruction labels in Italian are present on the machine body, emphasizing safety and operational guidelines.
Overall, the Okuma GENOS L200E-M horizontal turning center offers precise and versatile turning capabilities suitable for various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 3-axis Okuma GENOS L200E-M was manufactured in 2011. It features a maximum turning diameter of 200 mm and a Z-axis travel of 380 mm. The machine is equipped with a 12-station turret with driven tools, allowing for milling and drilling on the C-axis. If you are looking to get high-quality turning capabilities, consider the Okuma GENOS L200E-M horizontal turning center we have for sale. Contact us for further details.Turning configuration: 2 axes (X, Z) + C‑axis; no Y‑axis
Tailstock: Equipped
Tool presetter: Automatic tool presetter installed
Turret: 12‑station turret with driven tools (milling and drilling on C‑axis)
Max. turning diameter: 200 mm
Spindle nose: ASA A2‑6
Spindle bore diameter: approx. 50 mm
Electrical supply: 380 V, 3‑phase, 50/60 Hz
Average apparent power: 17.7 kVA
Full‑load current: 26.7 A
Max. motor current draw: 45 A
Control Brand: OKUMA
Control Model: OSP‑P200LA‑R
Counter Spindle: no
Driven Tools: no
Number of Axes: 3
Spindle Speed: 4500 RPM
X-axis Travel: 210 mm
Z-axis Travel: 380 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
