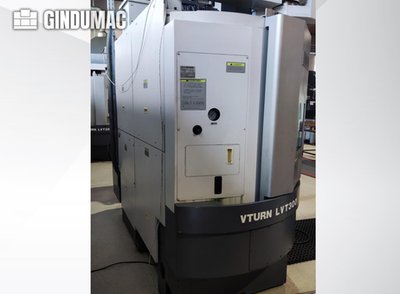

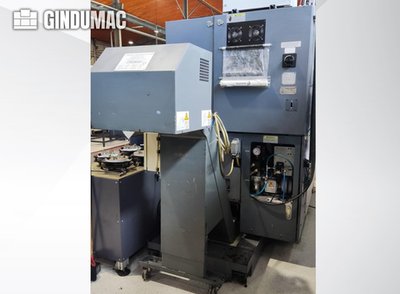

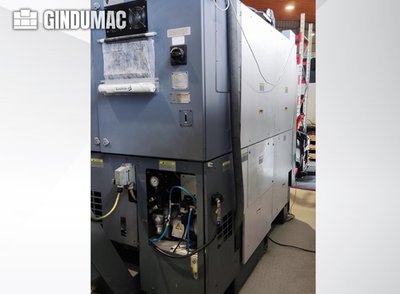

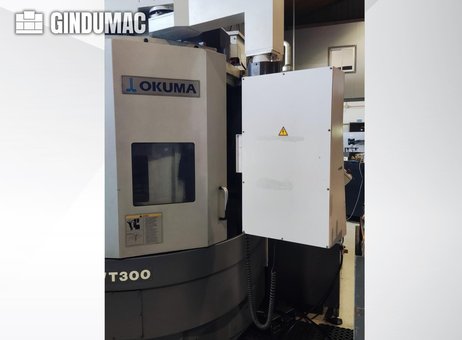

Okuma LVT300 CNC vertikální věž lathe

Okuma LVT300 CNC vertical turret lathe
Top seller
View price
Okuma
LVT300
2004
Spain
Lathes - CNC vertical turret lathes
P260515297
+34 679 …
Plate diameter
mm
Working height
mm
CNC type
Max piece weight
kg
Rotation speed
4000 rpm
Engine Power
kW
Overhauled
no
Year of overhauling
Length x width x height
280.0 × 150.0 × -
Weight
5500 kg
as-is, where-is
Datasheet
Okuma LVT300
18/05/2026
This Okuma LVT300 is a CNC vertical turret lathe manufactured in 2004, designed for precision turning operations. It features a maximum turning diameter of 280 mm and a maximum turning length of 150 mm, making it suitable for machining medium-sized components. The machine offers an X-axis travel of 220 mm and a Z-axis travel of 620 mm, providing ample range for various turning tasks. The spindle speed ranges from 40 to 4000 rpm, allowing for versatility in machining different materials and finishes. Equipped with a JIS A2-8 spindle nose and a bolt-on turret of VDI-40 type, the turret has a capacity of 12 stations (V12), enabling efficient tool changes and multi-tool operations. The machine operates on a 400 V, 3-phase, 50 Hz power supply and has a maximum power consumption of 29.6 kVA. Electrical specifications include a total full-load current of 42.8 A and a maximum motor current of 96 A, with a short-circuit interrupting capacity of 15 kA. The control system is an Okuma OSP-P200L, known for reliability and user-friendly interface. The machine weighs approximately 5500 kg, reflecting its robust construction. Visual inspection indicates that the machine is in good physical condition with no visible damage. It includes an attached control panel or enclosure for operational control. This Okuma LVT300 is ideal for users seeking a reliable vertical turret lathe with solid specifications for a range of turning applications. For more details or to discuss your specific machining needs, please contact us. Vertical turning machine manufactured in 2004. This Okuma LVT300 features a maximum turning diameter of 280 mm and a turning length of 150 mm. It offers X-axis travel of 220 mm and Z-axis travel of 620 mm, with a spindle speed range of 40 to 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LVT300 machine we have for sale. Contact us for further details regarding this machine.Max. turning diameter: 280 mm
Max. turning length: 150 mm
X-axis rapid traverse: 60 m/min
Z-axis rapid traverse: 30 m/min
Spindle nose: JIS A2-8
Turret capacity: 12 stations (V12)
Turret type: Bolt-on (VDI-40)

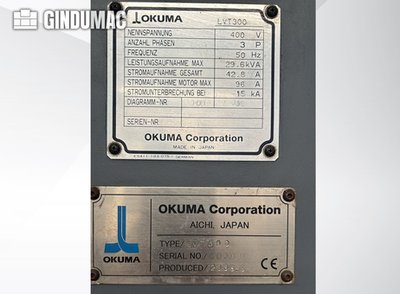

Input voltage: 400 V
Phases: 3
Frequency: 50 Hz
Maximum power consumption: 29.6 kVA
Total full-load current: 42.8 A
Maximum motor current: 96 A
Short-circuit interrupting capacity: 15 kA
Electrical diagram number: W5201-121-772-2
Control Brand: OKUMA
Control Model: OSP-P200L
Driven Tools: no
Machine Weight: 5500 kg
Number of Axes: 2
Spindle Speed: 4000 RPM
X-axis Travel: 220 mm
Z-axis Travel: 620 mm
