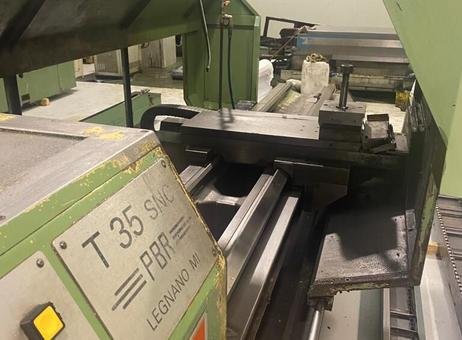

PBR T35-S SNC 350x2000mm CNC lathe
39.00 €
Dohodou
| Stan | gebraucht |
|---|---|
| Rok výroby | 2000 |
| Manufacturer | PBR |
| Model | T35-S SNC 350x2000mm |
| Year | 2000 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | 1500 mm |
| Turning Ø | 1135 mm |
| Ø above the bed | 625 mm |
| Ø above transversing slide | 378 mm |
| Length between centers | 5000 mm |
| X-axis | 560 mm |
| Z-axis | 2000 mm |
| Max workpiece weight | 30000 kg |
| Spindle bore | 105 mm |
| Turning speed | 2000 rpm |
| Spindle motor power | 37 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 4700.0 × 2250.0 × 1815.0 |
| Weight | 6200 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Last availability date | 28/09/2026 |
| Product id | P260723019 |
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 181 |
| Last activity | Sept. 30, 2026 |
| Type of CNC | Fagor T8055 |
| Number of turrets | 1 |
| Number of rotating tools | 1 |
| Spindle taper | A11 |
| Number of tools on turret | 12 |
Popis
Lathe
Type
auto-learning
Brand
PBR
T35-S SNC 350x2000mm
Capacity
700x2000 mm27.56x78.74 in
Technical specifications
Convert to MetricImperial
WORK AREA
Max workpiece diameter
720 mm28.35 in
Max diameter on carriage
425 mm16.73 in
Distance between centers
2000 mm78.74 in
Bed width
450 mm17.72 in
Recess length
2 mm0.08 in
Max weight between centers
3000 Kg
Max weight on steady rests
4000 Kg
CARRIAGE
Carriage width
750 mm29.53 in
Rapid traverse X
6000 mm/min236.2200 ipm
Rapid traverse Z
6000 mm/min236.2200 ipm
Maximum allowed diameter
720 mm28.35 in
Carriage slide travel
450 mm17.72 in
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle nose
Cam Lock 6”
Spindle bore
105 mm4.13 in
Bearing inner diameter
146/130 mm5.75/5.12 in
Max power
17 Kw
Max torque
2440 Nm
Gear range
67-31/430-2000
TAILSTOCK
Barrel diameter
115 mm4.53 in
Barrel travel
250 mm9.84 in
Morse taper barrel
MT 5
TURRET
Number of positions
1-Multifix
EXTRA
Total machine weight
6200 Kg
Machine dimensions
4700x2250x1815 mm185.04x88.58x71.46 in
Open steady rests
1
Steady rest passage on carriage
1
Availability
Ready
Visible in warehouse
Yes
The data provided are based on the information available to us, where possible obtained from manufacturers; therefore, despite good faith, due to the nature and complexity of the goods, such data may be incomplete and/or inaccurate and in no case can their correctness be guaranteed or constitute any contractual obligation. It is always recommended to inspect the goods and request confirmation of the data. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Type
auto-learning
Brand
PBR
T35-S SNC 350x2000mm
Capacity
700x2000 mm27.56x78.74 in
Technical specifications
Convert to MetricImperial
WORK AREA
Max workpiece diameter
720 mm28.35 in
Max diameter on carriage
425 mm16.73 in
Distance between centers
2000 mm78.74 in
Bed width
450 mm17.72 in
Recess length
2 mm0.08 in
Max weight between centers
3000 Kg
Max weight on steady rests
4000 Kg
CARRIAGE
Carriage width
750 mm29.53 in
Rapid traverse X
6000 mm/min236.2200 ipm
Rapid traverse Z
6000 mm/min236.2200 ipm
Maximum allowed diameter
720 mm28.35 in
Carriage slide travel
450 mm17.72 in
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle nose
Cam Lock 6”
Spindle bore
105 mm4.13 in
Bearing inner diameter
146/130 mm5.75/5.12 in
Max power
17 Kw
Max torque
2440 Nm
Gear range
67-31/430-2000
TAILSTOCK
Barrel diameter
115 mm4.53 in
Barrel travel
250 mm9.84 in
Morse taper barrel
MT 5
TURRET
Number of positions
1-Multifix
EXTRA
Total machine weight
6200 Kg
Machine dimensions
4700x2250x1815 mm185.04x88.58x71.46 in
Open steady rests
1
Steady rest passage on carriage
1
Availability
Ready
Visible in warehouse
Yes
The data provided are based on the information available to us, where possible obtained from manufacturers; therefore, despite good faith, due to the nature and complexity of the goods, such data may be incomplete and/or inaccurate and in no case can their correctness be guaranteed or constitute any contractual obligation. It is always recommended to inspect the goods and request confirmation of the data. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
