RADAR RAL-20M vertical turret lathe with cnc

RADAR RAL-20M vertical turret lathe with cnc
Verified seller
Price on request
Make an offer
Manufacturer
RADAR
Model
RAL-20M
Year
2016
Location
Italy
Category
Lathes - CNC vertical turret lathes
Product id
P250720033
Buy this machine
Language
Language
вертикален револверен струг с ЦПУ RADAR RAL-20M
Soustruh - karusel cnc RADAR RAL-20M
RADAR RAL-20M lodret drejebænk med cnc
RADAR RAL-20M Karusselldrehmaschine CNC
κάθετος τόρνος πυργίσκου με cnc RADAR RAL-20M
RADAR RAL-20M vertical turret lathe with cnc
Torno vertical cnc RADAR RAL-20M
Tour vertical à cnc RADAR RAL-20M
vertikalni revolver tokarski stroj sa CNC RADAR RAL-20M
RADAR RAL-20M függőleges tornyos eszterga cnc-vel
Tornio verticale RADAR RAL-20M
vertikalios bokštinės tekinimo staklės su cnc RADAR RAL-20M
RADAR RAL-20M verticale draaibank met cnc
Tokarka karuzelowa CNC RADAR RAL-20M
torno de torre vertical com cnc RADAR RAL-20M
strung vertical cu turela cu cnc RADAR RAL-20M
RADAR RAL-20M Вертикальный токарно-револьверный станок с ЧПУ
strug sa vertikalnim kupolom sa cnc RADAR RAL-20M
RADAR RAL-20M vertikal revolversvarv med cnc
Dik taret Torna RADAR RAL-20M
Get price & details
+39 3 93…
Show phone
Details
About this seller
Specifications
Plate diameter
2000 mm
Working height
1600 mm
CNC type
Fanuc OITD
Max piece weight
13000 kg
Rotation speed
1200 rpm
Overhauled
no
-------------------
Length x width x height
7800.0
× 5100.0
× 5930.0
Weight
130 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
14/04/2026
Show more
Automatic description (AI-Generated)

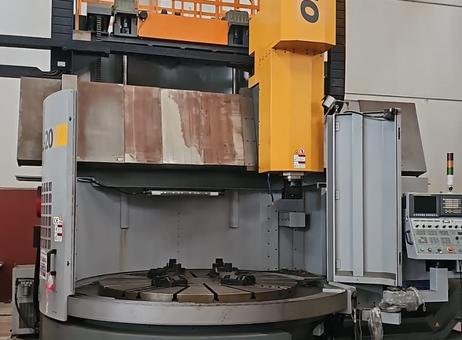

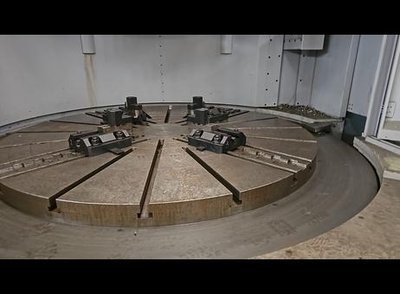

This used RADAR RAL-20M vertical turret lathe, manufactured in 2016, is a large industrial machine designed for heavy-duty machining tasks. It features a rotary table with a diameter of 2000 mm, equipped with multiple slots and clamps for secure workpiece mounting. The machine accommodates a maximum workpiece weight of 13,000 kg and offers a working height of 1600 mm, suitable for handling substantial components.

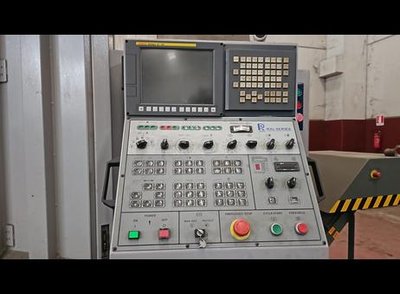

The lathe is controlled via a FANUC Series 0/LTD CNC control panel, which includes a screen and numerous buttons and knobs for precise operation. The control panel shows signs of use but remains intact, ensuring operational functionality.
The machine's overall dimensions are 7800 mm in length, 5100 mm in width, and 5930 mm in height, with a weight of 130 kg as per the provided data. It has a rotation speed of up to 1200 rpm, enabling efficient machining processes.

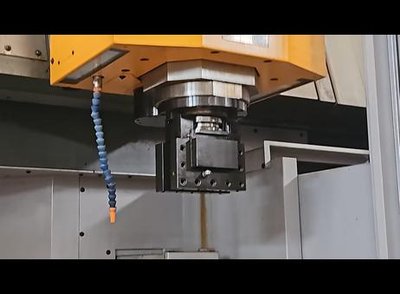

The vertical column is fitted with an orange protective cover labeled "ymco" and supports a tool holder or spindle head. A flexible coolant hose is attached near the tool holder to aid in cooling during operations. The machine includes a safety railing on top to enhance operator protection.
Regarding condition, the lathe shows visible signs of use, including wear and some surface discoloration on metal parts. There are minor rust spots and a visible rust streak on the vertical column below the tool holder, which potential buyers should consider.
This machine is equipped with a high-pressure pump (10 bar) and a chip ejector to facilitate efficient machining and maintenance. Overall, the RADAR RAL-20M vertical turret lathe is a robust and sizable machine suitable for heavy machining tasks, with comprehensive CNC control and essential accessories included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
AXIS C
MOTORIZED TOOLS
FANUC Oi-TD Numerical Control
CAPACITY:
Table diameter mm 2000
Max rotary diameter mm 2500
Max turning diameter mm 2400
Distance between RAM and table mm 1075-1875
Max turning height mm 1600
Max workpiece weight Kg 13,000
RAM dimensions mm 240x270
MANDRIN:
Speed rpm 1-50;1-200 (2 speeds)
Max torque Nm 33,770
Motor power kW AC 37/45
COURSES:
X-axis travel mm -250/+1380
Z-axis travel mm 1000
Traverse stroke mm 800
AUTOMATIC TOOL CHANGE:
Tool change 18 positions (9 motorized)
Max tool length mm 400
Max tool weight kg 50
BT50 tool attachment
Spindle speed rpm 50-2250
MACHINE DIMENSIONS AND WEIGHT:
Space occupied mm 7800x5100
Machine height mm 5930
Machine weight kg 42500
COMPLETE WITH:
-High pressure pump 10 bar
-Chip ejector
USED MACHINE
YEAR 2016
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
