Schiess Ø 1420 mm CNC vertikální věž s cnc

Schiess Ø 1420 mm CNC vertical turret lathe with cnc
Top seller
Make an offer
Schiess
Ø 1420 mm CNC
Belgium
Lathes - CNC vertical turret lathes
P230810058
+32 93 8…
Plate diameter
1210 mm
CNC type
Siemens
Engine Power
30 kW
Overhauled
no
Length x width x height
2550.0 × 2900.0 × 3140.0
Weight
13000 kg
good
visible
18/04/2026

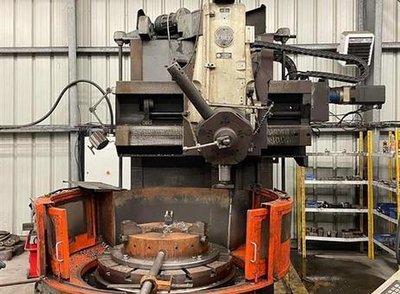

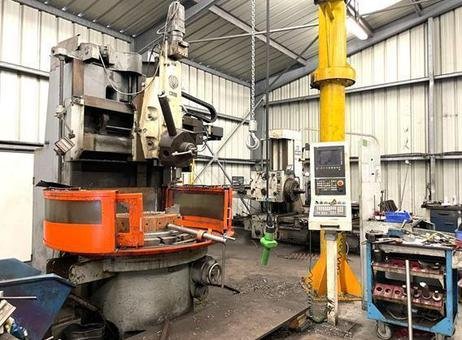

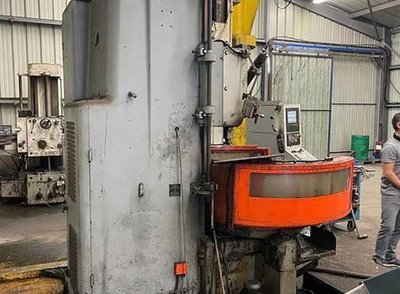

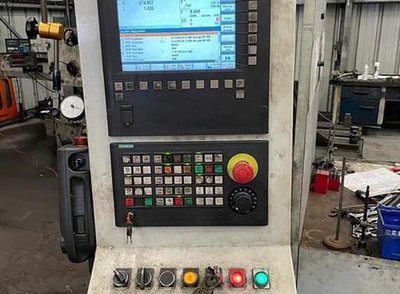

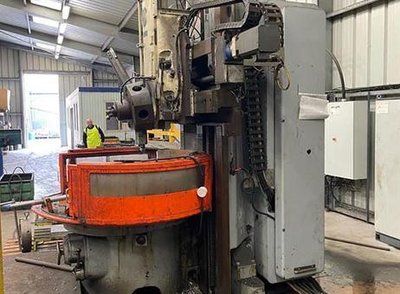

This Schiess vertical turret lathe, model Ø 1420 mm CNC, features a robust design suitable for heavy-duty machining tasks. It is equipped with a large worktable that has a plate diameter of 1210 mm, allowing for the handling of sizable workpieces. The maximum turning diameter through the passage is 1420 mm, providing substantial capacity for various turning operations. The spindle is powered by a 30 kW motor, delivering strong performance for demanding machining processes. The machine is controlled via a Siemens CNC interface, which includes a control panel mounted on a vertical column. This panel features a screen displaying CNC program data, multiple operational buttons, and an emergency stop button for enhanced safety and ease of use. The lathe measures 2550 mm in length, 2900 mm in width, and 3140 mm in height, with a total weight of approximately 13,000 kg, reflecting its solid construction. The machine is equipped with orange safety guards around the worktable, contributing to operator safety during operation. Visual inspection indicates that the machine shows signs of use but remains structurally intact. It is housed indoors within a metal shed with overhead lighting, and an overhead hoist with a yellow support column is positioned nearby, which may assist in handling heavy components. Overall, this Schiess vertical turret lathe offers a combination of substantial machining capacity, reliable Siemens CNC control, and a sturdy build, making it a valuable asset for industrial machining applications requiring vertical turret lathe capabilities. Chuck dia. 1210 mm
Max turningdia -- passage
1420 mm
Power on the spindle
30 kW
CNC
Siemens
Long
2550 mm
Wide
2900 mm
Height
3140 mm
Frequently Asked Questions (AI-Generated)
What type of control has been retrofitted on this Schiess lathe? This Schiess Ø 1420 mm CNC vertical turret lathe has been retrofitted with a CNC control. Who checked the retrofit of the machine? The retrofit was fully checked by the company that performed the work. Was a backup of the parameters created during the check? A backup of the parameters was made during the check of the machine. The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details. 2015
