SMTCL HTC 63300 cnc lathe

SMTCL HTC 63300 cnc lathe
Top seller
View price
SMTCL
HTC 63300
2007
Spain
Lathes - CNC lathes
P250627124
+34 679 …
Ø above the bed
810 mm
Ø above transversing slide
580 mm
Length between centers
3000 mm
Type of CNC
FANUC oi-TC
Spindle taper
Number of tools on turret
12
Turning speed
1800 rpm
Spindle motor power
45 kW
Tailstock
yes
Bar feeder
no
Length x width x height
6390.0 × 2600.0 × 2500.0
Weight
21000 kg
as-is, where-is
19/05/2026

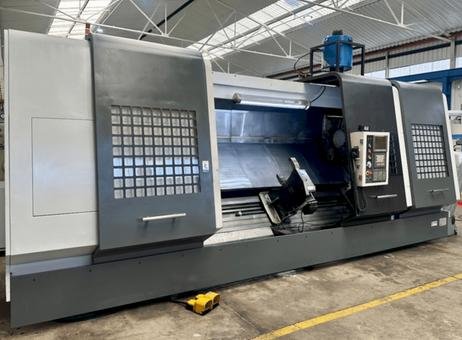

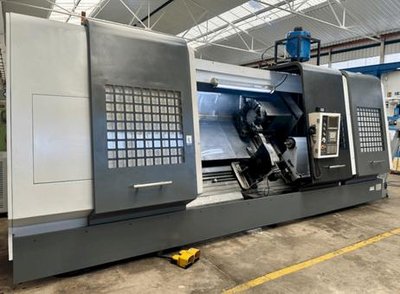

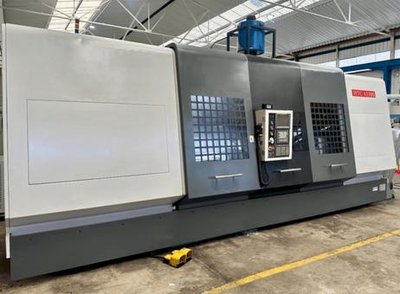

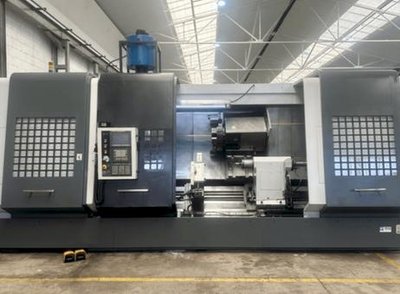

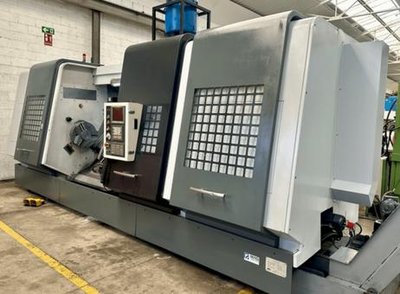

The SMTCL HTC 63300 is a robust CNC horizontal lathe manufactured in 2007, designed for machining large workpieces. It features a swing diameter of 810 mm over the bed and 580 mm over the transversing slide, allowing for versatile turning operations. The lathe accommodates a maximum length between centers of 3000 mm. It is equipped with an automatic turret holding 12 tool positions, suitable for tools up to 32 mm in size, enabling efficient multi-tool machining. The spindle offers a speed range from 50 to 1800 rpm, powered by a 45 kW motor, providing strong and precise spindle performance. The spindle nose follows the ASA 11” A2 standard, and the chuck size is 500 mm, with a bar capacity of 125 mm. The tailstock has a travel of 120 mm, supporting longer workpieces during machining. The machine measures 6390 mm in length, 2600 mm in width, and 2500 mm in height, with a weight of approximately 21,000 kg. The CNC lathe includes a control panel with a display screen and buttons mounted on the front and side, facilitating operation and programming. Additionally, a foot pedal control is present for operator convenience. The machine has sliding doors that provide access to the working area and chuck. A chip conveyor system with motor and belt is attached at the rear, designed to efficiently remove metal shavings during operation. Both the interior and exterior of the machine appear clean and well-maintained, with intact panels and no visible damage or dents. This SMTCL HTC 63300 is suitable for heavy-duty turning tasks requiring precision and reliability. Please contact us for further details or to arrange a viewing. This SMTCL HTC 63300 was manufactured in 2007. A robust horizontal turning machine featuring a swing diameter over bed of 810 mm and over saddle of 580 mm. It includes a 500 mm chuck, a spindle speed range of 50 - 1800 rpm, and an auto turret with 12 tool positions. Ideal for handling large workpieces with its 3000 mm distance between centers. Contact us for more information about this machine. Measurements width: 2600 mm
Measurements depth: 6390 mm
Measurements height: 2500 mm
Machine weight: 21000 kg
Brand: FANUC
Model: oi-TC
Spindle speed range: 50 - 1800
Spindle motor power: 37 / 45 kW
Number of axis: 2
X-Axis Rapid Traverse: 10 m/min
Z-Axis Rapid Traverse: 10 m/min
Workpiece drm over bed: 810 mm
Workpiece drm over support: 580 mm
Distance between centers: 3000 mm
Spindle nose: asa 11” a2
Chuck size: 500 mm
Bar capacity: 125 mm
Type: auto turret with 12 tool positions (32 mm tools)
Tailstock travel: 120 mm
Machine still under power
