BIGLIA B 470 S2M cnc lathe

BIGLIA B 470 S2M cnc lathe
Make an offer
BIGLIA
B 470 S2M
2000
Italy
Lathes - CNC lathes
P240104155
+39 035 …
Turning length
250 mm
Turning Ø
200 mm
Ø above the bed
200 mm
Type of CNC
FANUC 18iT
X-axis
160 mm
Z-axis
420 mm
Spindle taper
ASA 5
Spindle bore
80 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
4000 rpm
Spindle motor power
26 kW
Tailstock
no
Bar feeder
no
Weight
6900 kg
good
visible
Datasheet
Biglia B470 YSM
20/04/2026

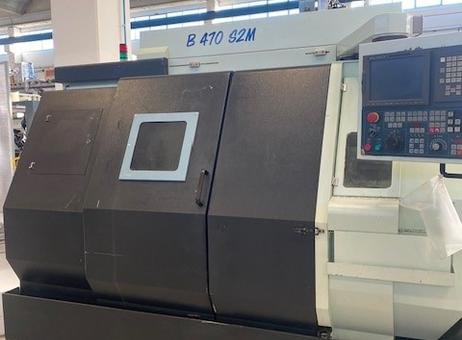

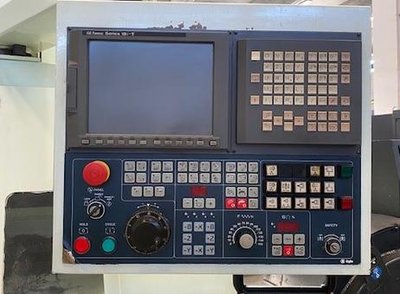

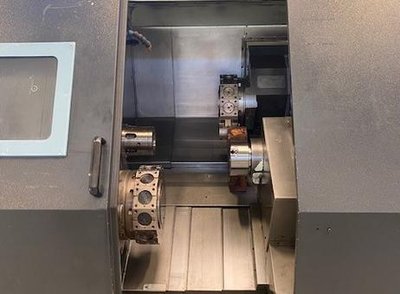

The BIGLIA B 470 S2M CNC Lathe, manufactured in 2000, is a robust and precise machine designed for metal turning operations. It features a maximum turning diameter of 200 mm and a turning length of 250 mm, suitable for a variety of workpieces. The machine is equipped with two spindles: the first spindle has a 5 ASA spindle nose with a bar capacity of 68 mm, driven by a 26 kW motor and capable of reaching speeds up to 4000 rpm. It also includes C-axis functionality with an accuracy of 0.001 degrees, allowing for complex and precise machining tasks. The second spindle also features a 5 ASA spindle nose with a bar capacity of 43 mm, powered by a 7.5 kW motor and operating at speeds up to 4000 rpm, enhancing the machine's versatility. This lathe is fitted with two turrets, each having 12 tool stations that are motorized, providing extensive tooling options for diverse machining needs. The machine weighs approximately 6900 kg, reflecting its sturdy construction. The CNC lathe includes a control panel mounted on the right side, featuring a screen and various buttons for operation. The machine is housed within closed black protective doors with a small window, contributing to operational safety. Visual inspection indicates the machine is clean and well-maintained with no visible damage. It is supplied complete with a chuck and chip conveyor, as well as fixed and motorized tool holders. Buyers are advised to verify all details during an on-site visit to ensure the machine meets their specific requirements. Machine complete with chuck, chip conveyor, fixed and motorized tool holders. Machine completely overhauled as new
CAPACITY
Turnable Ø: 200 mm
Turning length: 250 mm
1ST SPINDLE
Spindle connection: 5 ASA
Bar capacity: 68 mm
Rotation speed: 4000 rpm
Engine power: 26 Kw
C axis: 0.001 degrees
2ND SPINDLE
Spindle connection: 5 ASA
Bar capacity: 43 mm
Rotation speed: 4000 rpm
Engine power: 7.5 kW

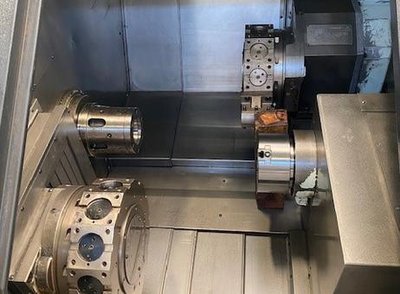

1ST TURRET
Tool stations: 12
Motorized: 12
II° TURRET
Tool stations: 12
Motorized: 12
SPECIFIC PROPERTIES
Machine weight: 6900 kg
this extra information is standard for this model. Please always double-check the details during a visit
The BIGLIA B 470 S2M CNC Lathe, crafted in 2000, is a versatile machining solution known for its precision and efficiency in metal turning operations. With a turning diameter of 200 mm and a maximum turning length of 250 mm, this lathe accommodates a diverse range of workpieces. The 1st spindle, equipped with a 5 ASA spindle nose and a substantial 68 mm bar capacity, operates at a spindle speed of 4000 rpm, driven by a robust 26 kW motor. The inclusion of C-axis functionality at 0.001 degrees enhances the lathe's capability for intricate and precise machining. The 2nd spindle, also featuring a 5 ASA spindle nose, has a 43 mm bar capacity, and operates at the same spindle speed of 4000 rpm. Driven by a 7.5 kW motor, this spindle contributes to the lathe's versatility in handling various materials and applications. The B 470 S2M is equipped with two turrets, each boasting 12 tool stations and power turrets, providing a wide array of tooling options for enhanced machining flexibility. With its robust construction and comprehensive features, the BIGLIA B 470 S2M CNC Lathe remains a reliable choice for precision turning in metalworking industries. 2008
58
