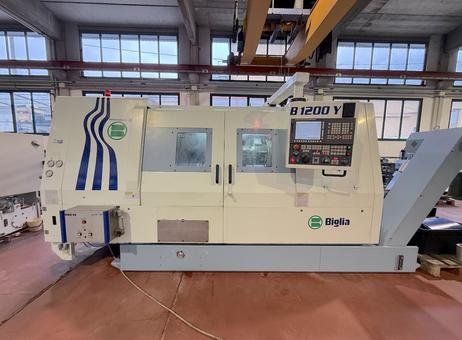

BIGLIA B1200Y CNC lathe

BIGLIA B1200Y CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
BIGLIA
Model
B1200Y
Year
2010
Location
Italy
Category
Lathes - CNC lathes
Product id
P260423064
Buy this machine
Language
Language
CNC струг BIGLIA B1200Y
CNC soustruh BIGLIA B1200Y
BIGLIA B1200Y CNC-drejebænk
BIGLIA B1200Y CNC-Drehmaschine
Τόρνος CNC BIGLIA B1200Y
BIGLIA B1200Y CNC lathe
Torno CNC BIGLIA B1200Y
Tour CNC BIGLIA B1200Y
CNC tokarski stroj BIGLIA B1200Y
BIGLIA B1200Y CNC esztergagép
Tornio CNC BIGLIA B1200Y
BIGLIA B1200Y CNC tekinimo staklės
BIGLIA B1200Y CNC-draaibank
Tokarka CNC BIGLIA B1200Y
Torno CNC BIGLIA B1200Y
Strung CNC BIGLIA B1200Y
BIGLIA B1200Y Токарный станок с ЧПУ
CNC strug BIGLIA B1200Y
BIGLIA B1200Y CNC-svarv
CNC torna BIGLIA B1200Y
Get price & details
+39 030 …
Show phone
Details
About this seller
Specifications
Ø above the bed
700 mm
Type of CNC
fanuc 18itb
X-axis
255 mm
Z-axis
1315 mm
Spindle taper
asa8
Spindle bore
111 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
2400 rpm
Spindle motor power
30 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
5100.0
× 2000.0
× 2100.0
Weight
7250 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
13/05/2026
Show more
Seller's description
WORKING AREA
Tool capacity: 102.5 mm
Max. workpiece diameter (re-machining): 410 mm
Tool section: 1330 mm
Max. turnable diameter on the bed: 700 mm
CNC
Fanuc 18i-TB CNC
Notes: Manual Guide, SBS, Renishaw RP3
MAIN SPINDLE
Max. spindle speed 2400 rpm
Spindle nose ASA8”
Spindle bore 111 mm
Inner bearing diameter 150 mm
Self-centering diameter 315 mm (three jaws, bore 122 mm)
Max. power 30 kW
Max. torque 776 Nm
C-axis resolution 0.001°
C-axis speed 100 rpm
TAILSTOCK
Sleeve diameter 115 mm
Sleeve stroke 150 mm
CM5 taper
B-axis stroke 1200 mm
TURRET 1
Number of positions 12
Rotation time (1 pos) 0.15 sec.
Number of motorized positions 12
Motorized tool speed 4000 rpm
Motorized tool power 5.5 kW
X1 axis travel 255 mm
X1 axis rapid traverse 20 m/min
Z1 axis travel 1315 mm
Z1 axis rapid traverse 24 m/min
Y1 axis travel 110 (+60/-50) mm
Y1 axis rapid traverse 7.5 m/min
Motorized tool torque 70 Nm
EXTRA
Morari ø250mm "follow-up" hydraulic tailstock carriage
Total machine weight 7250 kg
Machine dimensions 5100x2000x2100 mm
Chip conveyor yes
SMW Autoblok 315 mm self-centering device - complete pneumatic system to control a pneumatic self-centering device Complete pneumatic system to control a pneumatic self-centering device with cylinder fully extended. Always use functions M24-M25 with the cylinder fully extended. Always use functions M24-M25 by enabling the pneumatic system with Keep relay (see Electrical Manual 1)
Motorized tool holders available
Fixed tool holders available
Hydraulic tailstock Morari hydraulic tailstock ø0-250mm
Notes: provision for bar feeder, automatic workpiece unloader ø100x150mm, 18-bar pump with filter,
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
