Biglia B301 SM CNC lathe

Biglia B301 SM CNC lathe
Top seller
View price
Biglia
B301 SM
2006
Germany
Lathes - CNC lathes
P260331587
+34 679 …
Turning length
380 mm
Turning Ø
220 mm
Ø above the bed
200 mm
Ø above transversing slide
42 mm
Length between centers
380 mm
Type of CNC
X-axis
155 mm
Z-axis
389 mm
Spindle taper
Spindle bore
52 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
504 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
Weight
3760 kg
as-is, where-is
Datasheet
Biglia B301 SM
21/05/2026

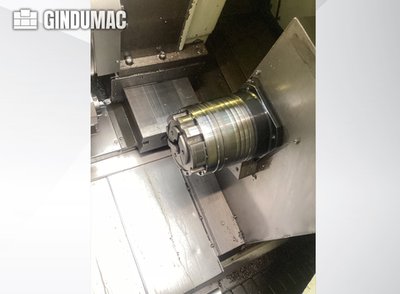

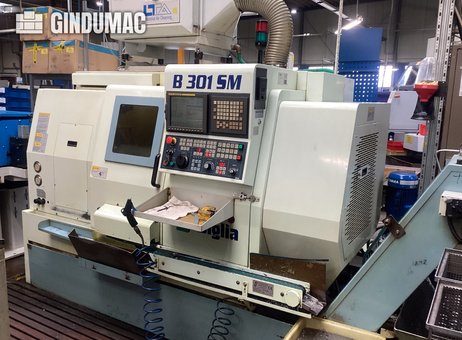

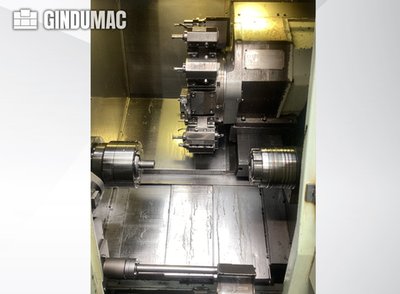

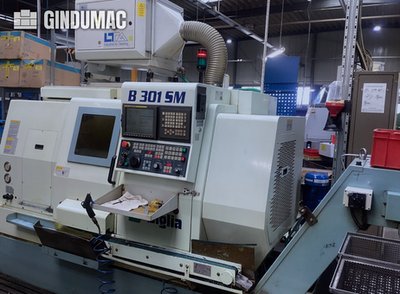

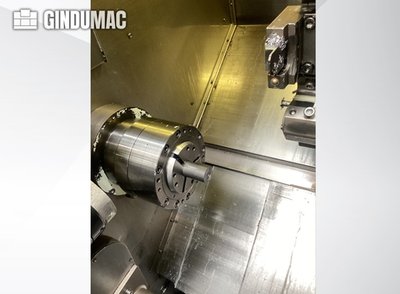

This Biglia B301 SM CNC lathe, manufactured in 2006, is a 3-axis horizontal turning machine designed for precise machining tasks. The machine weighs approximately 3760 kg and features a robust construction suitable for industrial use. It offers an X-axis travel of 155 mm and a Z-axis travel of 389 mm, allowing for a variety of turning operations within these ranges. The lathe operates with a spindle speed of up to 504 rpm. It is equipped with both a main spindle and a counter spindle, each fitted with a Hainbuch collet chuck, facilitating secure and accurate workholding. The machine also includes driven tools and a tool turret with multiple tool holders installed, enhancing its capability for complex machining processes. The control panel is comprehensive, featuring multiple buttons, knobs, and a digital display screen that shows operational data such as parts count, operating time, cycle time, and other relevant statistics. The operating time recorded on the machine is approximately 16,928 hours, with a workpiece counter of 30 parts. Additional equipment includes an LTA dust extraction system and a chip conveyor attached to the right side, aiding in chip removal and maintaining a cleaner working environment during operation. The machine is connected to a 400 V, 3-phase, 40 A, 50 Hz electrical supply. The exterior of the lathe shows minor signs of wear consistent with regular use but appears well-maintained and clean. Interior metal surfaces exhibit light wear and some machining residue, indicating active use but no significant damage. An attached air hose with coiled blue tubing is also present, which may be useful for cleaning or other maintenance tasks. Please note that the loading magazine, tool holders, and collets are not included with this machine. Overall, the Biglia B301 SM is a versatile and reliable CNC lathe suitable for various turning applications requiring precision and efficiency. This 3-axis Biglia B301 SM was manufactured in 2006. It features a robust Hainbuch collet chuck for both the main and counter spindle, ensuring precision in your turning operations. The machine has a weight of 3760 kg and operates at a spindle speed of 504 RPM. If you are looking to get high-quality turning capabilities, consider the Biglia B301 SM horizontal turning machine we have for sale. Contact us for further details.Electrical: 400 V, 3 phases, 40 A, 50 Hz
Spindle speed (DRN F): 504
Workpiece counter: 30
Operating time: 16,928 h
Additional equipment
Hainbuch collet chuck for main spindle
Hainbuch collet chuck for counter spindle
LTA dust extraction system
Not included: loading magazine, tool holders, collets
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 3760 kg
Number of Axes: 3
X-axis Travel: 155 mm
Z-axis Travel: 389 mm
