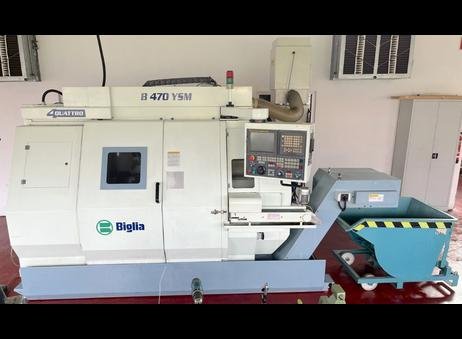

BIGLIA B470 YSM cnc lathe

BIGLIA B470 YSM cnc lathe
Verified seller
Price on request
View price
Manufacturer
BIGLIA
Model
B470 YSM
Year
Location
Italy
Category
Lathes - CNC lathes
Product id
P230822089
Buy this machine
Language
Language
BIGLIA B470 YSM
Soustruh cnc BIGLIA B470 YSM
BIGLIA B470 YSM
BIGLIA B470 YSM Drehmaschine CNC
BIGLIA B470 YSM
BIGLIA B470 YSM cnc lathe
Torno cnc BIGLIA B470 YSM
Tour cnc BIGLIA B470 YSM
BIGLIA B470 YSM
BIGLIA B470 YSM
Tornio cnc BIGLIA B470 YSM
BIGLIA B470 YSM
BIGLIA B470 YSM
Tokarka CNC BIGLIA B470 YSM
BIGLIA B470 YSM
BIGLIA B470 YSM
BIGLIA B470 YSM Токарный станок с ЧПУ
BIGLIA B470 YSM
BIGLIA B470 YSM
Cnc torna BIGLIA B470 YSM
Get price & details
+39 030 …
Show phone
Details
About this seller
Specifications
Turning length
250 mm
Turning Ø
200 mm
Ø above the bed
200 mm
Type of CNC
Fanuc 18i-TB
X-axis
160 mm
Z-axis
240 mm
Spindle taper
ASA6
Spindle bore
80 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
4000 rpm
Spindle motor power
26 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4150.0
× 2100.0
× 2200.0
Weight
6900 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Datasheet
Biglia B470 YSM
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
The Biglia B470 YSM is a CNC lathe machine designed for precision turning operations. It features dual turrets, each equipped with 12 tool positions, allowing for versatile machining capabilities. The main spindle offers a maximum rotation speed of 4000 rpm with a spindle motor power of 26 kW, supporting a spindle nose ASA6 and an 80 mm spindle hole with a 68 mm bar passage. The counter spindle also achieves 4000 rpm, with an 11 kW motor, ASA5 spindle nose, and a 55 mm spindle hole that accommodates a 45 mm bar passage. Both spindles provide a C-axis resolution of 0.001°, enhancing machining accuracy.
The machine supports a maximum workable diameter from the bar of 68 mm and a turning length of up to 250 mm. The X-axis travel is 160 mm, while the Z-axis travel extends to 240 mm. Additional axis strokes include a Y1 axis stroke of 100 mm with a rapid traverse of 6 m/min, and rapid axis speeds ranging from 12 to 30 m/min depending on the axis. Each turret's rotation time per position is 0.15 seconds, and motorized driven tools operate at speeds up to 4000 rpm with a power of 3.7 kW.
Physically, the machine measures 4150 mm in length, 2100 mm in width, and 2200 mm in height, with a total weight of 6900 kg. It is equipped with a CNC control system, specifically the Fanuc 18i-TB, facilitating advanced programming and operation.

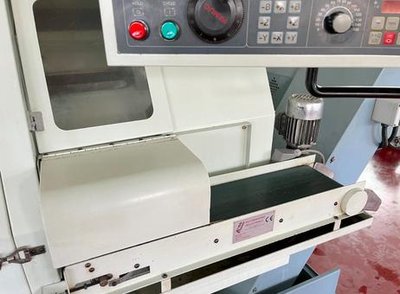

The machine is observed to be clean and well-maintained, showing no visible damage. It includes a chip conveyor mounted on the right side to manage machining debris efficiently. The control panel is also located on the right side, featuring a display and multiple buttons for operational control. An emergency stop light indicator is mounted on top of the machine, enhancing safety during operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Capacity: Ø67.5x240 mm
Working range Max workable diameter from bar: 68 mm
Max workable diameter from recovery: Vaulting 520mm / Turning 240 mm mm
Max workable length: 250 mm
CNC CNC: Fanuc 18i-TB
Main spindle Max rotation speed: 4000 rpm
Spindle nose: ASA6
Spindle hole: 80 (bar passage 68mm) mm
Bearing Inner Diameter: 110mm
Max power: 26 kW
C-axis resolution: 0.001°
Counterspindle Max rotation speed: 4000 rpm
Spindle nose: ASA5â€
Spindle hole: 55 (bar passage 45mm) mm
Bearing Inner Diameter: 80mm
Max power: 11 kW
C-axis resolution: 0.001°
B-axis rapid: 30 m/min
Turret 2 Number of positions: 12
Rotation time (1 pos): 0.15 sec.
Number of motorized positions: 12
Driven tools speed: 4000 rpm
Driven tools power: 3.7 kW
Axis travel x2: 160 mm
Rapid axis x2: 12 m/min
Z2 axis stroke: 240mm
Z2 axis rapid: 20 m/min
Turret 1 Number of positions: 12
Rotation time (1 pos): 0.15 sec.
Number of motorized positions: 12
Driven tools speed: 4000 rpm
Driven tools power: 3.7 kW
Axis travel x1: 160 mm
Rapid axis x1: 20 m/min
Z1 axis travel: 390 mm
Z1 axis rapid: 24 m/min
Y1 axis stroke: 100 mm
Y-axis rapid traverse1: 6 m/min
Total machine weight: 6900 Kg
Machine dimensions: 4150x2100x2200 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Frequently Asked Questions (AI-Generated)
What type of tools are included with this BIGLIA B470 YSM?
This BIGLIA B470 YSM cnc lathe is equipped with two axial and two radial motorized tools, plus fixed tools.
Does this BIGLIA B470 YSM have a Y-axis on the upper turret?
This BIGLIA B470 YSM cnc lathe features a Y-axis only on the upper turret.
Is a bar feeder included with this cnc lathe?
This cnc lathe does not include a bar feeder.
Is this BIGLIA B470 YSM currently available for purchase?
This BIGLIA B470 YSM cnc lathe is available for sale, subject to prior sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
