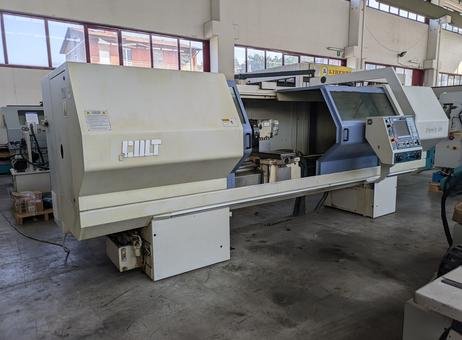

CMT Ursus TC 600 x 2000 cnc lathe

CMT Ursus TC 600 x 2000 cnc lathe
Make an offer
CMT Ursus
TC 600 x 2000
2005
Italy
Lathes - CNC lathes
P240906062
+39 0 75…
Ø above the bed
600 mm
Ø above transversing slide
365 mm
Length between centers
2000 mm
Type of CNC
Fagor
X-axis
250 mm
Z-axis
2000 mm
Spindle taper
Morse cone 5
Spindle bore
105 mm
Number of tools on turret
8
Turning speed
1800 rpm
Tailstock
no
Bar feeder
no
good
visible
21/04/2026

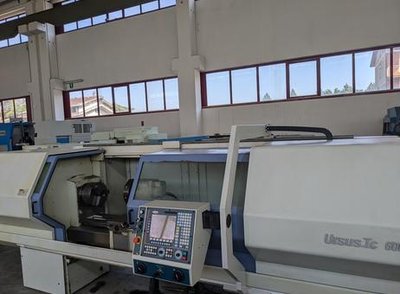

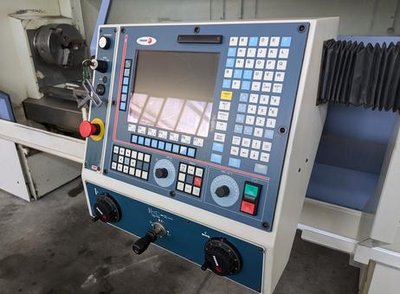

This listing is for a CMT Ursus TC 600 x 2000 CNC lathe, manufactured in 2005. It features a robust design suitable for a variety of turning applications with a maximum diameter capacity of 600 mm above the bed and 365 mm above the transversing slide. The lathe has a length between centers of 2000 mm, providing ample working space for long workpieces. The X-axis has a stroke of 250 mm and the Z-axis a stroke of 2000 mm, allowing precise control over tool movement. The spindle has a bore diameter of 105 mm and offers a turning speed of up to 1800 rpm. The machine is equipped with an 8-station turret for tool holding, facilitating efficient multi-tool operations. The spindle power ranges between 9 and 13 kW with two speed ranges that can be changed automatically. Axis movements are driven by ball screws, with rapid movements of 5 m/min on both the X and Z axes. The lathe also provides continuous thrusts of 750 DaN on the Z-axis and 250 DaN on the X-axis. Control of the lathe is managed via a CNC system from Fagor, featuring a control panel with multiple buttons, knobs, and a display screen. The panel includes an emergency stop button for safety. The machine is housed in a large enclosure with protective casing, including a sliding door on the bed area for access. The casing shows some signs of discoloration and dirt accumulation, while the control panel appears clean and well-maintained. The machine comes complete with instruction books and CE certification, ensuring compliance with safety standards. This lathe is suitable for precision turning tasks requiring reliable CNC control and substantial working capacity. Chip removal
Complete with instruction books and CE certification
CNC: FAGOR
Diameter Allowed On the Table: 600 mm
Diameter Allowed On Slide: 365 mm
X-Axis Stroke: 250
Spindle Speed: 1800 rpm
Spindle Bore: 105 mm
Nominal Distance Between Drills: 2000 mm
Longitudinal Travel Z Axis: 2000 mm
Spindle Nose: 8 "
Spindle Power: 9/13 kw
Spindle Speed Ranges: N.2 with automatic change
Axis Movement: ball screws
Z-axis Rapid Movement: m/m 5
X-axis Rapid Movement: m/m 5
Z-axis Continuous Thrust: DaN 750
X-axis Continuous Thrust: DaN 250
Manual Sleeve Stroke: mm 220
Sleeve Diameter: mm 68
Sleeve Morse Cone: 5

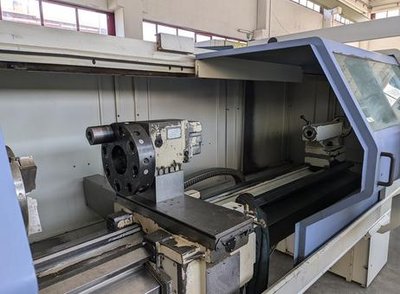

Electric Turret: No. 8 stations
