Comev Leonardo CM 300x2000 CNC lathe

Comev Leonardo CM 300x2000 CNC lathe
Make an offer
Comev
Leonardo CM 300x2000
2001
Italy
Lathes - CNC lathes
P260323059
+39 05 2…
Ø above the bed
600 mm
Ø above transversing slide
360 mm
Length between centers
2000 mm

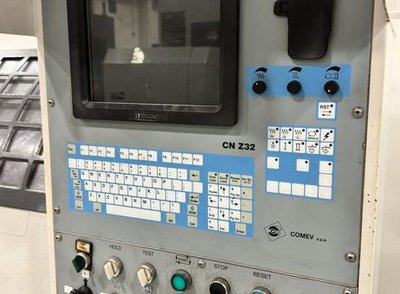

Type of CNC
D.Electron CN-Z32
Spindle taper
Cam Lock 8"
Number of rotating tools
4
Turning speed
2000 rpm
Spindle motor power
18 kW
Tailstock
no
Bar feeder
no
as-is, where-is
yes
Datasheet
Comev Leonardo CM 300x2000
20/04/2026

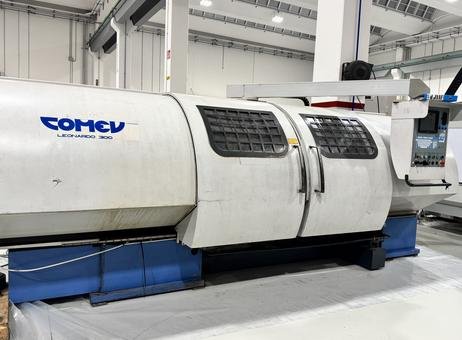

This listing features a Comev Leonardo CM 300x2000 CNC lathe, manufactured in 2001. It is equipped with a D.Electron CN-Z32 CNC control system. The lathe offers a center height of 300 mm and a maximum turning diameter above the bed of 600 mm, with a maximum diameter above the transversing slide of 360 mm. The length between centers is 2000 mm, allowing for machining of relatively long workpieces. The machine includes a spindle with a maximum speed of 2000 rpm and a spindle motor power rated at 18 kW. It has a bar bore diameter of 110 mm and a self-centering diameter of 305 mm. The spindle nose features an 8" Cam Lock. The turret is equipped with 4 electric stations for rotating tools, enabling versatile machining operations. The lathe provides continuous feed capabilities with an X-axis thrust of 400 kgf and a Z-axis thrust of 1200 kgf. Feed rates for both the X and Z axes reach up to 10,000 mm/min, supporting efficient machining cycles. Included accessories are a coolant sump with flushing pump and a tailstock. Documentation such as manuals, electrical diagrams, and a CE Declaration are also provided. The machine has a robust blue base with visible cabling. It is housed within a protective enclosure featuring dual doors with grids for viewing the machining area. The surface of the machine shows signs of wear and dirt marks consistent with use. No claims are made regarding the machine's operational status beyond the provided specifications. CNC Control: D.Electron CN-Z32
Center Height: 300 mm
Max. Rotating Diameter on Bed: Ø 600 mm
Max. Rotating Diameter on Carriage: Ø 360 mm
Center Distance: 2,000 mm
Bar Bore Diameter: Ø 110 mm
Self-centering diameter: Ø 305 mm
Spindle speed: 2,000 rpm

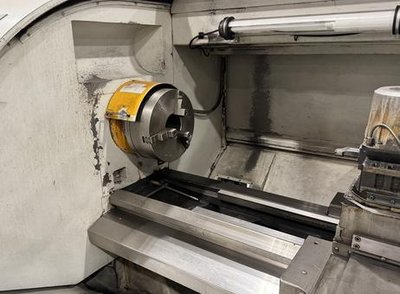

Spindle nose: 8" Cam Lock
Spindle motor power (30 min continuous): 12.5 / 18 kW

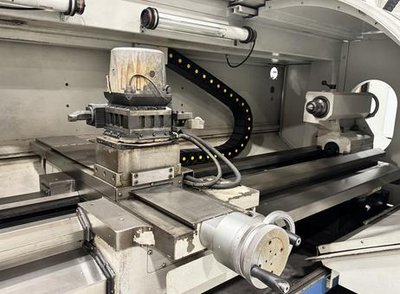

Turret stations: 4 electric stations
Continuous feed, X-axis: 400 kgf
Continuous Z-Axis Thrust: 1,200 kgf
X-Axis Feed Rate: 10,000 mm/min
Z-Axis Feed Rate: 10,000 mm/min
Accessories and Other: Coolant sump with flushing pump - Tailstock - Manuals - Electrical diagrams - CE Declaration
