DOOSAN Puma GT 2100M CNC lathe

DOOSAN Puma GT 2100M CNC lathe
Top seller
View price
DOOSAN
Puma GT 2100M
2017
Netherlands
Lathes - CNC lathes
P260521156
+34 679 …
Turning length
513 mm
Turning Ø
300 mm
Ø above the bed
600 mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
230 mm
Z-axis
580 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
76 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
4500 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
2834.0 × 1628.0 × 1700.0
Weight
3600 kg
as-is, where-is
Datasheet
Doosan Puma 2100M
21/05/2026

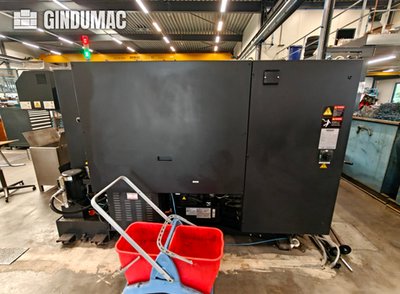

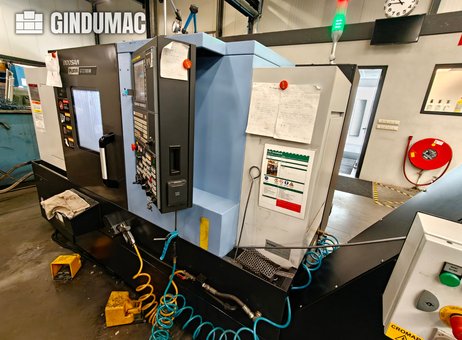

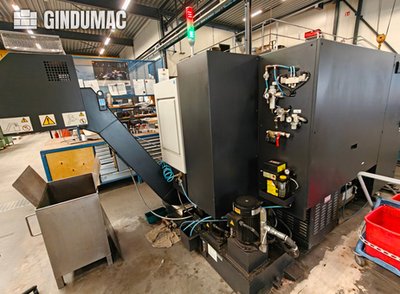

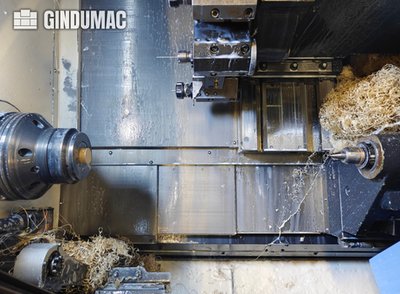

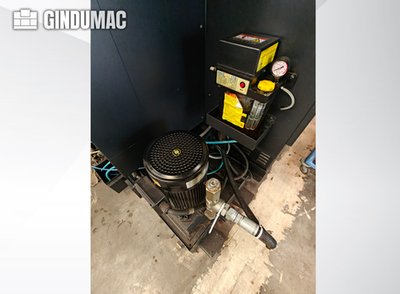

The DOOSAN Puma GT 2100M is a 3-axis CNC lathe machine manufactured in 2017, designed for precision turning operations. This model features a maximum turning diameter of 300 mm and a turning length of 513 mm, making it suitable for medium-sized workpieces. The machine offers an X-axis travel of 230 mm and a Z-axis travel of 580 mm, allowing for versatile machining capabilities. It is equipped with a spindle bore diameter of 76 mm and operates at a spindle speed of up to 4500 RPM. The machine measures 2834 mm in length, 1628 mm in width, and 1700 mm in height, with a total weight of 3600 kg. This lathe is controlled by a FANUC i-series control system, known for its reliability and user-friendly interface. The machine includes a control panel with buttons and a display situated on the front side, facilitating ease of operation. The machining area is enclosed with a door featuring a window, enabling operators to monitor the machining process safely. Additional visible features include yellow foot pedals and coiled air hoses attached to the machine base, which support operational functions. The rear side of the lathe houses hydraulic and pneumatic components, including a hydraulic pump and piping, essential for machine functionality. A metal bin and various tools are positioned near the machine, likely for chip collection and maintenance purposes. The machine and its immediate surroundings appear clean and well-maintained, although some oil or coolant stains are visible on the floor nearby. No additional equipment such as robots, automation systems, or bar feeders are specified with this unit. Tools are excluded from the sale and may be available at an additional cost. Overall, the DOOSAN Puma GT 2100M CNC lathe is a robust and capable machine suitable for precision turning tasks, offering reliable performance with its comprehensive features and solid build. This 3-axis DOOSAN Puma GT 2100M was manufactured in 2017. It features a maximum turning diameter of 300 mm and a turning length of 513 mm. The machine is equipped with 12 tool stations and offers rapid traverse speeds of 24 m/min in the X-axis and 30 m/min in the Z-axis. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma GT 2100M horizontal turning machine we have for sale. Contact us for further details.Swing over bed: 600 mm
Swing over saddle: 390 mm
Recommended turning diameter: 210 mm
Max. turning diameter: 300 mm
Max. turning length: 513 mm
Bar working diameter: 65 mm
Spindle nose: ASA A2-6
Spindle bearing diameter (front): 110 mm
Spindle through-hole diameter: 76 mm
Minimum spindle indexing angle (C-axis): 0.001°
Number of tool stations: 12
OD tool size: 25 mm
Boring bar diameter: 40 mm
Indexing time (1st swivel time): 0.15 s
Rotary tool spindle speed: 5,000 rpm
Rapid traverse (X-axis): 24 m/min
Rapid traverse (Z-axis): 30 m/min
Quill diameter: 80 mm
Quill bore taper (live): MT4
Quill travel: 80 mm
Electric power supply: 30.43 kVA
Additional equipment
None specified (no robots, automation or bar feeder listed)
Tools excluded; available at additional cost
Control Brand: FANUC
Control Model: i-series
Counter Spindle: no
Driven Tools: yes
Machine Height: 1700 mm
Machine Length: 2834 mm
Machine Weight: 3600 kg
Machine Width: 1628 mm
Number of Axes: 3
Spindle Speed: 4500 RPM
X-axis Travel: 230 mm
Z-axis Travel: 580 mm
