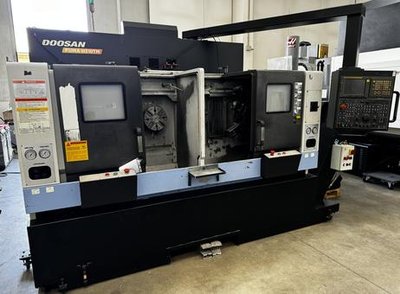

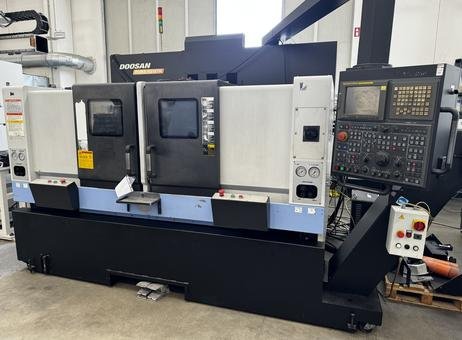

Doosan PUMA H-310/TM CNC lathe

Doosan PUMA H-310/TM CNC lathe
Make an offer
Doosan
PUMA H-310/TM
2008
Italy
Lathes - CNC lathes
P260323062
+39 05 2…
Turning length
230 mm
Turning Ø
410 mm
Length between centers
500 mm
Type of CNC
FANUC Series 18i-TB
X-axis
210 mm
Z-axis
230 mm
Spindle taper
ASA A2-8
Number of turrets
2
Number of tools on turret
12
Turning speed
3500 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
as-is, where-is
yes
Datasheet
Doosan PUMA H-310/TM
20/04/2026
This Doosan PUMA H-310/TM CNC lathe, manufactured in 2008, is designed for precision turning tasks with a maximum turning diameter of 410 mm and a turning length of 230 mm. It features a length between centers of 500 mm, allowing for versatile machining of workpieces. The machine is equipped with two turrets, each capable of holding up to 12 tools, enhancing its flexibility for complex operations. The lathe operates with a spindle speed of up to 3500 rpm, powered by a 15 kW spindle motor, providing robust performance for various machining needs. The X-axis and Z-axis travels are 210 mm and 230 mm respectively, with high feed rates of 24,000 mm/min on both axes, enabling efficient and precise movements. Control is managed via a FANUC Series 18i-TB CNC system, known for its reliability and user-friendly interface. The machine includes Heidenhain optical encoders on the X1, X2, Z1, and Z2 axes, which contribute to accurate positioning and repeatability. The lathe comes with several accessories to support operation and maintenance, including a chip conveyor, a coolant collection tank with a flushing pump, and an external high-pressure pump. Various motorized and fixed tool holders are also included, expanding tooling options. From the images, the machine features two windowed doors providing access to the working area, and a control panel with multiple buttons and a display screen located on the right side. Emergency stop buttons are visible on the machine, ensuring operator safety. The exterior shows some signs of wear and dirt marks, and the interior working area has some dirt and oil stains, indicative of prior use. Warning and instruction labels are present on the left door, supporting safe operation. Overall, this Doosan PUMA H-310/TM CNC lathe offers a combination of power, precision, and versatility, suitable for various turning applications in an industrial setting. CNC Lathes
MACHINE EQUIPPED WITH HEIDENHAIN OPTICAL ENCODERS FOR AXES X1/X2/Z1/Z2

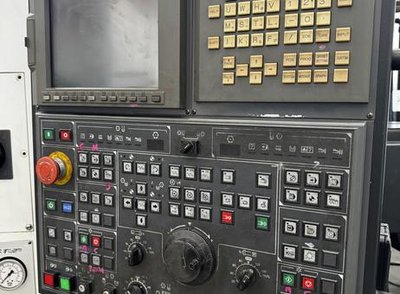

CNC Control: FANUC Series 18i-TB
Max. Workpiece Diameter: Ø 410 mm
Max. Workpiece Length: 230 mm
Recommended Workpiece Diameter: Ø 255 mm
Max. Distance Between Spindle Centers: 500 mm
X-Axis Travel: 210 mm
Z-Axis Travel: 230 mm
X-Axis Feed Rate: 24,000 mm/min
Z-Axis Feed Rate: 24,000 mm/min
Self-Centering Chuck Diameter: Ø 250 mm
Spindle Taper: ASA A2-8
Spindle Speed: 3,500 rpm
Spindle Motor Power (30 min continuous): 15/18.5 kW

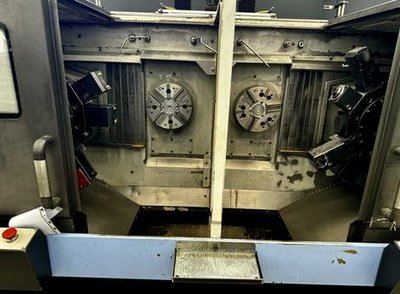

Number of Turrets: 2 Turrets
Turrets Stations: 12 Stations
Motorized Speed: 3,000 rpm
Motorized Motor Power (30 min continuous): 4 kW
Turning and Boring Tool Dimensions: 25x25/ Ø40 mm
Accessories: Chip conveyor - Coolant collection tank with flushing pump - External high-pressure pump - Various motorized and fixed tool holders - Manuals - Electrical diagrams - CE Declaration
