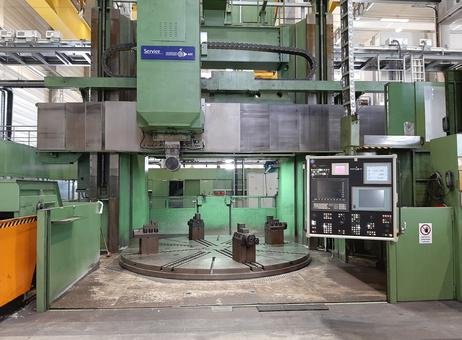

DORRIES VC4600-450 vertical turret lathe with cnc
39.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | Siemens |
| Baujahr | 1996 |
| Manufacturer | DORRIES |
| Model | VC4600-450 |
| Year | 1996 |
| Location | Italy |
| Category | Lathes - CNC vertical turret lathes |
| Plate diameter | 2100 mm |
| Working height | 1700 mm |
| CNC type | Fanuc 18iTB |
| Max piece weight | kg |
| Rotation speed | rpm |
| Overhauled | no |
| Year of overhauling | 2020 |
| Length x width x height | 10200.0 × 16800.0 × 11300.0 |
| Weight | 190000 kg |
| state | good |
| At local norms | yes |
| status | visible |
| Last availability date | 10/09/2026 |
| Product id | P211005052 |
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 277 |
| Last activity | Sept. 10, 2026 |
| Engine Power | kW |
Beschreibung
Capacity: ø4600x4500 mm
Double upright: Yes
A moving crossbar: Yes
Year of construction: 1996
Year of revision: 2011
FIELD OF WORK

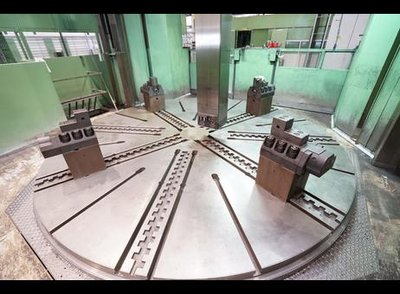

Platform diameter: 4500 mm
Max workpiece diameter: 4600 mm
Max turning diameter: 4600 mm
Max turning height: 4500 mm
Max workpiece load : 100000 Kg
CNC

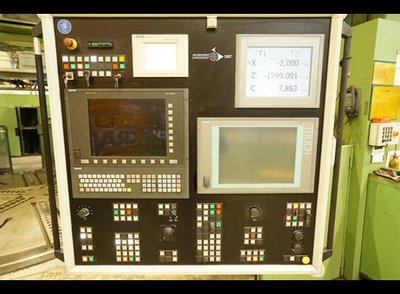

Cnc: SIEMENS 840DSL
MAIN SPINDLE
Platform diameter: 4500 mm
Max rotation speed: 0.45-80 rpm
Capacity: 100.000 Kg
Max torque: 125000 Nm
C axis resolution: 0.001 °
CROSSBAR
Vertical travel (w): 3200 mm

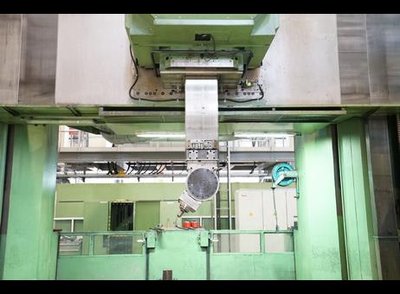

WAGON
Vertical travel (z): 2500 mm
Transversal travel (x): 5000 (+/- 2500) mm
ATC
Stations: 12
HEADS WAREHOUSE
Turning heads supplied: 2
Pre-milling heads supplied: 1
Feeler probes: 1
Total installed power: 257KVA Kw
Total machine weight: 190000 Kg
Machine dimensions: 10200x16800x11300 mm
Chip conveyor : yes
Workpiece probe: yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Double upright: Yes
A moving crossbar: Yes
Year of construction: 1996
Year of revision: 2011
FIELD OF WORK
Platform diameter: 4500 mm
Max workpiece diameter: 4600 mm
Max turning diameter: 4600 mm
Max turning height: 4500 mm
Max workpiece load : 100000 Kg
CNC
Cnc: SIEMENS 840DSL
MAIN SPINDLE
Platform diameter: 4500 mm
Max rotation speed: 0.45-80 rpm
Capacity: 100.000 Kg
Max torque: 125000 Nm
C axis resolution: 0.001 °
CROSSBAR
Vertical travel (w): 3200 mm
WAGON
Vertical travel (z): 2500 mm
Transversal travel (x): 5000 (+/- 2500) mm
ATC
Stations: 12
HEADS WAREHOUSE
Turning heads supplied: 2
Pre-milling heads supplied: 1
Feeler probes: 1
Total installed power: 257KVA Kw
Total machine weight: 190000 Kg
Machine dimensions: 10200x16800x11300 mm
Chip conveyor : yes
Workpiece probe: yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
