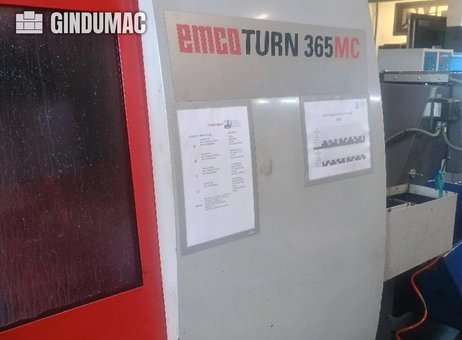

EMCO Turn 365 MC CNC lathe
34.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | Siemens |
| Baujahr | 2015 |
| Manufacturer | EMCO |
| Model | Turn 365 MC |
| Year | 1999 |
| Location | Austria |
| Category | Lathes - CNC lathes |
| Turning length | 550 mm |
| Turning Ø | 65 mm |
| Ø above the bed | 610 mm |
| Ø above transversing slide | 80 mm |
| Length between centers | 683.3 mm |
| X-axis | 260 mm |
| Z-axis | 610 mm |
| Max workpiece weight | 400 kg |
| Spindle bore | 65 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 29 kW |
| Tailstock | no |
| Bar feeder | yes |
| Length x width x height | 3000.0 × 1910.0 × 1872.0 |
| Weight | 4000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Emco Turn 365 MC |
| Last availability date | 10/09/2026 |
| Product id | P260820088 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Type of CNC | Siemens 840 D |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | VDI 30 |
| Number of tools on turret | 12 |
Beschreibung
Horizontal turning machine manufactured in 1999. This EMCO EmcoTurn 365 MC features a maximum turning diameter of 310 mm and a turning length of up to 610 mm. It includes a powerful main spindle speed range of up to 5000 rpm and a tool holder with 12 powered stations. If you are looking to get high-quality turning capabilities, consider the EMCO EmcoTurn 365 MC machine we have for sale. Contact us for further details.- Working Hours: 46644 h
- Max. turning diameter: 310 mm (overall diameter over bed up to 600 mm)
- Max. turning length / workpiece length: 520 mm to 610 mm
- Max. bar capacity: 45 mm
- Main Spindle Speed Range: up to 4200–5000 rpm
- Spindle Nose: A6
- Spindle Bore: 65 mm
- Voltage / Frequency: 400V~ 3/PE 50/60Hz
- Maximum Current (Imax): 59 A
- Machine Current (IM): 27 A
- Short Circuit Current (IK): 6 kA
- Number of Tool Stations: 12 stations (all powered)
- Speed of Driven Tools: up to 5000 rpm
- Power of Driven Tools: approx. 5 kW
- Control Unit: Siemens

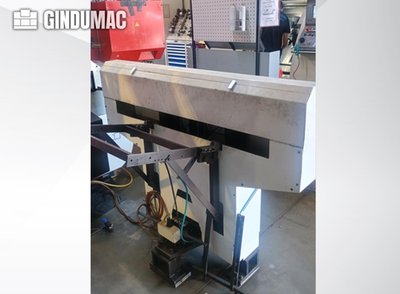

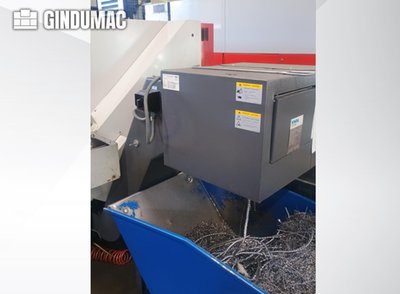

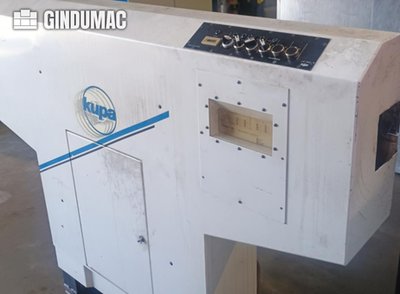

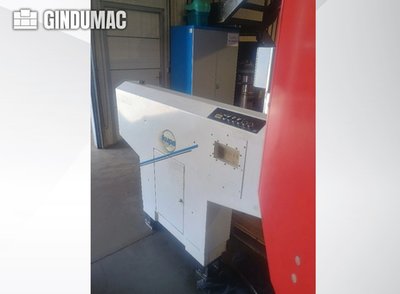

- Included Accessories / Equipment: Kupa Bar Feeder, Knoll Coolant Tank / Filter System (Type 240 S-1, Year 2015), 2 pcs. Chucks, Reduction Tubes / Sleeves, Manuals
Control Brand: SIEMENS
Counter Spindle: yes
Driven Tools: yes
Machine Height: 1872 mm
Machine Length: 3000 mm
Machine Weight: 4000 kg
Machine Width: 1910 mm
Number of Axes: 3
Tool Stations: 12
Spindle Power: 18 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 30
X-axis Travel: 210 mm
Z-axis Travel: 610 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
