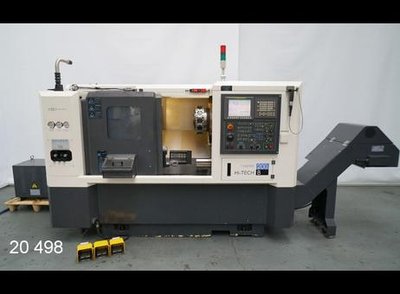

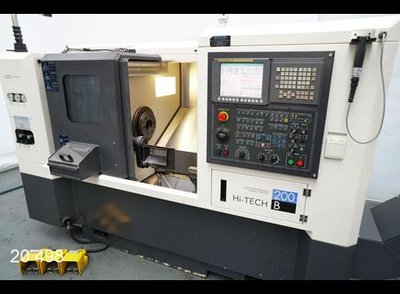

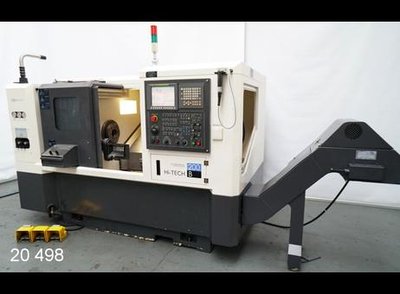

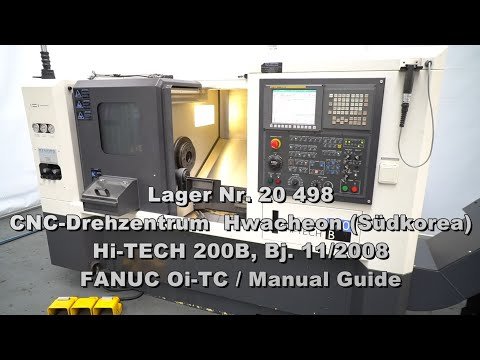

HWACHEON Hi-Tech 200 B I cnc lathe

Description:
- Machine ON: 14,494 h
- Control: FANUC Oi-TC
- Machine with C-axis and
turret for driven tools
(no driven tools in
accessories available
- WZ measuring arm
- Parts collection tray
- Collet chuck
- 3-jaw chuck Ø 250 mm
- Hollow clamping cylinder
- Automatic sliding door
- Chip conveyor
Turning diameter 210 / 350 mm
Turning length 400 mm

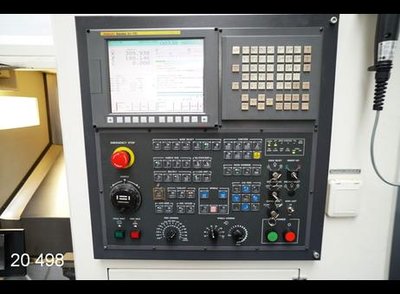

Control Fanuc 0i-TC
Swing diameter 500 mm
Travel - x 195 mm
Travel - z 430 mm
Spindle speed: 3500 rpm
Spindle bore 75 mm
Bar passage 51 mm
C-axis 0.001 °
Revolver head 12 pos. Mounting cone in tailstock quill MK 4
Tailstock stroke 100 mm
Quill diameter 80 mm
Rapid traverse X-axis 30 m/min
Rapid traverse Z-axis 30 m/min
Drive power - spindle motor 11 / 15 kW
Operating voltage 400 V
Total power requirement 30 kVA
Machine weight approx. 4.2 t
Space requirement approx. 2.70 x 1.90 x 2.10 m
Chip conveyor 2.80 x 0.60 x 1.30 m
Transformer 0.60 x 0.45 x 0.55 m
