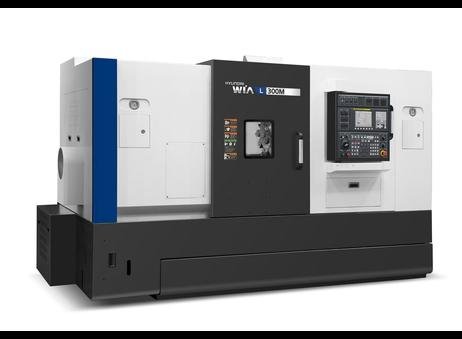

Hyundai WIA L300MC CNC lathe

Hyundai WIA L300MC CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
Hyundai WIA
Model
L300MC
Year
Location
Italy
Category
Lathes - CNC lathes
Product id
P260324068
Buy this machine
Language
Language
CNC струг Hyundai WIA L300MC
CNC soustruh Hyundai WIA L300MC
Hyundai WIA L300MC CNC-drejebænk
Hyundai WIA L300MC CNC-Drehmaschine
Τόρνος CNC Hyundai WIA L300MC
Hyundai WIA L300MC CNC lathe
Torno CNC Hyundai WIA L300MC
Tour CNC Hyundai WIA L300MC
CNC tokarski stroj Hyundai WIA L300MC
Hyundai WIA L300MC CNC esztergagép
Tornio CNC Hyundai WIA L300MC
Hyundai WIA L300MC CNC tekinimo staklės
Hyundai WIA L300MC CNC-draaibank
Tokarka CNC Hyundai WIA L300MC
Torno CNC Hyundai WIA L300MC
Strung CNC Hyundai WIA L300MC
Hyundai WIA L300MC Токарный станок с ЧПУ
CNC strug Hyundai WIA L300MC
Hyundai WIA L300MC CNC-svarv
CNC torna Hyundai WIA L300MC
Get price & details
+39 05 2…
Show phone
Details
About this seller
Specifications
Turning length
600 mm
Turning Ø
500 mm
Ø above the bed
750 mm
Ø above transversing slide
480 mm
Type of CNC
FANUC 0i-MF PLUS
X-axis
335 mm
Z-axis
750 mm
Spindle taper
ASA-8
Spindle bore
90 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
3000 rpm
Spindle motor power
18.5 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
new
At local norms
---------
status
Datasheet
Hyundai Wia L300C
Last availability date
20/04/2026
Show more
Automatic description (AI-Generated)
This Hyundai WIA L300MC CNC lathe is designed for precision turning with a maximum turning length of 600 mm and a maximum turning diameter of 500 mm. It features a robust spindle with a bore diameter of 90 mm, allowing for bar stock machining. The machine offers a maximum swing of 750 mm over the bed and 480 mm over the carriage, accommodating a variety of part sizes. The X and Z axes have travels of 335 mm and 750 mm respectively, providing ample machining range.

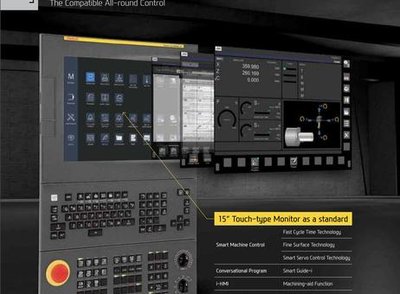

Equipped with a FANUC 0i-MF PLUS control system, this lathe includes a 15-inch touch-type monitor and supports up to 1000 registerable programs with 2MB program storage. The spindle motor delivers 18.5 kW of continuous power, with a spindle speed reaching up to 3000 RPM. The spindle chuck diameter measures 305 mm, and the spindle nose is ASA-8.
The machine is fitted with a BMT-65 turret featuring 12 tool positions, all capable of live tooling with speeds up to 4000 RPM. Tool dimensions supported include 25x25 mm for turning and 50 mm diameter for boring tools. Feed rates are up to 20,000 mm/min on the X axis and 24,000 mm/min on the Z axis. The tailstock includes a quill diameter of 100 mm with MT-4 taper and offers 120 mm quill travel.
Additional accessories include a chip conveyor, coolant tank with a 20-bar pressure pump, an automatic tool presetter by RENISHAW, an automatic parts catcher, and a bar feeder interface. The machine is enclosed with a door featuring a manual handle and pressure gauges on both sides, enhancing operational safety and monitoring. The spindle assembly incorporates a ribbed housing designed for effective heat dissipation. Overall, the machine and its tooling appear clean and well-maintained, with smooth surface finishes observed on machined parts.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
CNC Control FANUC 0i-MF PLUS
Max swing over the bench Ø 750 mm
Max swing over the carriage Ø 480 mm
Max turning diameter Ø 500 mm
Max turning length 600 mm
Bar diameter capacity through the spindle Ø 90 mm
X axis travel 335 mm
Z axis travel 750 mm
C axis minimum controlled angle 0.001°
Spindle chuck diameter Ø 305 mm
Spindle speed 3.000 RPM
Spindle nose size ASA-8
Spindle motor power (cont/30 min) 18.5 / 22 kW
Turret type BMT-65 turret with livetools
Turret positions 12 positions
Live-tools speed 4.000 RPM
Turning / boring tool dimensions 25x25 / Ø 50 mm
X axis feedrate 20.000 mm/min
Z axis feedrates 24.000 giri/min
Tailstock quill diameter Ø 100 mm
Tailstock taper size MT-4
Tailstock body travel 750 mm
Tailstock quill travel 120 mm
Accessories Chip-conveyor, coolant tank with 20 bar pressure pump, automatic tool presetter RENISHAW, automatic parts catcher hand, bar-feeder interface, Manuals, Electrical Diagrams and CE Declaration
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
