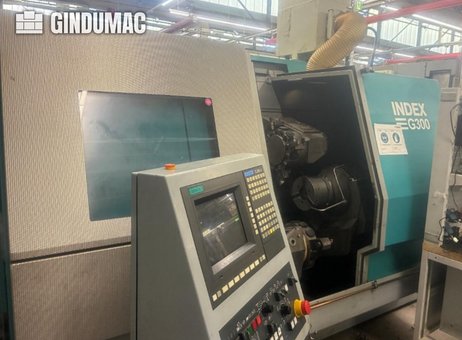

Index G300 CNC lathe

This 3-axis Index G300 was manufactured in 1998 and retrofitted in 2022. It features a maximum nominal turning diameter of 270 mm and a turning length of 710 mm. The machine has a maximum spindle speed of 5,000 RPM and a robust tool system with 12 positions. If you are looking to get high-quality turning capabilities, consider the Index G300 horizontal turning machine we have for sale. Contact us for further details.- RETROFIT IN 2022
- Max. Nominal Turning Diameter: 270 mm
- Turning Length: 710 mm
- Max. Swing Diameter: 590 mm
- Machine Weight: approx. 6,550 kg (Cabinet weight: 710 kg)
- Floor Space: approx. 8/10 m²
- Spindle Collet Clearance: 65 mm
- Spindle Diameter in Front Bearing: 110 mm
- Spindle Nose: ISO 702/1 Size 6
- Max. Torque (100%): 275 Nm
- Tailstock: Electrically movable
- Distance Between Centers: 740 mm
- Max. Pressing Force (electric): 10,000 N
- Compound Slide 1 XYZ (top) Travel (X-axis): 215 mm
- Compound Slide 1 XYZ (top) Travel (Y-axis): 180 mm
- Compound Slide 1 XYZ (top) Travel (Z-axis): 710 / 1,250 mm
- Feed Force (X-axis): 8,000 N
- Feed Force (Y-axis): 16,000 N
- Feed Force (Z-axis): 13,000 N
- Rapid Traverse Speed (X-axis): 20 m/min
- Rapid Traverse Speed (Y-axis): 7.5 m/min
- Rapid Traverse Speed (Z-axis): 20 m/min
- Axis Resolution (X-axis): 0.0005 mm
- Axis Resolution (Y-axis): 0.0005 mm
- Axis Resolution (Z-axis): 0.001 mm
- Number of Tools: 12
- Tool System: DIN 69880 (Ø30x55 mm)
- Complete documentation available
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 6550 kg
Number of Axes: 3
Spindle Power: 43 kW
Spindle Speed: 5000 RPM
X-axis Travel: 215 mm
Z-axis Travel: 710 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
