MAZAK INTEGREX 100 IV-ST cnc lathe

MAZAK INTEGREX 100 IV-ST cnc lathe
Make an offer
MAZAK
INTEGREX 100 IV-ST
2011
Italy
Lathes - CNC lathes
P250708223
+39 3 93…
Turning length
753 mm
Turning Ø
545 mm
Type of CNC
mazatrol matrix
X-axis
410 mm
Z-axis
805 mm
Spindle taper
capto c6
Number of tools on turret
9
Turning speed
5000 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
as-is, where-is
yes
visible
24/04/2026

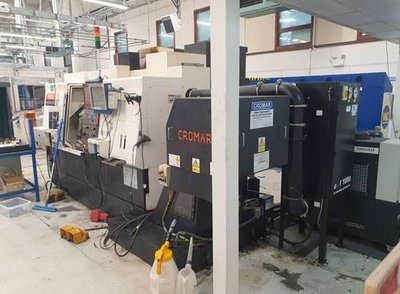

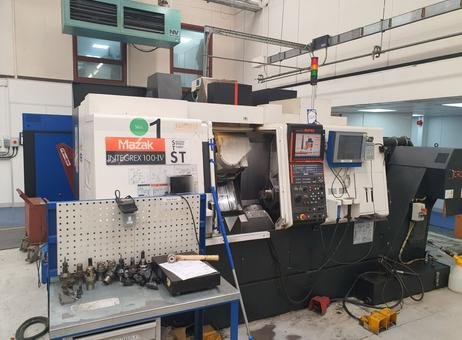

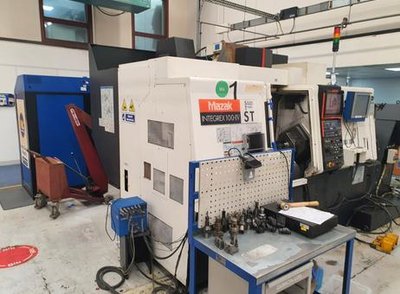

This listing is for a MAZAK INTEGREX 100 IV-ST CNC lathe, manufactured in 2011. It features a Mazatrol Matrix control system, providing advanced CNC capabilities. The machine offers a maximum turning length of 753 mm and a maximum turning diameter of 545 mm, suitable for a wide range of machining tasks. The X-axis and Z-axis strokes measure 410 mm and 805 mm respectively, allowing for precise and flexible workpiece handling. The lathe is equipped with a spindle motor delivering 11 kW of power and a maximum spindle speed of 5,000 rpm. It includes a self-centering counter spindle with the same diameter of 200 mm, speed, and power specifications, enabling complex machining operations. The spindle taper is Capto C6, and the machine features a 9-position lower turret compatible with Capto tooling. Additional axes include a Y-axis stroke of 140 mm, a C-axis capable of 360°, and a B-axis with 225° rotation, enhancing multi-axis machining capabilities. The tool magazine holds 40 positions, providing ample capacity for various tooling requirements. High-pressure through-spindle coolant is available at 20 bar to support efficient chip removal and cooling. The lathe comes with a chip conveyor to manage swarf and maintain cleanliness during operation. A CROMAR swarf management and filtration system is connected to the machine, including gauges and control panels, which supports effective filtration and cleanliness in the workshop environment. The machine is situated in a well-lit industrial workshop and appears clean and well-maintained, with some signs of use on the floor and minor wear on the machine base and hydraulic components. Multiple warning and instruction labels are affixed on the machine's panels for safe operation. Visible accessories include a control panel with screen and multiple buttons, tool holders on a workbench nearby, and hydraulic and electrical components with connected cables and hoses. This MAZAK INTEGREX 100 IV-ST CNC lathe is a versatile and robust machine suitable for complex turning and milling operations, equipped with essential accessories and filtration systems to support efficient and clean machining processes. Condition: Excellent
Type Of Control: Mazatrol Matrix
Max Machinable Length: 753 mm
Max Machinable Diameter: Ø 545 mm
Bar Passage: 51 mm
X-axis stroke: 410 mm
Y-axis stroke: 140 mm
Z-axis stroke: 805 mm
C-axis: 360°
B Axis: 225°
Spindle Diameter: Ø 200 mm
Spindle Speed: 5,000 rpm
Spindle Power: 11 Kw
Self-centering counter spindle diameter: Ø 200 mm
Counter Spindle Speed: 5,000 rpm
Counter Spindle Power: 11 Kw
C-axis Counter Spindle: 555 mm
Milling Spindle Speed: 12,000 rpm
Milling Spindle Power: 18.5 Kw
Spindle taper: Capto C6
Tool magazine: 40 positions
Lower turret: 9 positions Capto

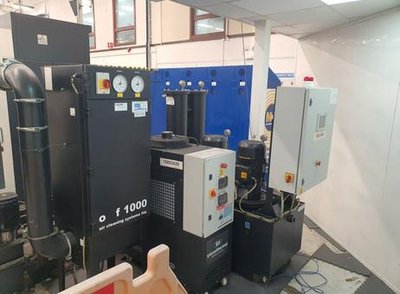

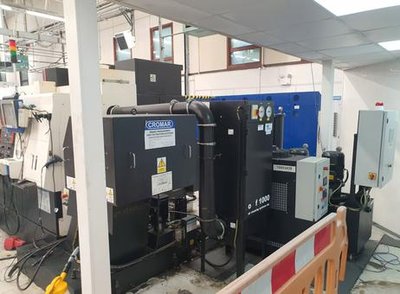

High Pressure Through Spindle: 20 Bar
Accessories: Chip conveyor
