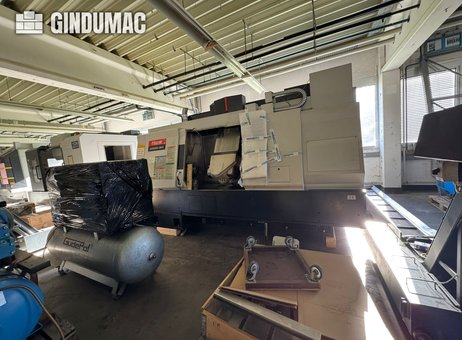

Mazak INTEGREX 200-3 CNC lathe
34.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | Mazak |
| Baujahr | 2004 |
| Manufacturer | Mazak |
| Model | INTEGREX 200-3 |
| Year | 2004 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 535 mm |
| Turning Ø | 300 mm |
| Ø above the bed | 360 mm |
| Ø above transversing slide | 254 mm |
| Length between centers | 1000 mm |
| X-axis | 225 mm |
| Z-axis | 605 mm |
| Max workpiece weight | 50 kg |
| Spindle bore | 76 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 14.9 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3850.0 × 2100.0 × 1400.0 |
| Weight | 9200 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Mazak Integrex 200-3ST |
| Last availability date | 06/09/2026 |
| Product id | P260827135 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Type of CNC | Mazatrol Smooth C |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | A2-6 |
| Number of tools on turret | 12 |
Beschreibung
This 5-axis Mazak INTEGREX 200-3 was manufactured in 2004. It features a maximum turning diameter of 660 mm and a maximum turning length of 1045 mm. The machine is equipped with a main spindle speed of 5000 rpm and a milling spindle speed of up to 12000 rpm. If you are looking to get high-quality mill-turn capabilities, consider the Mazak INTEGREX 200-3 machine we have for sale. Contact us for further details.- Maximum Turning Diameter: 540-660 mm
- Maximum Swing Diameter Over Bed: 660 mm
- Maximum Turning Length: 1016-1045 mm
- Main Spindle Speed: 35-5000 rpm
- Milling Spindle Speed: up to 12000 rpm
- Tool Holder: Capto C6
- Machine Height: 1200 x 1400 mm
- Main Circuit Voltage: 3AC 400V 50/60Hz
- Control Circuit Voltage: AC 100V / DC 24V
- Main Motor Current: Max 84 A (400 V)
- Rated Capacity: 50.0 kVA

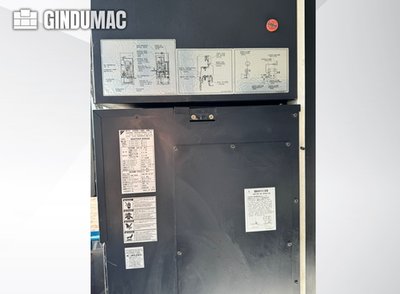

- Oil Cooling Unit Model: Daikin (Weight 190 kg)
- Cooling Unit Capacity: Comp. 1.1 kW, Circulating Pump P1 0.4 kW, Circulating Pump P2 0.4 kW
- Refrigerant: R407C (0.83 kg)
Machine Length: 3850 mm
Machine Weight: 9200 kg
Machine Width: 2100 mm
Number of Axes: 5
Tool Stations: 40
Spindle Speed: 5000 RPM
X-axis Travel: 580 mm
Y-axis Travel: 160 mm
Z-axis Travel: 1045 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Maximum Swing Diameter Over Bed: 660 mm
- Maximum Turning Length: 1016-1045 mm
- Main Spindle Speed: 35-5000 rpm
- Milling Spindle Speed: up to 12000 rpm
- Tool Holder: Capto C6
- Machine Height: 1200 x 1400 mm
- Main Circuit Voltage: 3AC 400V 50/60Hz
- Control Circuit Voltage: AC 100V / DC 24V
- Main Motor Current: Max 84 A (400 V)
- Rated Capacity: 50.0 kVA
- Oil Cooling Unit Model: Daikin (Weight 190 kg)
- Cooling Unit Capacity: Comp. 1.1 kW, Circulating Pump P1 0.4 kW, Circulating Pump P2 0.4 kW
- Refrigerant: R407C (0.83 kg)
Machine Length: 3850 mm
Machine Weight: 9200 kg
Machine Width: 2100 mm
Number of Axes: 5
Tool Stations: 40
Spindle Speed: 5000 RPM
X-axis Travel: 580 mm
Y-axis Travel: 160 mm
Z-axis Travel: 1045 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
