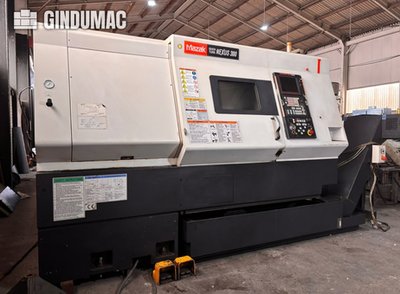

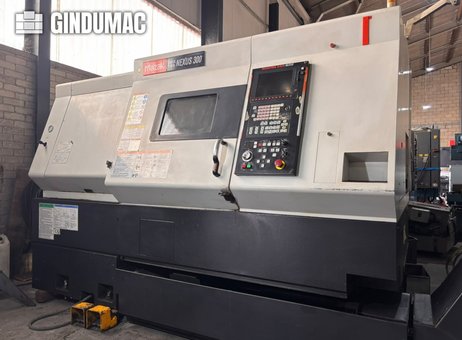

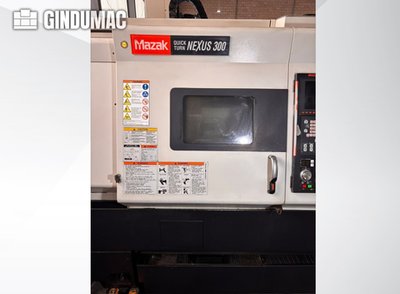

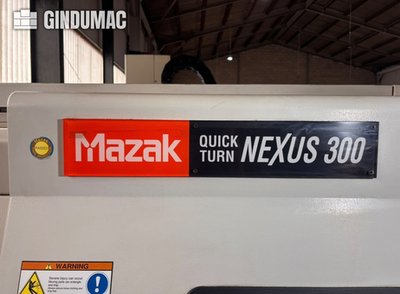

Mazak QT NEXUS 300 CNC lathe
34.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | Mazak |
| Baujahr | 2009 |
| Manufacturer | Mazak |
| Model | QT NEXUS 300 |
| Year | 2009 |
| Location | United Kingdom |
| Category | Lathes - CNC lathes |
| Turning length | 532 mm |
| Turning Ø | 350 mm |
| Ø above the bed | 675 mm |
| Ø above transversing slide | 660 mm |
| Length between centers | 500 mm |
| X-axis | 600 mm |
| Z-axis | 250 mm |
| Max workpiece weight | 700 kg |
| Spindle bore | 88 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 15 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 2800.0 × 2050.0 × 2000.0 |
| Weight | 6600 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Mazak QT NEXUS 300 |
| Last availability date | 05/10/2026 |
| Product id | P260923224 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | Mazatrol Smart |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | Capto C6 |
| Number of tools on turret | 12 |
Beschreibung
This 3-axis Mazak QT NEXUS 300 was manufactured in 2009. It features a maximum cutting diameter of 420 mm and a maximum swing of 680 mm. The machine is equipped with a drum turret with 12 stations and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak QT NEXUS 300 horizontal turning machine we have for sale. Contact us for further details.CNC: Mazatrol Fusion 640T Nexus (8.4" color LCD)
CE marked
Capacity
Max bar diameter: 77 mm
Max cutting diameter: 420 mm
Max swing: 680 mm
Spindle bore: 88 mm
Spindle center height: 1,080 mm
Max chuck workpiece weight: 450 kg
Main spindle
Max spindle torque: 600 Nm
Spindle nose: A2-8
Chuck: 10" through-hole, type B210A815X
Axes
Cutting feedrate: X 8 m/min, Z 8 m/min
Rapid traverse: X 30 m/min, Z 25 m/min
Turret
Type: Drum turret
Stations: 12
Turning tool shank: 25 × 25 mm
Indexing time: 0.8 s (½ turn), 0.2 s (single step)
Tailstock
Programmable, motor-driven movement
Stroke: 645 mm
Taper: No. 5
Dead centre included
Live centre: NSK LC-5SW (speed up to 4,000 rpm)
Thrust selection: 10 levels
Control equipment and functions
Mazatrol Fusion 640T Nexus
Interfaces: RS-232C, Network
Background tool-path check
Machining Navigation – Prediction / Monitor / Results
Velocity and feedrate control
Tool path storage
3.5" FDD unit
Coolant / machine equipment
Complete coolant system (tank 210 L, pump 520 W)
Preparation for side chip conveyor
Automatic tool eye
Hydraulic chuck pressure interlock
Chuck open/close confirmation
Double foot switch
Full chip and coolant guarding
Work light
Electrical
Power requirement (30 min rating): 49.69 kVA
Continuous power requirement: 43.83 kVA
Additional equipment
European-market power transformer
Foundation plates
One set of adjusting tools
Manuals included
Counter Spindle: no
Driven Tools: no
Machine Height: 2000 mm
Machine Length: 2800 mm
Machine Weight: 6600 kg
Machine Width: 2050 mm
Number of Axes: 3
Spindle Power: 26 kW
Spindle Speed: 4000 RPM
X-axis Travel: 225 mm
Z-axis Travel: 680 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
