MURATA MURATEC MD 120 Lathe

MURATA MURATEC MD 120 Lathe
Make an offer
MURATA
MURATEC MD 120
2009
Italy
Lathes - CNC lathes
P250723078
+39 3 93…
Turning Ø
120 mm
Length between centers
340 mm
Type of CNC
Fanuc FS31i - model A
Spindle taper
Turning speed
4500 rpm
Spindle motor power
11 kW
Tailstock
no
Bar feeder
no
as-is, where-is
24/04/2026

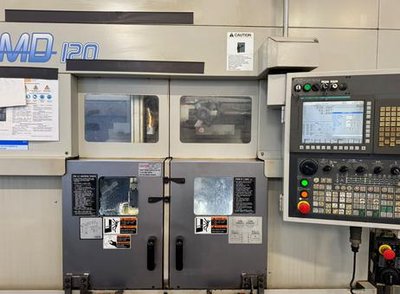

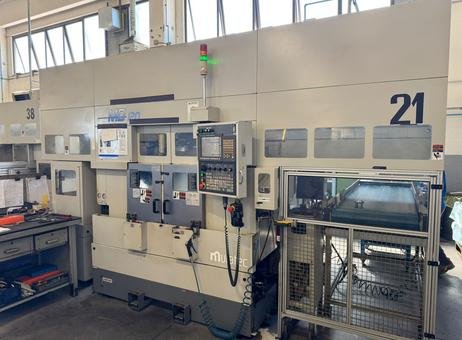

This listing features a MURATA MURATEC MD 120 CNC bi-mandrin lathe, manufactured in 2009. The machine is designed for precision turning with a maximum turning diameter of 120 mm and a length between centers of 340 mm. It is equipped with a powerful 11 kW spindle motor capable of reaching speeds up to 4500 rpm, enabling efficient machining operations. The lathe utilizes a Fanuc FS31i - model A control system, providing reliable and user-friendly CNC control. The machine offers X-axis travel of 130 mm and Z-axis travel of 145 mm, with rapid feed rates of 24 m/min on the X and Y axes. It features a tool turret with two sets of 10 motorized positions, allowing for versatile tooling options. The lathe includes two loading stations with loader travel distances of 200 mm to the left and 1600 mm to the right, along with Y and Z axis loader strokes of 550 mm and 155 mm, respectively. The lathe is housed within a large enclosure equipped with multiple windows and doors, providing safe access and visibility to the machining area. The enclosure includes transparent viewing windows, though some appear slightly fogged or dirty, which may affect visibility inside. Safety and operational instructions are posted on the machine, and caution stickers are visible on the front doors. A chip conveyor system with mesh guarding is installed for efficient chip removal, accompanied by a blue collection bin. The machine's exterior is clean and well-maintained with no visible damage. A safety light tower mounted on top displays a green light, indicating operational status. The control panel is located on the right side and features a display screen, buttons, knobs, and indicator lights. The machine is situated indoors in an organized industrial workshop environment with good lighting. Additional accessories observed include internal lighting within the enclosure to illuminate the working area, shelving with tool holders nearby, and a portable fan in the vicinity. The interior tooling and spindle show some coolant residue, suggesting recent use, but no obvious damage or debris obstructing the tool area. Overall, this MURATEC MD 120 CNC lathe is a robust and well-equipped machine suitable for precision turning tasks in a professional workshop setting. Type: CNC BI-MANDRIN LATHE
Condition: Used
Condition: Good
Type Of Control: Fanuc FS31i - model A
Distance Between Spindles: 340 mm
Max Turning Diameter: Ø 120 mm
Max. Turning Length: 75 mm
X-Axis Travel: 130 mm
Z-Axis Travel: 145 mm
Rapid feeds: X-Y 24 m/min
Spindle Speed: 45-4,500 rpm
Spindle Power: 11 Kw
Tool Turret: 2 x 10 motorized positions
Loading Stations: No. 2
X-axis Loader Travel: Left 200 mm - Right 1,600 mm
Y Axis Stroke Loader: 550 mm
Z-axis loader stroke: 155 mm
Weight: 4,500 kg
Accessories: Chip conveyor
