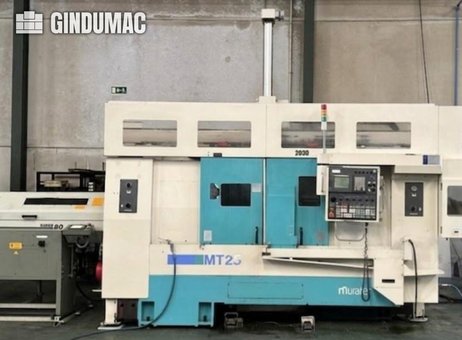

Muratec MT 25 MY CNC lathe

Muratec MT 25 MY CNC lathe
Top seller
View price
Muratec
MT 25 MY
2001
Spain
Lathes - CNC lathes
P260514317
+34 679 …
Ø above the bed
370 mm
Type of CNC
X-axis
230 mm
Z-axis
250 mm
Spindle taper
Turning speed
3500 rpm
Tailstock
no
Bar feeder
no
Weight
10800 kg
as-is, where-is
21/05/2026
This Muratec MT 25 MY is an 8-axis CNC turn-mill center manufactured in 2001, designed for high-precision and versatile machining tasks. It features twin spindles and twin turrets, each equipped with 15 live tooling stations, allowing complex machining operations with live tooling speeds up to 3,000 rpm powered by 4 kW motors. The machine supports a maximum machining diameter of 370 mm and a maximum machining length of 920 mm, with a bar capacity of 67 mm, making it suitable for medium-sized workpieces. The machine's travels include X1 and X2 axes at 230 mm each, Z1 at 250 mm, Z2 at 700 mm, Y axis with ±50 mm travel totaling 100 mm, and a sub-spindle Z3 axis of 750 mm. It employs solid box ways (prismatic guideways) on all axes for robust and precise movements. The twin identical spindles feature an A2-6 spindle nose and deliver torque of 420 N·m, with automatic workpiece transfer between spindles including torque control. Equipped with a Fanuc CNC control system managing motors, servos, and electronics, this machine offers advanced monitoring through a load control system and tool wear monitor. It includes automatic air and coolant blasts for sub-spindle cleaning. Additional features enhancing productivity include a high-speed 3-axis gantry robot loader with an 8 kg capacity for automatic loading and unloading, a 1.5 m CNC bar feeder, an automatic swing-arm parts catcher for small finished parts, and an integrated conveyor belt for finished components. There is also an independent sampling compartment for in-process inspection and a rear-exit hinge-type chip conveyor. Workholding is managed by two Kitagawa 250 mm hydraulic chucks, and the machine comes with a complete set of static and live tooling holders for both OD and ID operations. The machine weighs approximately 10,800 kg and offers rapid traverse rates of 20 m/min on the X-axis and 25 m/min on the Z-axis. This Muratec MT 25 MY turn-mill center is currently in operation and available for immediate delivery. It is suitable for users seeking a robust, multi-axis CNC lathe capable of complex turning and milling operations. This 8-axis Muratec MT 25 MY was manufactured in 2001. It features a maximum machining diameter of 370 mm and a maximum machining length of 920 mm. The machine is equipped with twin spindles and twin turrets, offering 15 live tooling stations per turret. If you are looking to get high-quality turning capabilities, consider the Muratec MT 25 MY turn-mill centre we have for sale. Contact us for further details.Configuration: Twin spindle / twin turret / twin Y-axis (9 controlled axes)
Control unit: Fanuc CNC (motors, servos, electronics)
Condition: Currently in operation; immediate delivery
Travels:
X1: 230 mm
X2: 230 mm
Z1: 250 mm
Z2: 700 mm
Y: 100 mm (±50 mm)
Z3 (sub-spindle): 750 mm
Capacity & envelope:
Max machining diameter: 370 mm
Max machining length: 920 mm
Bar capacity: 67 mm
Rapid traverse (X/Z): 20 / 25 m/min

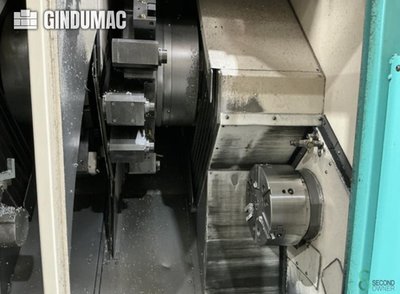

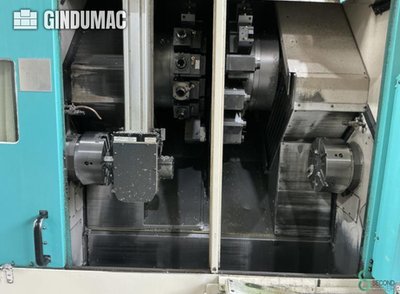

Spindles (twin, identical):
Spindle nose: A2-6
Torque: 420 N·m
Workpiece transfer: Automatic transfer between spindles with torque control

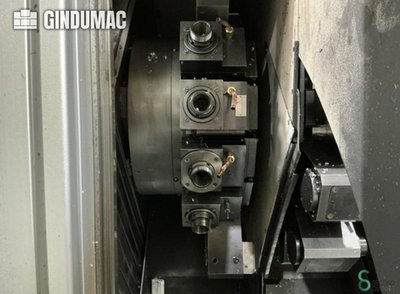

Turrets & tooling capability:
Turrets: 2 (both with Y-axis & C-axis)
Stations: 15 per turret (all live/driven)
Live tooling speed: 3,000 rpm
Live tooling motor: 4 kW
Indexing time: 0.2 s
Build & features:
Guideways: Solid box ways (prismatic) on all axes
Cleaning: Automatic air/coolant blast for sub-spindle cleaning
Monitoring: Load control system and tool wear monitor
Additional equipment
Gantry loader: High-speed 3-axis gantry robot, 8 kg capacity (automatic loading/unloading)

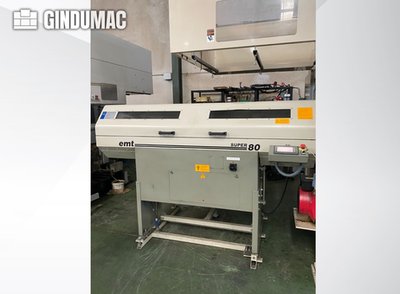

Bar feeder: 1.5 m CNC bar loader
Parts catcher: Automatic swing-arm for small finished parts
Parts conveyor: Integrated conveyor belt for finished components
Sampling compartment: Independent area for in-process inspection
Chip conveyor: Rear-exit hinge-type chip conveyor
Workholding: 2 × Kitagawa 250 mm hydraulic chucks
Tooling included: Complete set of static holders (OD/ID) and live holders (axial/radial)
Counter Spindle: no
Driven Tools: no
Machine Weight: 10800 kg
Number of Axes: 8
Spindle Power: 15 kW
Spindle Speed: 3500 RPM
X-axis Travel: 230 mm
Z-axis Travel: 250 mm
