Okuma Genos L300 E-M CNC lathe

Okuma Genos L300 E-M CNC lathe
Top seller
View price
Okuma
Genos L300 E-M
2014
Hungary
Lathes - CNC lathes
P260506487
+34 679 …
Turning length
1000 mm
Turning Ø
300 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
235 mm
Z-axis
1140 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
65 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
3800 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Length x width x height
1000.0 × - × -
Weight
6000 kg
as-is, where-is
Datasheet
Okuma GENOS L 300 E- M
21/05/2026

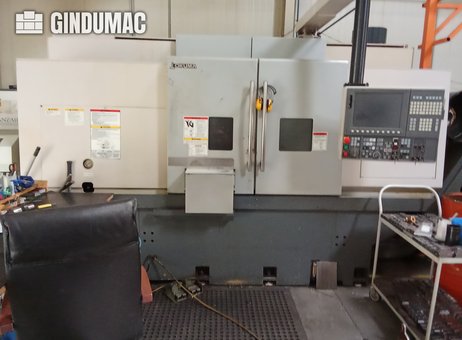

This Okuma Genos L300 E-M CNC lathe, manufactured in 2014, is a robust 3-axis machine designed for precision turning tasks. It offers a maximum turning diameter of 300 mm and a turning length of up to 1000 mm, making it suitable for medium-sized workpieces. The lathe is equipped with a spindle capable of speeds up to 3800 rpm and a powerful 22 kW spindle motor, ensuring efficient machining performance. The spindle bore measures 65 mm, allowing the accommodation of various workpiece sizes. The machine features an X-axis travel of 235 mm and a Z-axis travel of 1140 mm, providing ample movement range for complex turning operations. It is fitted with a turret that supports multiple tools, enhancing versatility and reducing setup times. The control system is the Okuma OSP-P300, known for its user-friendly interface and reliable operation. From the images, the lathe has a closed double-door enclosure with the control panel located on the right side, which includes a screen along with multiple buttons and knobs for precise control. A black cushioned chair is positioned in front of the machine, indicating a setup for operator comfort. There is also a long conveyor or feeder system attached to the left side, facilitating efficient material handling. Nearby, a workbench with various organized tools and parts can be seen, supporting smooth workflow. The machine appears used but is in good condition, with some dirt marks visible, and the surrounding floor area is clean with some cables and hoses present. This Okuma Genos L300 E-M lathe, weighing approximately 6000 kg, is a solid choice for those seeking reliable and versatile CNC turning capabilities. For more information, please contact us. This 3-axis Okuma Genos L300 E-M was manufactured in 2014. It features a maximum turning diameter of 300 mm and a turning length of up to 1000 mm. The machine is equipped with a spindle speed of up to 3800 rpm and a robust turret with 12 stations. If you are looking to get high-quality turning capabilities, consider the Okuma Genos L300 E-M CNC lathe we have for sale. Contact us for further details.Chuck size: 203 mm
Max. turning diameter: 300 mm
Max. turning length: 450–520 mm (up to 1000 mm optional)
Z-axis travel: 450–1140 mm
Spindle bore: 65 mm
Turret: 12 stations
Tool type/interface: VDI / BMT
C-axis: Yes
Control Brand: OKUMA
Control Model: OSP-P300
Counter Spindle: no
Driven Tools: yes
Machine Weight: 6000 kg
Number of Axes: 3
Spindle Power: 22 kW
Spindle Speed: 3800 RPM
X-axis Travel: 235 mm
Z-axis Travel: 1140 mm
