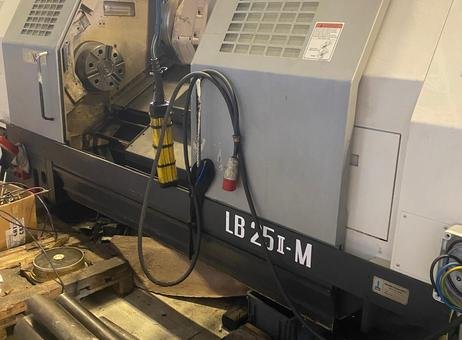

OKUMA LB 25 II-M cnc lathe

OKUMA LB 25 II-M cnc lathe
Make an offer
OKUMA
LB 25 II-M
1998
Italy
Lathes - CNC lathes
P250925333
+39 3 93…
Turning length
1250 mm
Ø above transversing slide
420 mm

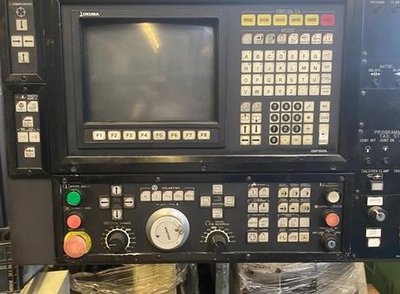

Type of CNC
okuma osp 5020l
X-axis
230 mm
Z-axis
670 mm
Spindle taper
asa
Number of tools on turret
12
Turning speed
3500 rpm
Spindle motor power
28 kW
Tailstock
no
Bar feeder
no
Weight
11700 kg
as-is, where-is
24/04/2026

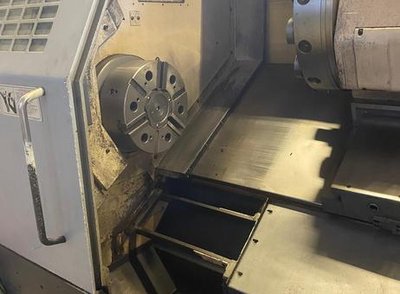

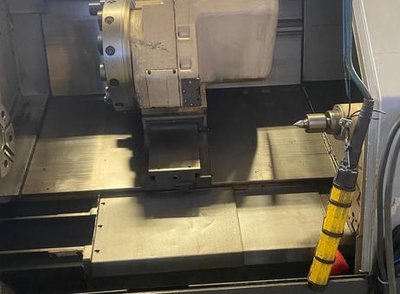

This listing features an Okuma CNC lathe, model LB 25 II-M, manufactured in 1998. The machine is designed for precision turning operations with a maximum machinable diameter of 420 mm above the transversing slide and a turning length capacity of 1,250 mm. It is equipped with a spindle that operates at speeds up to 3,500 rpm, powered by a 28 kW motor. The spindle has an ASA 8 type and is paired with a four-jaw chuck mounted on the spindle, suitable for securing various workpieces. The lathe includes a motorized turret with 12 tool positions, compatible with VDI 40 tooling, enabling efficient tool changes and versatile machining capabilities. The X-axis travel is 230 mm, while the Z-axis travel extends to 670 mm, allowing for a range of machining dimensions. Rapid feed rates for the X and Z axes are 20 mm/min and 25,000 mm/min respectively, facilitating fast and precise movements. The overall dimensions of the machine are 4,865 mm in length and 2,620 mm in width, with a total weight of approximately 11,700 kg. An included chip conveyor helps manage metal shavings during operation, contributing to a cleaner work environment. The machine shows signs of use consistent with prior industrial operation, including some dirt accumulation and wear marks on the exterior and around the spindle and chuck area. Interior surfaces display metal marks and grime, indicative of regular machining activity. Power cables and a yellow control pendant are present on the machine's side, supporting operational control. This lathe is situated in an industrial workshop environment, with various metal rods and wooden pallets nearby, reflecting its typical usage setting. Overall, the Okuma LB 25 II-M is a robust CNC lathe suitable for a variety of turning tasks requiring precision and reliability. Control Type: Okuma OSP 5020L
Distance Between Drills: 1,250 mm
X Axis Travel: 230 mm
Z Axis Travel: 670 mm
Rapid Feeds: X/Z - 20/25,000 mm/min
Max Machinable Diameter: Ø 420 mm
Max. machining length: 1,250 mm
Chuck diameter: Ø 315 mm
Spindle Speed: 3,500 rpm
Spindle Power: 28 Kw
Spindle Type: ASA 8
Tool Station: 12 positions
Motorized turret: VDI 40
Weight: 11,700 Kg
Dimensions L X W X H: 4,865 x 2,620 mm
Accessories: Chip conveyor
