Okuma MU 6300 V CNC lathe

Okuma MU 6300 V CNC lathe
Verified seller
Price on request
Make an offer
Manufacturer
Okuma
Model
MU 6300 V
Year
2016
Location
Italy
Category
Lathes - CNC lathes
Product id
P260418006
Buy this machine
Language
Language
CNC струг Okuma MU 6300 V
CNC soustruh Okuma MU 6300 V
Okuma MU 6300 V CNC-drejebænk
Okuma MU 6300 V CNC-Drehmaschine
Τόρνος CNC Okuma MU 6300 V
Okuma MU 6300 V CNC lathe
Torno CNC Okuma MU 6300 V
Tour CNC Okuma MU 6300 V
CNC tokarski stroj Okuma MU 6300 V
Okuma MU 6300 V CNC esztergagép
Tornio CNC Okuma MU 6300 V
Okuma MU 6300 V CNC tekinimo staklės
Okuma MU 6300 V CNC-draaibank
Tokarka CNC Okuma MU 6300 V
Torno CNC Okuma MU 6300 V
Strung CNC Okuma MU 6300 V
Okuma MU 6300 V Токарный станок с ЧПУ
CNC strug Okuma MU 6300 V
Okuma MU 6300 V CNC-svarv
CNC torna Okuma MU 6300 V
Get price & details
+39 3 27…
Show phone
Details
About this seller
Specifications
Type of CNC
Spindle taper
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
05/05/2026
Show more
Seller's description

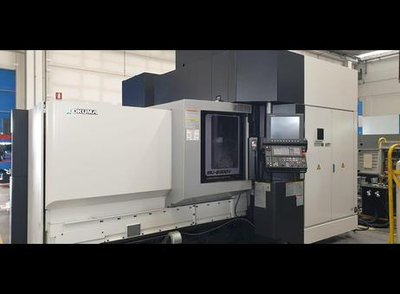

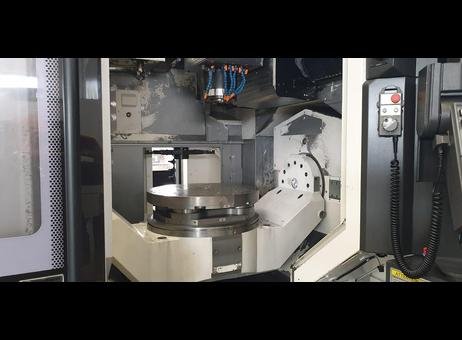

The Okuma MU 6300 V machining center is a used five-axis milling equipment designed for complex five-axis operations. The machine features a 630 mm rotary table capable of supporting a maximum load of 600 kg. The maximum workable dimensions are a diameter of 830 mm and a height of 550 mm. The travel of the X, Y, and Z axes is respectively 925 mm, 1050 mm and 600 mm, providing a wide operating range.
This machine is equipped with several options, including shower washing, a Mayfran MT10 chip conveyor, as well as optical scales for the X, Y and Z axes. It is prepared for pallet changer and includes advanced programming for the tool center and tool orientation control. The spindle offers a BT 50 BIG PLUS interface with speeds up to 12,000 rpm and a power of 26/18.5 kW.
The tool magazine is of MATRIX type with 98 positions, expandable up to 166 slots, enabling greater flexibility in tool management. Additionally, the machine is equipped with Renishaw TS27R and RMP 60 probes for calibration and quality control, ensuring precision and reliability in the machining processes.
Specifications
Manufacturer OKUMA
Model MU 6300 V
Year 2016
Condition Used
Stock Number 000091
TABLE DIAMETER OF THE MACHINE BED 630 mm
DIAMETER AND MAXIMUM WORKING HEIGHT Diameter 830 X 550 mm
ALLOWED LOAD ON THE TABLE 600 Kg
ROTATION AXIS A +90° -120°
X AXIS TRAVEL 925 mm
Y AXIS TRAVEL 1.050 mm
Z AXIS TRAVEL 600 mm
CROSSLINE OF AXLE +90° - 120°
CROSSLINE AXIS 360° In Continuous
DISTANCE BETWEEN TABLE AND SPINDLE FACE 60 - 660 mm
FAST AXIS X - Y - Z FEED 50 m/min
HIGH WORK PROGRESS 50.000 mm \ MIN
SPINDLE CLAMP BT 50 BIG PLUS
SPINDLE TURNS 12.000 Rpm
MAXIMUM AVAILABLE POWER 26 / 18.5 KW
TOOLING WAREHOUSE MATRIX 98 POSITIONS EXPANDABLE TO 166 POSITIONS
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2024
Offers online
22
Last activity
May 5, 2026
R.F. CELADA S.P.A.
Verified seller
Mission
Provide customers with a wide and flexible range of reliable, competitive, precise and quality solutions. Consolidate the relationship through mutual trust, sharing of skills and the desire to generate sustainable growth for the country.
Loyalty
Building a long-lasting relationship of trust. This is what Celada does with every customer, and communication is a key factor in its success. The Group’s approach – based on understanding machining needs and selecting the most suitable machine tool for the customer’s specific needs; support from sales to installation, prompt and effective assistance at any time – has brought the brand Celada to build solid and lasting ties with customers in every country it operates.
Selected partners
To offer its customers products and services of the highest standards, Celada has always relied on highly selected companies, capable of enriching and enhancing the skills developed over its 80-year history. This is why the Group’s partners are the best manufacturers of machine tools in the world, capable of guaranteeing long-term quality, reliability and precision.
Vision: Continuous innovation.
Coherent corporate innovation is in direct response to the evolution of our national economy. It fosters a culture of growth not only in terms of expansion but in terms of competition, added value, knowledge, and people-centeredness as well.
Seller's description
The Okuma MU 6300 V machining center is a used five-axis milling equipment designed for complex five-axis operations. The machine features a 630 mm rotary table capable of supporting a maximum load of 600 kg. The maximum workable dimensions are a diameter of 830 mm and a height of 550 mm. The travel of the X, Y, and Z axes is respectively 925 mm, 1050 mm and 600 mm, providing a wide operating range.
This machine is equipped with several options, including shower washing, a Mayfran MT10 chip conveyor, as well as optical scales for the X, Y and Z axes. It is prepared for pallet changer and includes advanced programming for the tool center and tool orientation control. The spindle offers a BT 50 BIG PLUS interface with speeds up to 12,000 rpm and a power of 26/18.5 kW.
The tool magazine is of MATRIX type with 98 positions, expandable up to 166 slots, enabling greater flexibility in tool management. Additionally, the machine is equipped with Renishaw TS27R and RMP 60 probes for calibration and quality control, ensuring precision and reliability in the machining processes.
Specifications
Manufacturer OKUMA
Model MU 6300 V
Year 2016
Condition Used
Stock Number 000091
TABLE DIAMETER OF THE MACHINE BED 630 mm
DIAMETER AND MAXIMUM WORKING HEIGHT Diameter 830 X 550 mm
ALLOWED LOAD ON THE TABLE 600 Kg
ROTATION AXIS A +90° -120°
X AXIS TRAVEL 925 mm
Y AXIS TRAVEL 1.050 mm
Z AXIS TRAVEL 600 mm
CROSSLINE OF AXLE +90° - 120°
CROSSLINE AXIS 360° In Continuous
DISTANCE BETWEEN TABLE AND SPINDLE FACE 60 - 660 mm
FAST AXIS X - Y - Z FEED 50 m/min
HIGH WORK PROGRESS 50.000 mm \ MIN
SPINDLE CLAMP BT 50 BIG PLUS
SPINDLE TURNS 12.000 Rpm
MAXIMUM AVAILABLE POWER 26 / 18.5 KW
TOOLING WAREHOUSE MATRIX 98 POSITIONS EXPANDABLE TO 166 POSITIONS
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
