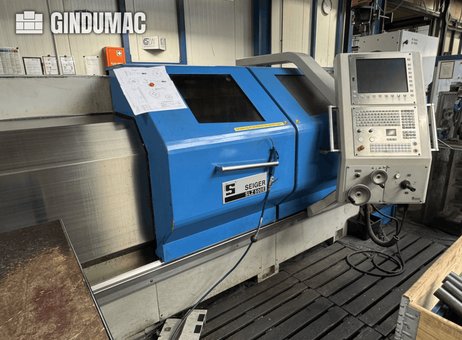

SEIGER SLZ 500E CNC lathe

Horizontal turning machine manufactured in 2014. This SEIGER SLZ 500E features a center distance of 1500 mm and a swing diameter over the bed of 500 mm. It is equipped with a powerful main drive of 20/25 kW and a maximum spindle torque of approximately 1400 Nm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ 500E machine we have for sale. Contact us for further details regarding this machine.- Spindle Speed: 1 - 3,000 RPM (Stage 1: 1 - 750 RPM, Stage 2: 1 - 3,000 RPM)
- Spindle Power (100/60% ED): 20 / 25 kW
- Taper Size: DIN 55027 Size 8 (Main Spindle Nose) / MT 5 (Tailstock Quill)
- Tool Stations: 8-station Sauter disc turret + Parat 4-way quick-change holder Size 3
- Through-Spindle Coolant: No
- Counter Spindle: No
- Max. Bar Diameter: 78 mm (through Schunk chuck) / 93 mm (spindle bore)
- Max. Workpiece Diameter: 500 mm (swing over bed) / 280 mm (swing over cross slide)
- Max. Tool Weight: No info
- Driven Tools: Yes (Sauter 8-station disc turret for driven tools, VDI shaft D=30 mm with digital servo motor)
- Positioning Accuracy: According to DIN 8605
- X-axis Travel: 260 mm
- Z-axis Travel: 1500 mm (center distance)
- C-axis Specification: Pneumatically engaging with digital motor and gear drive on main spindle (Spindle speed up to 15 rpm, Torque ca. 420 Nm)
- Bed Width: 350 mm
- Turning Tool Cross Section (H x W): 25 x 25 mm
- Spindle Diameter in Front Bearing: 130 mm
- Inner Taper of Main Spindle: Metric 100
- Maximum Spindle Torque: approx. 1400 Nm
- Feed Force Z-axis: 10,000 N
- Feed Force X-axis: 7,000 N
- Feed Range (Longitudinal/Planar): 0.001 - 6000 mm/rev
- Rapid Traverse Speed X/Z: 10 / 7 m/min
- Tailstock Quill Diameter: 90 mm
- Tailstock Quill Stroke: 180 mm
- Max Workpiece Weight (Between Centers): 1,000 kg (1,250 kg with steady rest)
- Max Workpiece Weight (Flying in Chuck): 300 kg (at 200 mm center of gravity distance)
- Operating Voltage: 400 V / 50 Hz
- Control Voltage: 24 V DC
- Connected Load: 41 KVA
- Current Rating: 60 A
- Main Fuse: 63 A
- Additional Equipment:
- Chip protection wall, 2 movable sliding safety doors with windows, machine light, Quick-change tool holder size C, coolant device, live center MT 5, operator tool set, linear scale in X-axis, safety clutch in X and Z axes
- Chip Conveyor: discharge height 1000 mm, length 535 mm, 60-degree gradient, continuous feed, ca. 250 dm³/h capacity, speed ca. 2 m/min
- Two-speed Planetary Gearbox: , automatically shifting, flanged on main spindle motor
- Parat 4-Way Turret Quick-Change Holder: Size 3, manually operated, mounted on zero-point clamping system
- Sauter 8-Station Disc Turret for Driven Tools: VDI shaft D=30 mm with digital servo motor, mounted behind turning center
- Boring Block: with VDI 50 retainer and internal coolant supply, mounted on zero-point clamping system in front of turning center
- Zero-Point Clamping System: base part mounted on cross slide
- Hydraulic Hollow Clamping Unit: Schunk ROTA THW plus D=315 mm 3-jaw chuck with DIN 55027 Size 8 mount and 78 mm bore passage
- Reinforced Coolant Pump: (2.5 bar at 40 L/min, max 5.4 bar at 8 L/min) controlled via frequency inverter and potentiometer
- Hand Spray Gun: connected to coolant unit
- Enclosure Extension: tailstock side closed extension with pivoting door
- Tailstock Driver: , mounted on bed slide for dragging tailstock
- Machine Setup Elements: , 10 pcs machine feet with screws and anchors

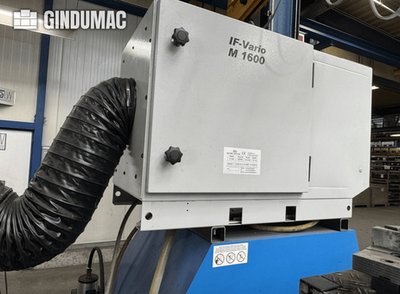

- Extraction Unit Installed: IFS Industrie-Filter-Service GmbH IF-Vario M 1600 (Model M 1600, YOM 04-2020, Weight 85 kg, 400/460 V, 50/60 Hz, 0.75 kW, 1.7/1.8 A, IP 54)
Control Brand: HEIDENHAIN
Control Model: MANUAL plus 620
Counter Spindle: no
Driven Tools: yes
Machine Height: 1900 mm
Machine Length: 3300 mm
Machine Weight: 3500 kg
Machine Width: 2100 mm
Number of Axes: 3
Spindle Power: 20 kW
Spindle Speed: 3000 RPM
X-axis Travel: 260 mm
Z-axis Travel: 1500 mm
