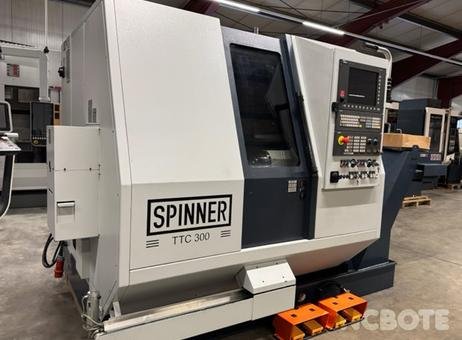

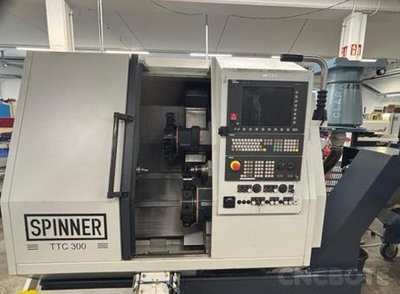

Spinner TC300-52 SMMCY Lathe
49.00 €
VB
| Zustand | defekt |
|---|---|
| Hersteller | Siemens |
| Baujahr | 2010 |
| Manufacturer | Spinner |
| Model | TC300-52 SMMCY |
| Year | 2010 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 600 mm |
| Turning Ø | 500 mm |
| Ø above the bed | 690 mm |
| Ø above transversing slide | 310 mm |
| Length between centers | 600 mm |
| X-axis | 360 mm |
| Z-axis | 980 mm |
| Max workpiece weight | kg |
| Spindle bore | 65 mm |
| Turning speed | 4000 rpm |
| Spindle motor power | 16.5 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 2200.0 × 2000.0 × 2000.0 |
| Weight | 4600 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Spinner TC300-52 SMMCY |
| Last availability date | 08/09/2026 |
| Product id | P260708226 |
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 41 |
| Last activity | Sept. 9, 2026 |
| Type of CNC | Fanuc |
| Number of turrets | 1 |
| Number of rotating tools | 6 |
| Spindle taper | VDI 30 |
| Number of tools on turret | 12 |
Beschreibung
This machine is sold to order. Technical Specifications:
Manufacturer: Spinner
Model: TC300-52 SMMCY
Year of Manufacture: 2010
Control system: Siemens 840D SL
Travel: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm
Rotation length: 400 mm
Rotation diameter: 250/200 mm
Swing diameter: 400 mm
Spindle 1
Speed: 5,000 rpm
Torque: 96/121 Nm
Power: 15/19 kW
Spindle bore: 52 mm
Spindle 2
Speed: 7,000 rpm
Torque: 38 Nm
Power: 6 kW

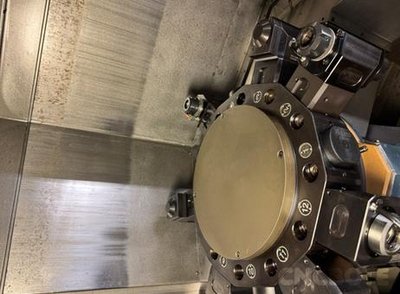

Tool turret 1 and 2
Number of positions: 12-position
Mounting: VDI 25
Max. spindle speed: 6,000 rpm
Power: 8/2.6 kW
Dimensions and Weight
Dimensions: 2,200 x 2,000 x 2,000 mm
Weight: approx. 4,600 kg
Condition
Condition: Used
Other Accessories and Included Equipment:
Belt conveyor for parts
High-pressure pump
Chip conveyor
Interface for bar feeder
3-jaw chuck for tailstock and headstock
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: Spinner
Model: TC300-52 SMMCY
Year of Manufacture: 2010
Control system: Siemens 840D SL
Travel: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm
Rotation length: 400 mm
Rotation diameter: 250/200 mm
Swing diameter: 400 mm
Spindle 1
Speed: 5,000 rpm
Torque: 96/121 Nm
Power: 15/19 kW
Spindle bore: 52 mm
Spindle 2
Speed: 7,000 rpm
Torque: 38 Nm
Power: 6 kW
Tool turret 1 and 2
Number of positions: 12-position
Mounting: VDI 25
Max. spindle speed: 6,000 rpm
Power: 8/2.6 kW
Dimensions and Weight
Dimensions: 2,200 x 2,000 x 2,000 mm
Weight: approx. 4,600 kg
Condition
Condition: Used
Other Accessories and Included Equipment:
Belt conveyor for parts
High-pressure pump
Chip conveyor
Interface for bar feeder
3-jaw chuck for tailstock and headstock
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
