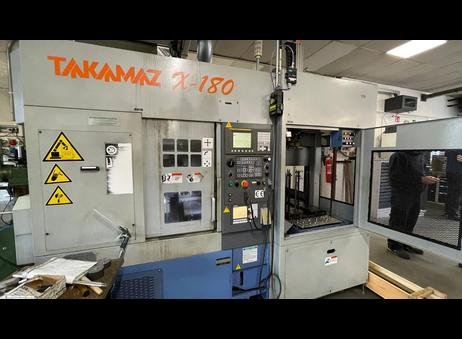

TAKAMAZ X-180 cnc lathe

TAKAMAZ X-180 cnc lathe
Make an offer
TAKAMAZ
X-180
2006
Italy
Lathes - CNC lathes
P241218296
+39 3 93…
Turning length
230 mm
Turning Ø
210 mm
Type of CNC
Fanuc 0i-TC
X-axis
175 mm
Z-axis
330 mm
Spindle taper
ASA 6
Number of tools on turret
12
Turning speed
3500 rpm
Tailstock
no
Bar feeder
no
Length x width x height
1835.0 × 1525.0 × 1760.0
Weight
3500 kg
as-is, where-is
yes
visible
24/04/2026
This listing features a Takamaz X-180 CNC lathe, manufactured in 2006, designed for precision turning tasks. The machine is equipped with a Fanuc 0i-TC control system, offering reliable and user-friendly operation. It supports a maximum turning diameter of 210 mm and a maximum turning length of 230 mm, making it suitable for small to medium-sized workpieces. The lathe accommodates bar stock up to 51 mm in diameter. The machine's X-axis stroke measures 175 mm, while the Z-axis travel extends to 330 mm, providing adequate range for various machining operations. Rapid feed rates for the X and Z axes range between 18 and 24 meters per minute, facilitating efficient material removal and cycle times. The spindle features a 61 mm bore, with a maximum speed of 3,500 rpm and an ASA 6 spindle nose, supporting a variety of tooling options. A 12-station turret tool magazine allows for multiple tool setups, enhancing versatility and reducing downtime during tool changes. The lathe has a robust build with a total weight of 3,500 kg and overall dimensions of 1,835 mm in length, 1,525 mm in width, and 1,760 mm in height. The machine is fitted with a chip conveyor to help manage waste material effectively during operation. The exterior shows signs of use, including some dirt and oil stains, but no major visible damage, indicating it has been maintained in a working environment. Safety is addressed with multiple warning labels on the machine door, and the control panel includes an emergency stop button for operator protection. Overall, the Takamaz X-180 CNC lathe is a compact, well-equipped machine suitable for various turning applications requiring precision and flexibility in a workshop setting. Control Type: Fanuc 0i-TC
Max Turning Diameter: Ø 210 mm
Max. Turning Length: 230 mm
Diameter From Bar: Ø 51 mm
X-Axis Stroke: 175 mm
Z-Axis Travel: 330 mm
Rapid feeds: X-Z 18-24 m/min
Spindle Hole: Ø 61 mm
Spindle Speed: 3,500 rpm
Spindle Nose: ASA 6
Revolver Tool Magazine: 12 stations
Weight: 3,500 kg
Dimensions L X W X H: 1,835 x 1,525 x 1,760 mm
Accessories: Chip conveyor
