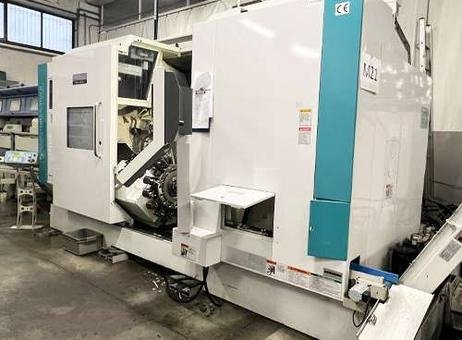

TAKISAWA TMM-250 M3 cnc lathe

TAKISAWA TMM-250 M3 cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
TAKISAWA
Model
TMM-250 M3
Year
Location
Italy
Category
Lathes - CNC lathes
Product id
P250526043
Buy this machine
Language
Language
cnc струг TAKISAWA TMM-250 M3
Soustruh cnc TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 cnc drejebænk
TAKISAWA TMM-250 M3 Drehmaschine CNC
cnc τόρνος TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 cnc lathe
Torno cnc TAKISAWA TMM-250 M3
Tour cnc TAKISAWA TMM-250 M3
cnc tokarski stroj TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 cnc eszterga
Tornio cnc TAKISAWA TMM-250 M3
cnc tekinimo staklės TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 cnc-draaibank
Tokarka CNC TAKISAWA TMM-250 M3
Torno CNC TAKISAWA TMM-250 M3
strung cnc TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 Токарный станок с ЧПУ
cnc strug TAKISAWA TMM-250 M3
TAKISAWA TMM-250 M3 cnc svarv
Cnc torna TAKISAWA TMM-250 M3
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Turning length
1300 mm
Turning Ø
350 mm
Ø above the bed
780 mm
Type of CNC
FANUC Series 180-is-TB
X-axis
560 mm
Z-axis
1300 mm
Spindle taper
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4880.0
× 2200.0
× 3050.0
Weight
10000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This TAKISAWA TMM-250 M3 is a multi-tasking CNC turning center designed for precision machining with extensive capabilities. It features a main spindle (A2-8) and a sub-spindle (A2-6), allowing complex operations and increased productivity. The machine is equipped with a motorized turret offering 15 positions on each side (15/15 VDI), enabling efficient tool changes and versatility in machining tasks. Additionally, it includes a tool head with a 30-position tool magazine, facilitating a wide range of tooling options.
The lathe supports a maximum turning diameter of 350 mm and a turning length of up to 1300 mm, with a rotation capacity of 780 mm above the bed. The travel ranges are substantial, with the X-axis providing 560 mm, the Y-axis 260 mm (±130 mm), and the Z-axis 1300 mm travel for the tool spindle. The B-axis indexing allows 230° of rotation (±115°), enhancing the capability for complex contouring. The right side head has an A-axis travel of 1300 mm, and the lower side turret offers X and Z travels of 228 mm and 1260 mm respectively.
This machine is controlled by a CNC FANUC Series 180-is-TB system, known for its reliability and precision. It includes a high-pressure system and a chip conveyor for effective chip management. A hydraulic box is also part of the package, supporting the machine's hydraulic functions.
The lathe appears clean and well-maintained externally, with no visible damage. The tool turret and holders are in good condition, equipped with coolant nozzles and hydraulic or pneumatic connections for enhanced tool functionality. The spindle chuck and sub-spindle collet chuck are polished and free of visible rust or damage. The control panel is intact, featuring a display screen and multiple control elements for operation. Inside the machine, some metal chips and coolant residue are present, consistent with regular use in an industrial workshop environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description

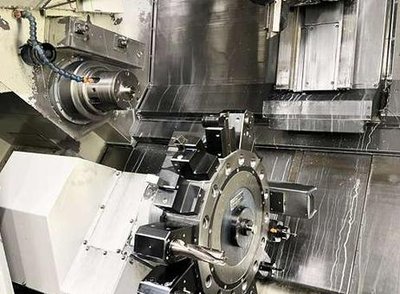

Multi-tasking turning center

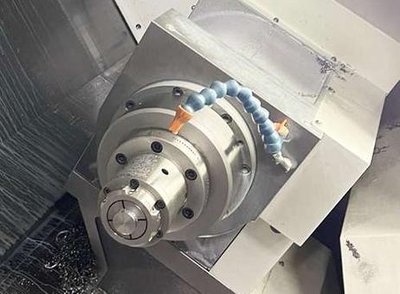

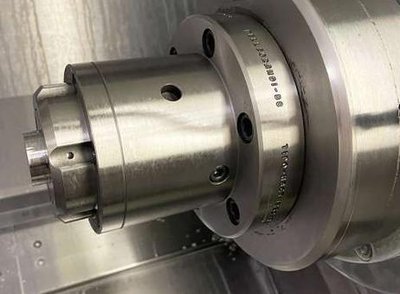

Spindle A2-8 + Subspindle A2-6

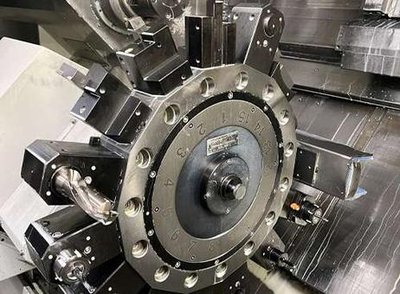

Motorized turret 15/15 VDI positions
Tool head with 30-position tool magazine
Capacity:
Rotation of the piece: 780 mm
Max turning diameter: mm 350 (500)
Max turning length: 1300/300 (flangia)
Travel:
X-axis travel (tool spindle): mm 560
Y-axis travel (tool spindle): mm 260 (+/- 130)
Z-axis travel (tool spindle): mm 1300
B-axis indexing area(tool spindle): 230° (+/- 115°)
A-axis travel (right side head): mm 1300
X-axis travel (lower side turret): mm 228
Z-axis travel (lower side turret): mm 1260
Device and Accessories: CNC FANUC Series 180-is-TB – High pressure system – Chip Conveyor – Hydraulic box
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
