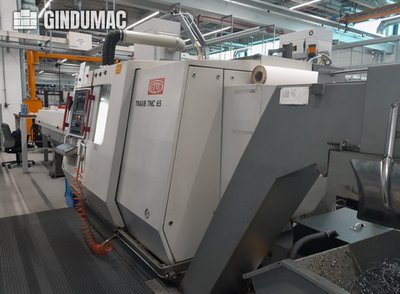

TRAUB TNC65 DG CNC lathe

TRAUB TNC65 DG CNC lathe
Top seller
Price on request
View price
Manufacturer
TRAUB
Model
TNC65 DG
Year
1999
Location
Germany
Category
Lathes - CNC lathes
Product id
P260513305
Buy this machine
Language
Language
CNC струг TRAUB TNC65 DG
CNC soustruh TRAUB TNC65 DG
TRAUB TNC65 DG CNC-drejebænk
TRAUB TNC65 DG CNC-Drehmaschine
Τόρνος CNC TRAUB TNC65 DG
TRAUB TNC65 DG CNC lathe
Torno CNC TRAUB TNC65 DG
Tour CNC TRAUB TNC65 DG
CNC tokarski stroj TRAUB TNC65 DG
TRAUB TNC65 DG CNC esztergagép
Tornio CNC TRAUB TNC65 DG
TRAUB TNC65 DG CNC tekinimo staklės
TRAUB TNC65 DG CNC-draaibank
Tokarka CNC TRAUB TNC65 DG
Torno CNC TRAUB TNC65 DG
Strung CNC TRAUB TNC65 DG
TRAUB TNC65 DG Токарный станок с ЧПУ
CNC strug TRAUB TNC65 DG
TRAUB TNC65 DG CNC-svarv
CNC torna TRAUB TNC65 DG
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning Ø
60 mm
Type of CNC
Spindle taper
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Traub TNC65 DG
Last availability date
21/05/2026
Show more
Automatic description (AI-Generated)
The TRAUB TNC65 DG is a 5-axis CNC lathe machine manufactured in 1999, designed for precision turning with a maximum clamping diameter of 60 mm. This model features an advanced TRAUB TX8H control system based on 32-bit technology, offering reliable and precise machining operations. The machine is equipped with dual tool carriers, each with 10 tool stations, enabling efficient multi-tool operations including driven tools on both carriers. It supports spindle synchronization and includes C-axis control on both the main and counter spindles, as well as a programmable V-axis for complex machining tasks.
Additional machining capabilities include thread cutting without a compensating chuck and drilling and milling units capable of operating in both X and Z directions. The machine incorporates a coolant cleaning system with a cyclone filter and a coolant tank capacity of approximately 470 liters, ensuring effective cooling and chip removal during operation. It also features a hinged belt chip conveyor system for efficient chip evacuation.
The TRAUB TNC65 DG comes with a hydraulic system and multiple voltage support, including operating voltage at 400 V / 50 Hz, control voltage at 24 V DC, and accessory voltage at 230 V / 50 Hz. Safety and operational standards compliance includes EC Machinery Directive, EMC Directive, Low Voltage Directive, and various DIN EN standards. Tool monitoring is integrated for breakage and wear, enhancing process reliability.

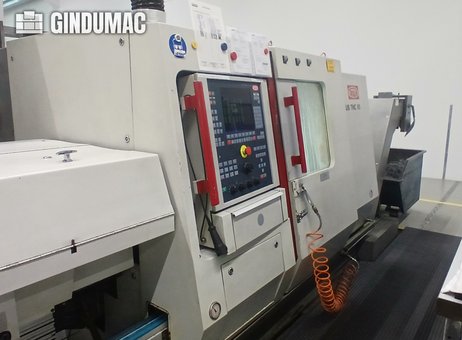

Visible components include a comprehensive control panel with multiple buttons and a screen, an emergency stop button, and a window on the machine door for viewing the machining area. An orange coiled air hose is connected to the machine, and a rubber floor mat is placed in front for operator comfort. The machine appears clean and well maintained, with the TRAUB brand and model clearly visible on the side. Also included is a workpiece ejection and removal device with a gripper, and a Röhm collet system compatible with the maximum clamping diameter.
This TRAUB TNC65 DG horizontal turning machine is suitable for high-quality, complex turning operations and comes prepared with a TRAUB DNH 61-3000 bar feeder. For further details, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 5-axis TRAUB TNC65 DG was manufactured in 1999. It features a robust control system with TRAUB TX8H technology, dual tool carriers with 10 stations each, and a maximum clamping diameter of 60 mm. The machine is equipped with a coolant cleaning system and a hinged belt conveyor for efficient chip removal. If you are looking to get high-quality turning capabilities, consider the TRAUB TNC65 DG horizontal turning machine we have for sale. Contact us for further details.Control system: TRAUB TX8H (32-bit technology)
Main spindle: Yes
Counter spindle: Yes
Spindle synchronization: Yes
C-axis main spindle: Yes
C-axis counter spindle: Yes
V-axis: Yes (programmable position)
Tool carriers: 2 (tool carrier I and II)
Driven tools on tool carrier I: Yes
Driven tools on tool carrier II: Yes
Number of tool stations: 10 per tool carrier
Thread cutting: Without compensating chuck
Drilling and milling units: X-direction (i=1 and i=3) and Z-direction (i=1 and i=3)
Coolant system: Cleaning system with cyclone filter
Coolant tank capacity: approx. 470 liters
Coolant pump: Supply for both turrets integrated
Hydraulic system: Yes
Operating voltage: 400 V / 50 Hz
Control voltage: 24 V DC
Accessory voltage: 230 V / 50 Hz
Multi-range transformer: 460 V / 400 V / 380 V / 220 V / 200 V
Standards: EC Machinery Directive, EMC Directive, Low Voltage Directive, DIN EN 292, DIN EN 294, DIN EN 418, DIN EN 60204
Tool monitoring: Tool breakage and wear monitoring
Programming software: TRAUB Polyform
Coolant type: Water-based coolant compatible
Additional equipment

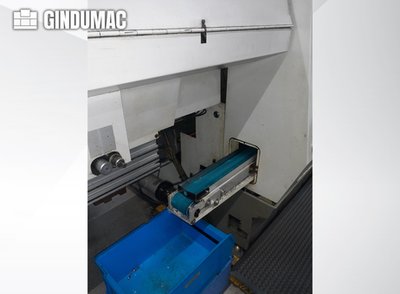

Chip conveyor: Hinged belt conveyor

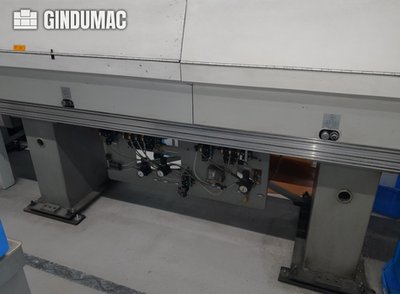

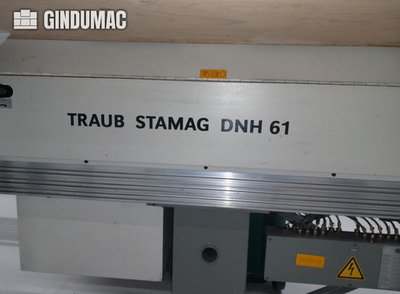

Bar feeder: TRAUB DNH 61-3000 (preparation included)
Workpiece ejection device: Yes
Workpiece removal device: Yes, with gripper
Collet system: Röhm, max clamping diameter 60 mm
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 5
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2019
Offers online
1992
Last activity
May 24, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
Seller's description
This 5-axis TRAUB TNC65 DG was manufactured in 1999. It features a robust control system with TRAUB TX8H technology, dual tool carriers with 10 stations each, and a maximum clamping diameter of 60 mm. The machine is equipped with a coolant cleaning system and a hinged belt conveyor for efficient chip removal. If you are looking to get high-quality turning capabilities, consider the TRAUB TNC65 DG horizontal turning machine we have for sale. Contact us for further details.Control system: TRAUB TX8H (32-bit technology)
Main spindle: Yes
Counter spindle: Yes
Spindle synchronization: Yes
C-axis main spindle: Yes
C-axis counter spindle: Yes
V-axis: Yes (programmable position)
Tool carriers: 2 (tool carrier I and II)
Driven tools on tool carrier I: Yes
Driven tools on tool carrier II: Yes
Number of tool stations: 10 per tool carrier
Thread cutting: Without compensating chuck
Drilling and milling units: X-direction (i=1 and i=3) and Z-direction (i=1 and i=3)
Coolant system: Cleaning system with cyclone filter
Coolant tank capacity: approx. 470 liters
Coolant pump: Supply for both turrets integrated
Hydraulic system: Yes
Operating voltage: 400 V / 50 Hz
Control voltage: 24 V DC
Accessory voltage: 230 V / 50 Hz
Multi-range transformer: 460 V / 400 V / 380 V / 220 V / 200 V
Standards: EC Machinery Directive, EMC Directive, Low Voltage Directive, DIN EN 292, DIN EN 294, DIN EN 418, DIN EN 60204
Tool monitoring: Tool breakage and wear monitoring
Programming software: TRAUB Polyform
Coolant type: Water-based coolant compatible
Additional equipment
Chip conveyor: Hinged belt conveyor
Bar feeder: TRAUB DNH 61-3000 (preparation included)
Workpiece ejection device: Yes
Workpiece removal device: Yes, with gripper
Collet system: Röhm, max clamping diameter 60 mm
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 5
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
