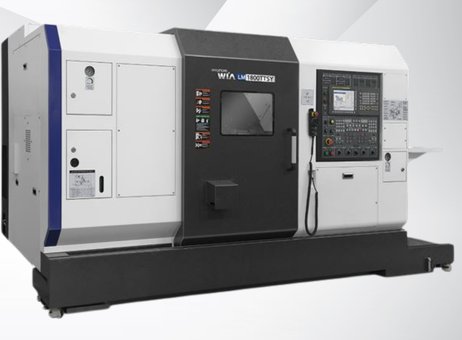

Hyundai WIA LM 1800 TTSY cnc lathe

Hyundai WIA LM 1800 TTSY cnc lathe
Top seller
Price on request
View price
Manufacturer
Hyundai
Model
WIA LM 1800 TTSY
Year
2025
Location
Germany
Category
Lathes - CNC lathes
Product id
P260123144
Buy this machine
Language
Language
cnc струг Hyundai WIA LM 1800 TTSY
Soustruh cnc Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY cnc drejebænk
Hyundai WIA LM 1800 TTSY Drehmaschine CNC
cnc τόρνος Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY cnc lathe
Torno cnc Hyundai WIA LM 1800 TTSY
Tour cnc Hyundai WIA LM 1800 TTSY
cnc tokarski stroj Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY cnc eszterga
Tornio cnc Hyundai WIA LM 1800 TTSY
cnc tekinimo staklės Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY cnc-draaibank
Tokarka CNC Hyundai WIA LM 1800 TTSY
Torno CNC Hyundai WIA LM 1800 TTSY
strung cnc Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY Токарный станок с ЧПУ
cnc strug Hyundai WIA LM 1800 TTSY
Hyundai WIA LM 1800 TTSY cnc svarv
Cnc torna Hyundai WIA LM 1800 TTSY
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
673 mm
Turning Ø
230 mm
Ø above the bed
230 mm
Ø above transversing slide
290 mm
Type of CNC
FANUC 31i-B Plus / SIEMENS 840D
X-axis
165 mm
Z-axis
700 mm
Spindle taper
Spindle bore
76 mm
Turning speed
5000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
Weight
8500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Hyundai WIA LM 1800 TTSY
Last availability date
21/05/2026
Show more
Automatic description (AI-Generated)
The Hyundai WIA LM 1800 TTSY is a high-performance 4-axis CNC lathe manufactured in 2025, designed for precision turning tasks. This machine offers a maximum turning diameter of 230 mm and a turning length of 673 mm, making it suitable for a variety of complex machining operations. It features a robust spindle with a bore diameter of 76 mm and a maximum spindle speed of 5,000 rpm, powered by a 22 kW motor, ensuring efficient and powerful machining capabilities.
The lathe is equipped with dual 12-tool turrets, providing a total of 24 tool positions for versatile tooling options. The X-axis travel is 165 mm, while the Z-axis travel extends to 700 mm, allowing for substantial machining reach. The machine also includes a Y-axis travel of 100 mm, enhancing its multi-axis machining flexibility.
The spindle utilizes a built-in motor design with an A2-6 spindle nose and offers precise C-axis indexing at 0.001°. Rapid traverse rates are impressive, with 20 m/min on the X-axis and 40 m/min on the Z-axis, contributing to reduced cycle times.
Additional features include box guide slides on the X and Y axes and LM guide slides on the Z axis, promoting smooth and accurate movement. The live tooling capabilities feature milling tool speeds up to 5,000 rpm with an ER25 collet and BMT55 type tooling.
This lathe also comes with a 300-liter coolant tank and a 4-liter lubricating tank, supporting extended operation periods. The machine's dimensions are 3650 mm in length, 2080 mm in height, and it weighs 8,500 kg.
From the images, the machine includes a control panel located on the right side with a screen and multiple buttons and knobs for operation control. A handheld pendant control is also present, hanging beside the control panel, allowing for flexible machine operation. The machining area is accessible through a large windowed door situated centrally, facilitating easy loading and monitoring of workpieces.
Overall, the Hyundai WIA LM 1800 TTSY is a comprehensive CNC lathe solution suitable for demanding industrial turning applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 4-axis Hyundai WIA LM 1800 TTSY was manufactured in 2025, featuring a maximum turning diameter of Ø230 mm and length of 673 mm. It boasts a spindle speed of up to 5,000 rpm and a bar capacity of Ø65 mm. The machine includes a built-in motor spindle, dual 12-tool turrets, and rapid traverse rates ensuring efficient operations. Ideal for complex turning tasks. Contact us for more information about this machine.Packaging: Original packaging
Capacity:
Swing over carriage: Ø290 mm
Max. turning diameter: Ø230 mm
Max. turning length: 673 mm
Bar capacity (1st/2nd): Ø65 mm
Chuck size (1st/2nd): Ø210 mm
Spindle:
Spindle bore (1st/2nd): Ø76 mm
Motor (Max/Cont.) (1st/2nd): 22/11 kW (30/15 HP)
Torque (Max/Cont.) (1st/2nd): 358/214 Nm (264/158 lbf ft)
Spindle type: Built-in motor
Spindle nose: A2-6
C-axis indexing (1st/2nd): 0.001°
Feed / Axes:
Travels (X1/X2): 165/195 mm
Travels (Z1/Z2): 700/720 mm
Travel (ZB): 668 mm
Rapid (X1/X2): 20/20 m/min (787/787 ipm)
Rapid (Z1/Z2): 40/40 m/min (1,575/1,575 ipm)
Rapid (Y): 7.5 m/min (295 ipm)
Rapid (ZB): 40 m/min (1,575 ipm)
Slide type (X/Y): Box guide
Slide type (Z): LM guide
Turret:
No. of tools: 2 × 12 (24)
Tool size (OD): Ø20 mm
Tool size (ID): Ø32 mm
Indexing time: 0.15 sec
Y-axis type: Wedge type
Live tool:
Milling tool speed: 5,000 rpm
Motor (Max/Cont.): 5.5/1.1 kW (7.4/1.5 HP)
Torque (Max/Cont.): 47/14 Nm (34/10 lbf ft)
Collet size: ER25
Type: BMT55
Tank capacity:
Coolant tank: 300 L (79.3 gal)
Lubricating tank: 4 L (1.06 gal)
Power supply:
Electric power: 60 kVA
Power cable thickness: Over 50 mm²
Voltage: 220/60 (200/50)
NC / Controller: FANUC 31i-B Plus / SIEMENS 840D
Machine Height: 2080 mm
Machine Length: 3650 mm
Machine Weight: 8500 kg
Number of Axes: 4
Spindle Speed: 5000 RPM
Y-axis Travel: 100 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
