Goodway GV 780 M CNC soustruh

Goodway GV 780 M CNC lathe
Top seller
Make an offer
Goodway
GV 780 M
2015
Italy
Lathes - CNC lathes
P260408109
+34 679 …
Turning Ø
820 mm
Ø above the bed
820 mm
Ø above transversing slide
820 mm
Type of CNC
X-axis
500 mm
Z-axis
670 mm
Spindle taper
Tailstock
no
Bar feeder
no
as-is, where-is
Datasheet
Goodway GV 780 M
24/04/2026

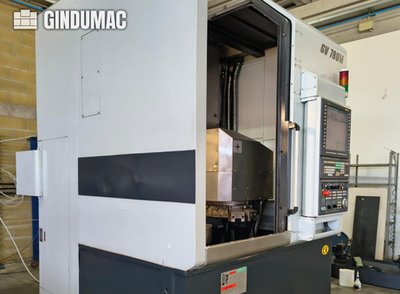

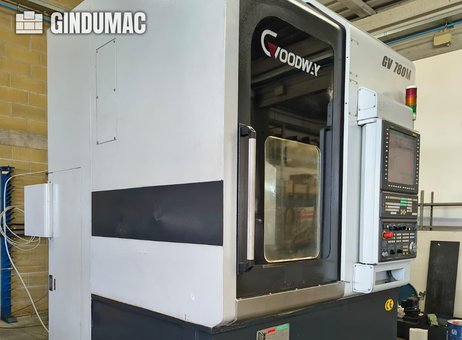

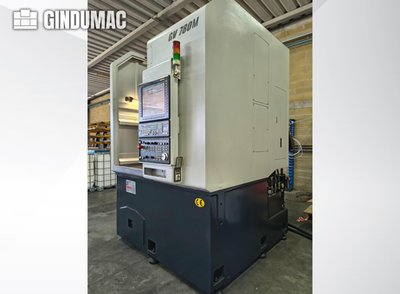

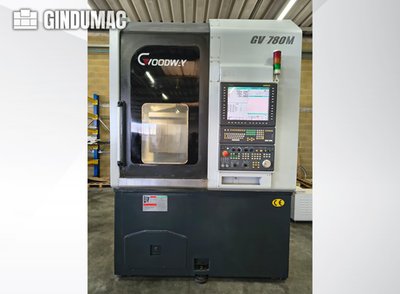

The Goodway GV 780 M is a 3-axis vertical CNC lathe manufactured in 2015, designed for precision turning tasks. It offers a maximum machining diameter of 820 mm above the bed, supported by an X-axis travel of 500 mm and a Z-axis travel of 670 mm, enabling versatile machining capabilities. The machine is equipped with a 450 mm Kitagawa B-18 type main chuck, suitable for securely holding workpieces during operation. This model features a turret with 12 tool positions, including 4 driven (motorized) tool stations, allowing for milling functions and complex machining processes. The control system is a FANUC Series 31i-Model B, providing advanced CNC control for efficient and accurate machining. Additional equipment includes an automatic tool presetter, a 5 bar coolant and high-pressure system, a side-mounted hinge-type chip conveyor for effective chip removal, a hydraulic unit, and a cooling system to maintain optimal operating temperatures. The machine's exterior is generally clean with minor visible dents on the black horizontal stripe area, indicating normal usage. The CNC lathe has a closed front door and a control panel located on the right side, featuring a screen, buttons, and knobs for operator interaction. A signal tower light is mounted on the top right corner of the machine for operational status indication. Overall, the Goodway GV 780 M is a robust and well-equipped vertical turning center suitable for a range of industrial machining applications. For more detailed information or inquiries, please contact us directly. This 3-axis Goodway GV 780 M vertical turning machine was manufactured in 2015. It features a maximum machining diameter of 820 mm and an X-axis travel of 500 mm. The machine includes a 450 mm main chuck and a turret with 12 positions, including 4 driven tool stations. If you are looking to get high-quality turning capabilities, consider the Goodway GV 780 M machine we have for sale. Contact us for further details.Max machining diameter: 820 mm
Main chuck: 450 mm Kitagawa (B-18 type visible)
Turret: 12 positions (incl. 4 driven/motorized tool stations)
Driven tool capability: M-type (milling function)
Tool presetter: Automatic
Coolant/high pressure system: 5 bar
Additional equipment
Chip conveyor (side-mounted, hinge type)
Hydraulic unit
Cooling system
Control Brand: FANUC
Control Model: Series 31i-Model B
Driven Tools: yes
Number of Axes: 3
X-axis Travel: 500 mm
Z-axis Travel: 670 mm
