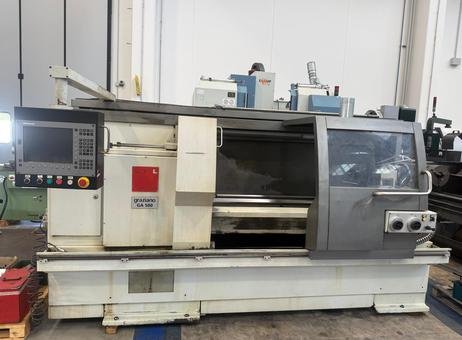

GRAZIANO GA-500 CNC lathe
39.00 €
Dohodou
| Stan | gebraucht |
|---|---|
| Výrobce | Heidenhain |
| Rok výroby | 2001 |
| Manufacturer | GRAZIANO |
| Model | GA-500 |
| Year | 2001 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Ø above the bed | 500 mm |
| Ø above transversing slide | 375 mm |
| Length between centers | mm |
| X-axis | 213 mm |
| Z-axis | 450 mm |
| Spindle bore | mm |
| Turning speed | rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Graziano GA-500 |
| Last availability date | 17/09/2026 |
| Product id | P260915130 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 39 |
| Last activity | Sept. 18, 2026 |
| Turning length | mm |
| Type of CNC | Siemens 840D with ShopTurn |
| Number of turrets | 1 |
| Number of rotating tools | 4 |
| Turning Ø | 246 mm |
| Spindle taper | 8 |
| Number of tools on turret | 12 |
| Max workpiece weight | kg |
Popis
cnc self-learning lathes

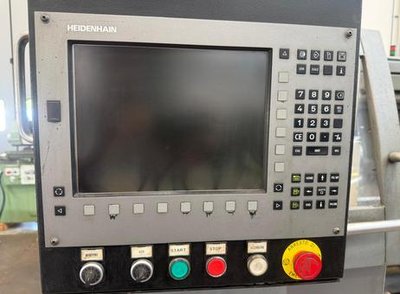

Cnc Control: HEIDENHAIN MANUAL-Plus 620
Center Height: 260 mm
Distance Between Centers: 1,500 mm
Max Swing Over The Bench: Ø 530 mm
Max Swing Over The Gap: Ø 780 mm
Max Swing Over Longitudinal Carriage: Ø 475 mm
Max Swing Over Transversal Carriage: Ø 315 mm
Bench Width: 350 mm
X Axis Travel: 285 mm
Z Axis Travel: 1,500 mm
Bar Diameter Capacity Through The Spindle: Ø 78 mm

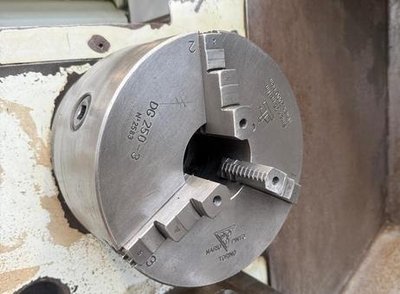

Spindle Chuck Diameter: Ø 250 mm
Spindle Nose Size: 8" Cam Lock
Spindle Cone Nose Type: MT 5
Spindle Speed: 1,700 Rpm
Spindle Motor Power: 7.5 kW
Manual Turret Positions: 4 positions
X Z Axes Feedrate: 10,000 mm/min
X Z Axes Cutting Feedrates: 1 - 10,000 mm/min
Tailstock Quill Diameter: Ø 72 mm
Tailstock Taper Size: MT-5
Tailstock Quill Travel: 180 mm
Accessories: Coolant tank with pump + Tailstock + Tool holders + Manuals + Electrical diagrams + EC CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Cnc Control: HEIDENHAIN MANUAL-Plus 620
Center Height: 260 mm
Distance Between Centers: 1,500 mm
Max Swing Over The Bench: Ø 530 mm
Max Swing Over The Gap: Ø 780 mm
Max Swing Over Longitudinal Carriage: Ø 475 mm
Max Swing Over Transversal Carriage: Ø 315 mm
Bench Width: 350 mm
X Axis Travel: 285 mm
Z Axis Travel: 1,500 mm
Bar Diameter Capacity Through The Spindle: Ø 78 mm
Spindle Chuck Diameter: Ø 250 mm
Spindle Nose Size: 8" Cam Lock
Spindle Cone Nose Type: MT 5
Spindle Speed: 1,700 Rpm
Spindle Motor Power: 7.5 kW
Manual Turret Positions: 4 positions
X Z Axes Feedrate: 10,000 mm/min
X Z Axes Cutting Feedrates: 1 - 10,000 mm/min
Tailstock Quill Diameter: Ø 72 mm
Tailstock Taper Size: MT-5
Tailstock Quill Travel: 180 mm
Accessories: Coolant tank with pump + Tailstock + Tool holders + Manuals + Electrical diagrams + EC CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
