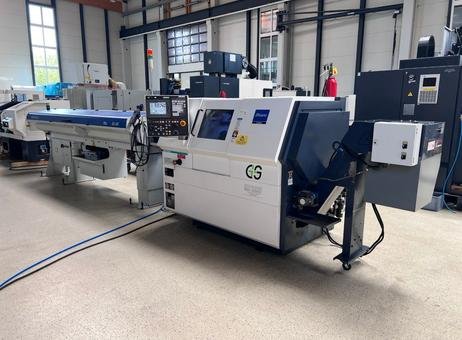

Miyano BNA-42 MSY CNC lathe
49.00 €
Dohodou
| Stan | gebraucht |
|---|---|
| Výrobce | Fanuc |
| Rok výroby | 2012 |
| Manufacturer | Miyano |
| Model | BNA-42 MSY |
| Year | 2012 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Tailstock | yes |
| Bar feeder | yes |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Miyano BNA-42 MSY |
| Last availability date | 16/09/2026 |
| Product id | P260916231 |
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 31 |
| Last activity | Sept. 17, 2026 |
| Turning length | 300 mm |
| Type of CNC | FANUC |
| Z-axis | 800 mm |
| Number of turrets | 2 |
| Number of rotating tools | 12 |
| Spindle motor power | 1518 kW |
| Turning Ø | 51 mm |
| X-axis | 260 mm |
| Spindle taper | a26 |
| Number of tools on turret | 2 |
| Turning speed | 6000 rpm |
| Ø above the bed | mm |
| Length between centers | mm |
| Max workpiece weight | kg |
| Spindle bore | 42 mm |
| Ø above transversing slide | mm |
Popis
Miyano BNA-42 MSY
Year of manufacture: 2012

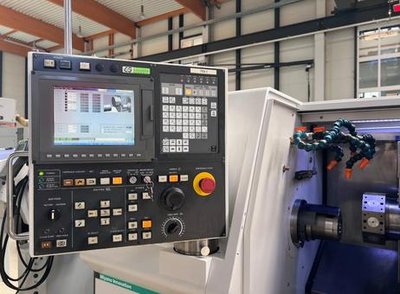

Control system: Mitsubishi M70
Turning length: 100 mm
____________
Description:
Main spindle:
Technology: Belt-driven spindle
Speed: 6,000 rpm
Power (max.): 7.5 kW
Torque (max.): 60.8 Nm
Bar capacity: 42 mm
C-axis: 0.001°
Workpiece clamping: Collet chuck, Type 173E

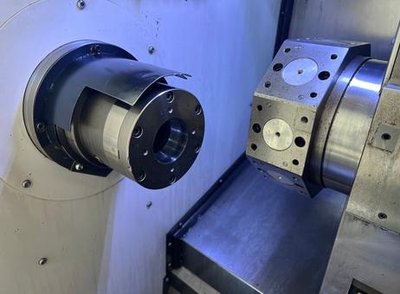

Sub-spindle:
Technology: Belt-driven spindle
Speed: 5,000 rpm
Power (max.): 5.5 kW
Torque (max.): 38.7 Nm
C-axis: 0.001°
Workpiece clamping: Collet chuck
Travel in X/Z: 140/310 mm
Rapid traverse in X/Z: 12 m/min

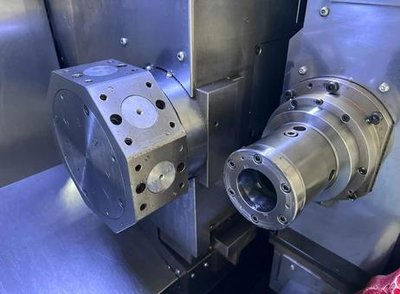

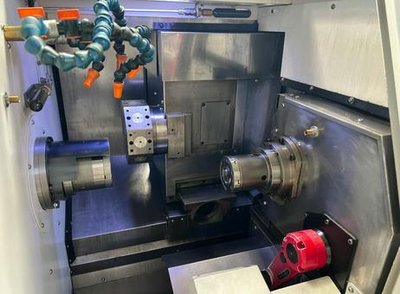

Tool carrier (X/Y/Z):
Technology: 8-station turret
Tool drive: 5,000 rpm
Travel in X/Y/Z: 140/70/235 mm
Rapid traverse in X/Y/Z: 20 m/min
Equipment/Accessories:
Chip management: Chip conveyor
Coolant management: Coolant pump
Raw material feed: Bar feeder, IEMCA Master 80 HF
Finished part removal: Part collection tray with conveyor belt
Fire suppression system: Kraft + Bauer
Additional equipment: Transformer
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
