BERTHIEZ LVM 125 CNC vertical turret lathe with cnc

BERTHIEZ LVM 125 CNC vertical turret lathe with cnc
View price
BERTHIEZ
LVM 125 CNC
1991
Italy
Lathes - CNC vertical turret lathes
P240606403
Plate diameter
1400 mm
Working height
1480 mm
CNC type
SIEMENS 840 D
Max piece weight
10000 kg
Rotation speed
2000 rpm
Engine Power
15 kW
Overhauled
yes
Year of overhauling
2001
Weight
30000 kg
good
visible
17/03/2026

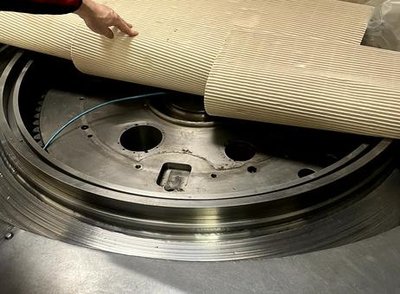

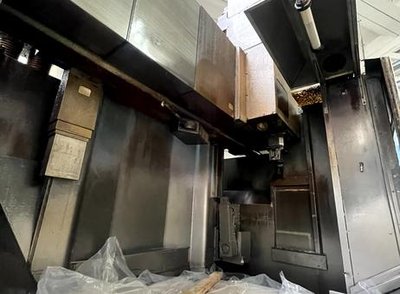

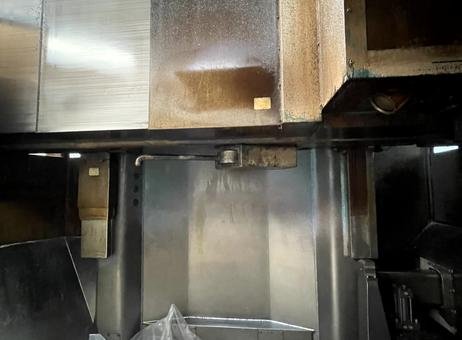

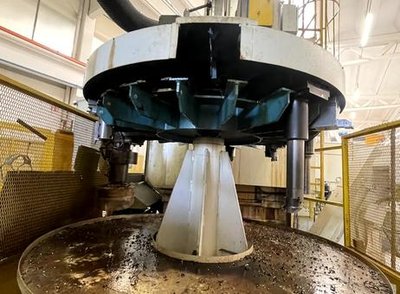

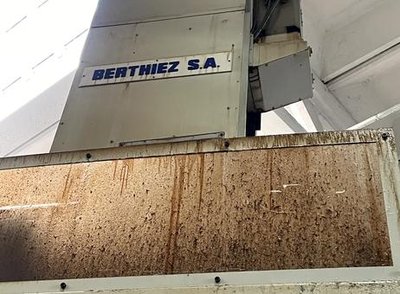

This BERTHIEZ LVM 125 CNC vertical turret lathe, manufactured in 1991 and overhauled in 2001, is a robust machine designed for heavy-duty turning operations. It features a 1,400 mm diameter rotating table capable of handling a maximum piece weight of up to 10,000 kg. The working height of the lathe is 1,480 mm, accommodating large workpieces with ease. The lathe is powered by a milling motor with a 15 kW output and offers a rotation speed of up to 2,000 rpm, suitable for a variety of machining tasks. The machine weighs approximately 30,000 kg, underscoring its industrial-grade construction. It comes equipped with a CNC SIEMENS 840 D control system, facilitating precise and automated machining processes. Additional features include a "C" axis and driven tools, a three-station pallet changer, and a 20-space warehouse for tool storage. The lathe also includes a chip conveyor to manage machining debris efficiently, a head to rectify, Renishaw tool control for enhanced accuracy, and various tool holders. Visually, the machine shows signs of wear consistent with industrial use, including discoloration and minor scratches on metallic surfaces, as well as some rust stains and dirt marks on the exterior. Inside, the working area has protective plastic coverings on the floor and some residue buildup. The tool turret is equipped with multiple tool holders and is surrounded by protective mesh fencing. The control panel features a screen, keyboard, and multiple buttons and switches, with some wear and paint chipping visible on the frame. Overall, this lathe is a well-equipped machine suitable for demanding vertical turning applications. Ø table 1,400 mm. X 3
Ø max. turnable 1,600 mm. Spindle power 50 kW. Max. height turnable 1,480 mm. Table scope 10 Tons. Table rotation speed 3.2 ÷ 400 Rpm. RAM wagon vertical travel 1,000 mm. RAM section 240 x 210 mm. Milling motor power 15 kW. Milling speed 16 ÷ 2,000 Rpm. Cnc CNC SIEMENS 840 D
Total weight 30 tons. Features and Accessories
Revised in 2001. Complete with:
- "c" axis and driven tools
- three-station pallet changer
- 20-space warehouse
- head to rectify
- renishaw tool control
- various tool holders
- chip conveyor
Frequently Asked Questions (AI-Generated)
When was this BERTHIEZ LVM 125 manufactured? This BERTHIEZ LVM 125 CNC vertical turret lathe was manufactured in 1991. Is the machine currently in production? This lathe is currently not in production. Does this equipment need any repairs? This equipment does not require any repairs. What new components are included with this BERTHIEZ LVM 125? This BERTHIEZ LVM 125 CNC vertical turret lathe includes a new set of chains for the drive to the table. The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details. 2009
