Berthiez VTL CNC vertical turret lathe

Berthiez VTL CNC vertical turret lathe
Verified seller
Price on request
Make an offer
Manufacturer
Berthiez
Model
VTL
Year
1987
Location
Germany
Category
Lathes - CNC vertical turret lathes
Product id
P260308252
Buy this machine
Language
Language
CNC каруселен струг Berthiez VTL
CNC svislý karuselový soustruh Berthiez VTL
Berthiez VTL CNC-karusseldrejebænk
Berthiez VTL CNC-Karusselldrehmaschine
Κάθετος τόρνος CNC Berthiez VTL
Berthiez VTL CNC vertical turret lathe
Torno vertical CNC Berthiez VTL
Tour vertical CNC Berthiez VTL
CNC karuselni tokarski stroj Berthiez VTL
Berthiez VTL CNC karusszel esztergagép
Tornio verticale CNC Berthiez VTL
Berthiez VTL CNC karuselinės tekinimo staklės
Berthiez VTL CNC-carrouseldraaibank
Tokarka karuzelowa CNC Berthiez VTL
Torno vertical CNC Berthiez VTL
Strung carusel CNC Berthiez VTL
Berthiez VTL Карусельный токарный станок с ЧПУ
CNC karuselni strug Berthiez VTL
Berthiez VTL CNC-karusellsvarv
CNC dikey torna Berthiez VTL
Get price & details
+49 05 1…
Show phone
Details
About this seller
Specifications
Plate diameter
6300 mm
Working height
4900 mm
CNC type
Siemens 840D CNC
Max piece weight
150000 kg
Rotation speed
0.4 rpm
Engine Power
142 kW
Overhauled
no
Year of overhauling
2010
-------------------
Length x width x height
13000.0
× 6500.0
× 11000.0
Weight
275000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Berthiez VTL
Last availability date
23/03/2026
Show more
Automatic description (AI-Generated)
This listing is for a Berthiez CNC Vertical Turret Lathe, model VTL, originally manufactured in 1987. The machine features a large faceplate with a diameter of 6300 mm, capable of handling a maximum piece weight of up to 150,000 kg. It supports a maximum turning diameter of 9700 mm and a working height of 4900 mm, making it suitable for machining very large and heavy components.
The lathe is powered by a table motor with a total rating of 142 kW, delivering rotation speeds ranging from 0.4 to 50 rpm in four steps. The machine measures 13,000 mm in length, 6,500 mm in width, and 11,000 mm in height, with an overall weight of approximately 275,000 kg.

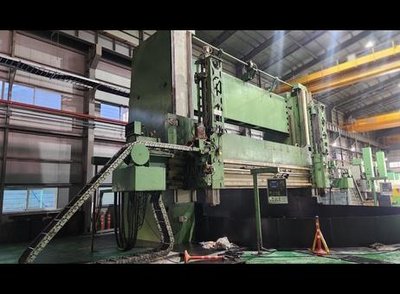

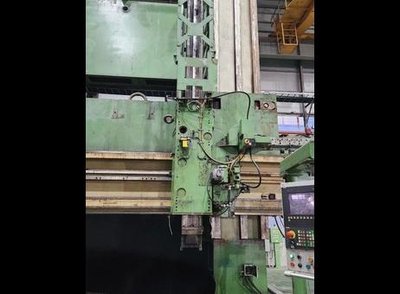

Equipped with both a left ram for milling and a right ram for turning, it provides versatile machining capabilities. The machine includes individual NC control panels for each ram, allowing precise and independent control. The turret assembly is supported by vertical columns on both sides of a cross rail, facilitating vertical and horizontal movement of the turret head.
The machine underwent a significant overhaul in 2010, which included replacement of the Siemens control system, electrical components, motors, cables, ball screws, bushings, couplings, hydraulics, and both rams. This retrofit was performed by UMARO SA in Romania, the VTL manufacturer.

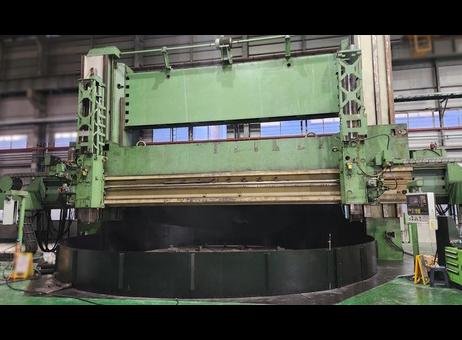

Visually, the machine appears structurally intact with some signs of wear consistent with industrial use. The large green CNC vertical turret lathe features a circular worktable base and robust construction suitable for heavy-duty machining tasks. This equipment is currently still under power and operational within the factory environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Machine Title: CNC Vertical Turret Lathe
Manufacturer: Berthiez
Model: VTL
Year of Manufacture: 1987
Faceplate Diameter: 6300 mm
Weight on Faceplate: Max. 150,000 kg (150 ton)
Turning Diameter: Max. 9700 mm
Turning Height: Max. 4900 mm
Travels: X mm, Z mm
Table Motor Rating: 71 x 2 (142 KW) KW
Table Speeds: 0.4 - 50 rpm (4 steps)
Left Ram for Milling: Yes
Right Ram for Turning: Yes
Milling Spindle Motor Rating: KW
Machine Dimensions:
Length: 13000 mm
Width: 6500 mm
Height: 11000 mm
Machine Weight: Approx. 275,000 kg (275 ton)
Equipped with:
- Individual NC control panel for left & right ram
- Left ram for milling
- Right ram for turning
Condition: Very good - Still under power and working in the factory
Retrofitted in 2010 by VTL manufacturer UMARO SA in Romania
New Siemens control, electricals, motors, cables, ball screws, bushings, couplings, hydraulics & 2 rams were replaced with new ones.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
