CAMU AEPI vertical turret lathe with cnc

CAMU AEPI vertical turret lathe with cnc
Verified seller
Price on request
Make an offer
Manufacturer
CAMU
Model
AEPI
Year
Location
Italy
Category
Lathes - CNC vertical turret lathes
Product id
P230313129
Buy this machine
Language
Language
CAMU AEPI
Soustruh - karusel cnc CAMU AEPI
CAMU AEPI
CAMU AEPI Karusselldrehmaschine CNC
CAMU AEPI
CAMU AEPI vertical turret lathe with cnc
Torno vertical cnc CAMU AEPI
Tour vertical à cnc CAMU AEPI
CAMU AEPI
CAMU AEPI
Tornio verticale CAMU AEPI
CAMU AEPI
CAMU AEPI
Tokarka karuzelowa CNC CAMU AEPI
CAMU AEPI
CAMU AEPI
CAMU AEPI Вертикальный токарно-револьверный станок с ЧПУ
CAMU AEPI
CAMU AEPI
Dik taret Torna CAMU AEPI
Get price & details
+39 3 93…
Show phone
Details
About this seller
Specifications
Working height
5000 mm
CNC type
FAGOR 8055
Rotation speed
1200 rpm
Engine Power
100 kW
Overhauled
yes
Year of overhauling
2013
-------------------
worked hours
1800
hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
17/03/2026
Show more
Automatic description (AI-Generated)

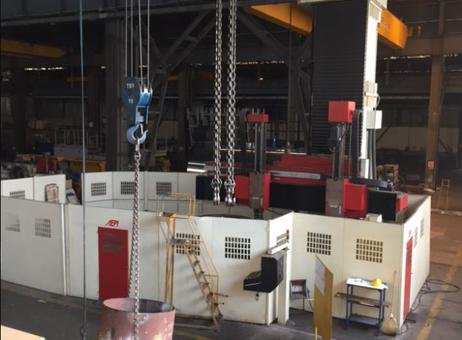

The CAMU AEPI Vertical Turret Lathe with CNC is a robust industrial machine designed for heavy-duty metal machining tasks. It features a large vertical turret lathe configuration, enclosed within white and red safety panels that include ventilation grates and access doors, ensuring operator safety and machine protection. The machine is equipped with a substantial rotary table with T-slots for secure workpiece mounting, capable of handling turning diameters ranging from 3000 mm up to 10,000 mm and a working height of 5000 mm.
This lathe offers a traverse stroke of 4450 mm, a vertical ram stroke (Z-axis) of 1300 mm, and a transverse ram stroke (X-axis) of 3600 mm. The spindle diameter measures 3400 mm with a spindle translation of 2550 mm. It includes a left turning ram fitted with a tool holder turret and a ram featuring an ISO taper drilling/milling spindle 50, capable of reaching rotation speeds up to 1200 rpm. The machine is powered by a 100 kW motor, providing the necessary force for demanding machining operations.

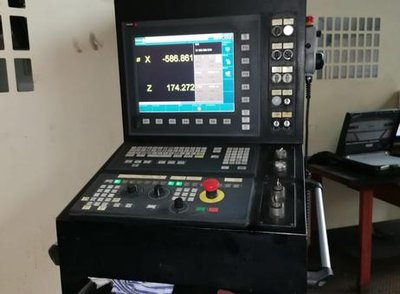

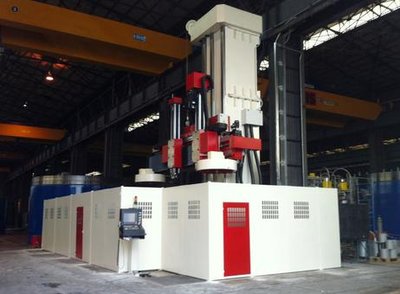

The AEPI model is designed with user accessibility in mind, featuring a yellow metal stairway attached to the enclosure for safe access to elevated areas. A control panel mounted on the enclosure wall offers CNC operation capabilities, with a screen, buttons, knobs, and an emergency stop button, facilitating precise programming and control. The control panel is operational and shows coordinate data.
The machine is housed indoors with industrial lighting and overhead crane systems, including crane hooks and chains visible above the lathe, supporting the handling of heavy components. The vertical guideways are protected by bellows, contributing to machine longevity. The machine and surrounding area appear clean and well maintained, although some surfaces, such as the turret and table, show signs of wear, discoloration, and dirt consistent with regular use.
This vertical turret lathe is suitable for machining large cylindrical workpieces, as evidenced by a mounted workpiece showing machining marks and surface discoloration. Overall, the CAMU AEPI Vertical Turret Lathe combines substantial machining capacity with operator-friendly features and a solid build, making it a valuable asset for metalworking operations requiring precision and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
DOUBLE RAM
AXIS C
Turning diameter mm from 3000 to 10,000
Turning height mm 5000
Traverse stroke mm 4450
Ram Z vertical stroke mm 1300
Ram X transverse stroke mm 3600

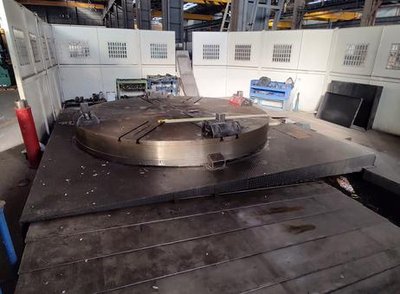

Spindle diameter mm 3400
Spindle translation mm 2550

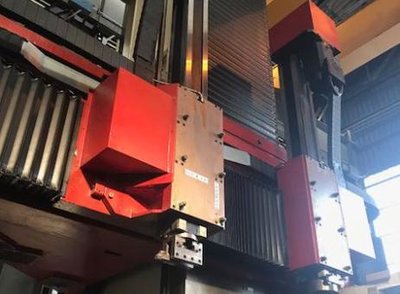

Left turning ram with tool holder turret
Ram with ISO taper drilling/milling spindle 50
Drilling spindle rpm 1200
Automatic tool changer
100KW motors
Electronic handwheel
Machine equipped with ladder and access balcony at height for the turner SECOND-HAND
this extra information is standard for this model. Please always double-check the details during a visit
The CAMU AEPI Vertical Turret Lathe with CNC is a cutting-edge metal machining solution, known for its versatility and high precision. This state-of-the-art machine is designed to handle a wide range of metal components, providing efficient and accurate results.
The AEPI features a vertical turret design, allowing for the machining of large and heavy workpieces with ease. Its CNC control system provides advanced programming capabilities, enabling operators to create complex turning operations and achieve precise dimensions.
Equipped with a powerful spindle motor and a variety of cutting tools, the AEPI delivers high-speed and high-performance turning capabilities. The machine's rigid construction ensures stability during heavy-duty cutting tasks, minimizing vibration and enhancing accuracy.
The CAMU AEPI Vertical Turret Lathe with CNC also offers a user-friendly interface, simplifying setup and operation. Its automatic tool changer enables seamless tool transitions, reducing downtime and optimizing productivity.
The lathe's coolant and chip management systems maintain a clean work environment and extend tool life, contributing to increased efficiency and cost-effectiveness.
In conclusion, the CAMU AEPI Vertical Turret Lathe with CNC stands as an exceptional metal machining solution. Its vertical turret design, CNC control, and user-friendly interface make it suitable for various industries, from aerospace to heavy machinery manufacturing. Whether handling single-piece production or high-volume runs, the AEPI delivers outstanding results with precision and reliability, making it a valuable asset for modern metalworking operations.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
