CNC Vertical turret lathe TOS HULIN BT 1600 S2

CNC Vertical turret lathe TOS HULIN BT 1600 S2
Top seller
Price on request
View price
Manufacturer
TOS HULIN
Model
BT 1600 S2
Year
2018
Location
Czech Republic
Category
Lathes - CNC vertical turret lathes
Product id
P260226257
Buy this machine
Language
Language
CNC каруселен струг TOS HULIN BT 1600 S2
CNC svislý karuselový soustruh TOS HULIN BT 1600 S2
TOS HULIN BT 1600 S2 CNC-karusseldrejebænk
TOS HULIN BT 1600 S2 CNC-Karusselldrehmaschine
Κάθετος τόρνος CNC TOS HULIN BT 1600 S2
CNC Vertical turret lathe TOS HULIN BT 1600 S2
Torno vertical CNC TOS HULIN BT 1600 S2
Tour vertical CNC TOS HULIN BT 1600 S2
CNC karuselni tokarski stroj TOS HULIN BT 1600 S2
TOS HULIN BT 1600 S2 CNC karusszel esztergagép
Tornio verticale CNC TOS HULIN BT 1600 S2
TOS HULIN BT 1600 S2 CNC karuselinės tekinimo staklės
TOS HULIN BT 1600 S2 CNC-carrouseldraaibank
Tokarka karuzelowa CNC TOS HULIN BT 1600 S2
Torno vertical CNC TOS HULIN BT 1600 S2
Strung carusel CNC TOS HULIN BT 1600 S2
TOS HULIN BT 1600 S2 Карусельный токарный станок с ЧПУ
CNC karuselni strug TOS HULIN BT 1600 S2
TOS HULIN BT 1600 S2 CNC-karusellsvarv
CNC dikey torna TOS HULIN BT 1600 S2
Get price & details
Details
About this seller
Specifications
Plate diameter
1600 mm
Working height
1500 mm
CNC type
SIEMENS
Max piece weight
12000 kg
Rotation speed
315 rpm
Engine Power
58 kW
Overhauled
no
-------------------
Length x width x height
8685.0
× 5325.0
× 5655.0
Weight
46 kg
worked hours
11910
hours
hours under power
state
excellent
At local norms
yes
status
under power
Datasheet
Tos Hulin BT 1600 S2
Last availability date
24/04/2026
Show more
Automatic description (AI-Generated)
This listing features a TOS HULIN BT 1600 S2 CNC vertical turret lathe, manufactured in 2018. The machine is designed for heavy-duty turning operations with a maximum turning diameter of 2000 mm and a chuck diameter of 1600 mm. It can handle workpieces up to 1500 mm in height and weighing as much as 12,000 kg. The lathe operates with a chuck speed range from 2 to 315 rpm, offering two infinitely variable speed ranges. The main drive is powered by a Siemens motor delivering 58 kW of power, capable of generating a maximum cutting force of 45,000 N. The ram stroke measures 1060 mm, supporting a variety of machining tasks.
Feed rates include a working feed range from 1 to 4000 mm/min and a rapid traverse speed up to 12,000 mm/min. The feed per revolution ranges from 0.001 to 50 mm/rev, and the machine supports thread cutting with pitches from 0.01 to 400 mm/rev. The overall machine dimensions are substantial, with a height of 5655 mm and a floor space requirement of 8685 mm by 5325 mm. The total weight is approximately 46,000 kg.

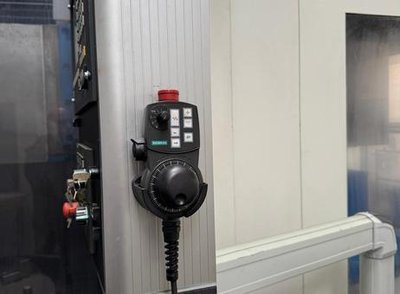

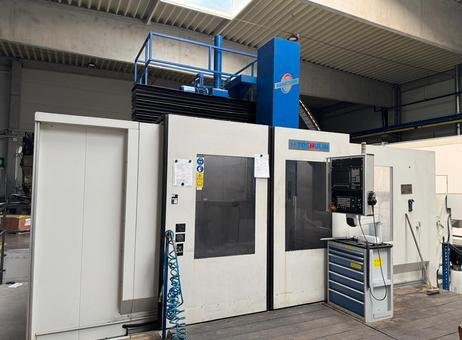

The machine features a Siemens Sinumerik CNC control panel with multiple buttons, knobs, and a screen, mounted on a blue cabinet that includes several drawers for storage. A handheld Siemens control device with multiple buttons and dials is also present, mounted on a vertical aluminum panel. The lathe’s rotary table is visible inside the enclosure through a glass window, although the window has some dirt and reflections that obscure full clarity. The rotary table surface shows signs of use with some debris.

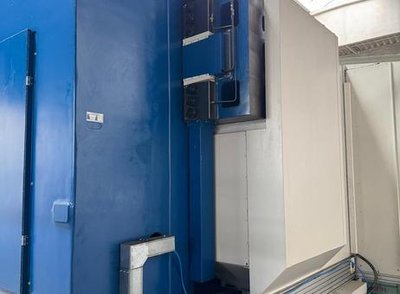

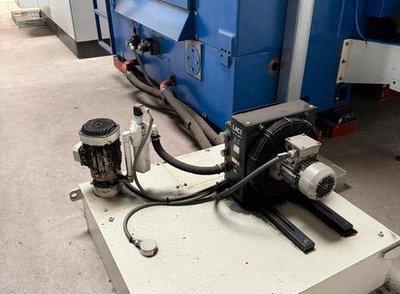

Additional components include a hydraulic or coolant pump assembly with a motor and radiator unit mounted on a white base plate. The machine's exterior is painted in white and blue, with some minor scuffs, dirt marks, and signs of general use but no visible structural damage. A blue coiled hose is attached on the left side of the machine. A ladder is attached for access to upper areas of the machine. Electrical cabinets are visible in the background near the machine.
Overall, the TOS HULIN BT 1600 S2 is a large, robust CNC vertical turret lathe suited for heavy and precise machining tasks, equipped with advanced Siemens control systems and well-maintained auxiliary components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Characteristic:
Control system: Siemens
Total hours: 11910 h
Max. turning diameter: 2.000 mm
Chuck diameter: 1.600 mm
Max. workpiece height: 1.500 mm
Max. workpiece weight: 12.000 kg
Chuck speed range: 2–315 rpm (2 ranges infinitely variable)
Main drive SIEMENS: 58 kW
Max. cutting force: 45.000 N
Ram stroke: 1.060 mm
Feeds:
Working feed: 1–4.000 mm/min
Rapid traverse: 12.000 mm/min
Feed per revolution: 0.001–50 mm/rev
Thread cutting pitch: 0.01–400 mm/rev
Dimensions and Weight:
Machine height: 5.655 mm
Floor space incl. guarding: 8.685 x 5.325 mm
Total weight: approx. 46.000 kg
