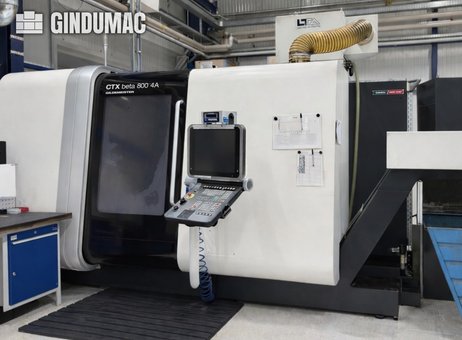

DMG CTX beta 800 4A CNC lathe
34.00 €
VB
| Zustand | gebraucht |
|---|---|
| Hersteller | DMG |
| Baujahr | 2013 |
| Manufacturer | DMG |
| Model | CTX beta 800 4A |
| Year | 2013 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 800 mm |
| Turning Ø | 400 mm |
| Ø above the bed | 285 mm |
| Ø above transversing slide | 285 mm |
| Length between centers | mm |
| X-axis | 276 mm |
| Z-axis | 755 mm |
| Max workpiece weight | kg |
| Spindle bore | 91 mm |
| Turning speed | 4000 rpm |
| Spindle motor power | 17.5 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | 13000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | DMG CTX beta 800 |
| Last availability date | 09/09/2026 |
| Product id | P260909269 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Type of CNC | siemens sinumerik 840d slimline |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | A2-8 |
| Number of tools on turret | 12 |
Beschreibung

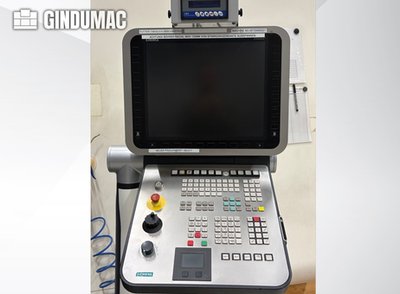

This 4-axis DMG CTX beta 800 4A was manufactured in 2013. It features a maximum turning diameter of 340 mm and a turning length of 735 mm. The machine is equipped with two 12-station tool turrets and an integrated spindle motor with a maximum speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG CTX beta 800 4A multi-spindle turning machine we have for sale. Contact us for further details.- Control: Siemens 840D Solutionline with ERGOline Control and ShopTurn 3G
- Max Turning Diameter: 340 mm
- Max Turning Length: 735 mm
- Main Spindle (HS): Integrated spindle motor ISM 102, 40/48 kW (100/40% ED), 0-4000 rpm, 570/680 Nm
- Counter Spindle (GS): Integrated spindle motor ISM 76, 25/32 kW (100/40% ED), 0-5000 rpm
- Draw Tube Inner Diameter: 104 mm

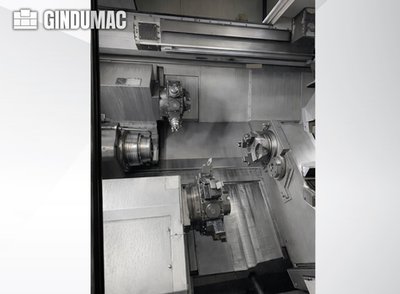

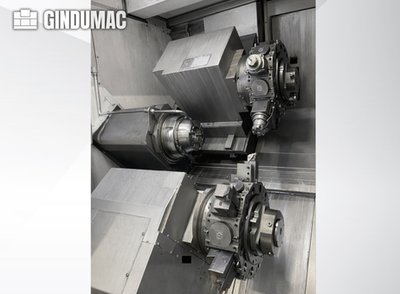

- Tool Turrets: 2x 12-station Sauter star turrets (VDI 40 with Trifix interface, DIN 69880-40)
- Driven Tool Drive: 2x Direct Drive, 40-10,000 rpm, 14.2 kW, 34 Nm
- Axis Configuration: 4 Main Motion Axes (X1, Z1, X2, Z2), 2 C-Axes with hydraulic spindle brake (HS + GS), Y-Axis for Slide 1 and Slide 2 (stroke 40 mm), NC cross-stroke X3 axis for counter-spindle slide (180 mm)
- Counter Spindle Slide: Includes NC cross-stroke X3 (180 mm) with linear scale, and integrated tailstock
- Tailstock: Automatic quill stroke 300 mm, tailstock force 1.5 - 6.3 kN, revolving center MT5
- Measuring Systems: Direct measuring systems (Glass scales) in X1, X2, and X3 axes
- Coolant System: 980 Liter tank with band filter, cooler, 8/20/80 bar pressure options, and expansion for Turret 2
- Additional Equipment: Chip conveyor, automatic electric sliding hood, workpiece in-process measurement system (Renishaw), Brankamp CMS collision monitoring system, mechanical oil mist separator (1,100 m³/h)
Control Brand: SIEMENS
Control Model: Sinumerik
Counter Spindle: yes
Machine Weight: 13000 kg
Max. Bar Diameter: 340 mm
Number of Axes: 4
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Max Turning Diameter: 340 mm
- Max Turning Length: 735 mm
- Main Spindle (HS): Integrated spindle motor ISM 102, 40/48 kW (100/40% ED), 0-4000 rpm, 570/680 Nm
- Counter Spindle (GS): Integrated spindle motor ISM 76, 25/32 kW (100/40% ED), 0-5000 rpm
- Draw Tube Inner Diameter: 104 mm
- Tool Turrets: 2x 12-station Sauter star turrets (VDI 40 with Trifix interface, DIN 69880-40)
- Driven Tool Drive: 2x Direct Drive, 40-10,000 rpm, 14.2 kW, 34 Nm
- Axis Configuration: 4 Main Motion Axes (X1, Z1, X2, Z2), 2 C-Axes with hydraulic spindle brake (HS + GS), Y-Axis for Slide 1 and Slide 2 (stroke 40 mm), NC cross-stroke X3 axis for counter-spindle slide (180 mm)
- Counter Spindle Slide: Includes NC cross-stroke X3 (180 mm) with linear scale, and integrated tailstock
- Tailstock: Automatic quill stroke 300 mm, tailstock force 1.5 - 6.3 kN, revolving center MT5
- Measuring Systems: Direct measuring systems (Glass scales) in X1, X2, and X3 axes
- Coolant System: 980 Liter tank with band filter, cooler, 8/20/80 bar pressure options, and expansion for Turret 2
- Additional Equipment: Chip conveyor, automatic electric sliding hood, workpiece in-process measurement system (Renishaw), Brankamp CMS collision monitoring system, mechanical oil mist separator (1,100 m³/h)
Control Brand: SIEMENS
Control Model: Sinumerik
Counter Spindle: yes
Machine Weight: 13000 kg
Max. Bar Diameter: 340 mm
Number of Axes: 4
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
