Honor Seiki VL-46A CNC vertical turret lathe

Honor Seiki VL-46A CNC vertical turret lathe
View price
You can purchase this machine from us directly, which gives you:
Secured payment
for the purchase
Dedicated compliance check
of the seller
Logistics and customs support
if applicable
After-sale follow up
if needed
Contact us to receive an offer. Honor Seiki
VL-46A
2007
Italy
Lathes - CNC vertical turret lathes
P260218136
Plate diameter
450 mm
Working height
350 mm
CNC type
Rotation speed
2250 rpm
Engine Power
18.5 kW
Overhauled
yes
Weight
6.5 kg
as-is, where-is
visible
Datasheet
Honor Seiki VL-46A
18/04/2026

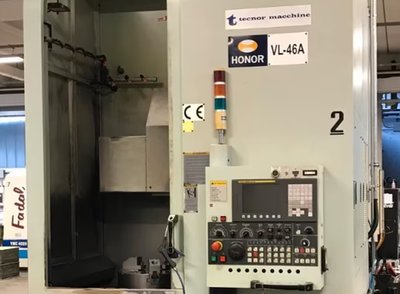

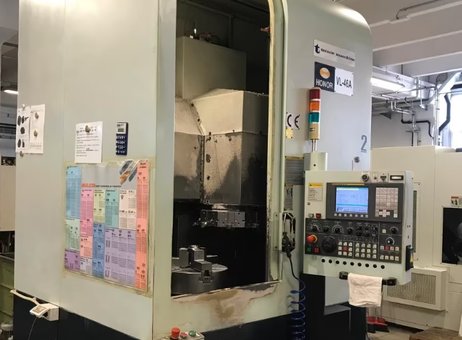

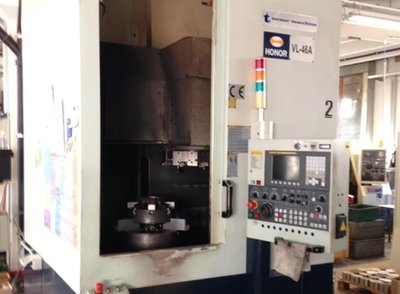

The Honor Seiki VL-46A is a vertical CNC lathe designed for precision heavy turning of medium-sized parts. Manufactured in May 2007 by Honor Machine Engineering Co., Ltd. in Taiwan, this machine is known for its rigidity and reliability. It features a Fanuc Series numerical control system with a color monitor, providing user-friendly operation. Key specifications include a table/chuck diameter of 305 mm (12 inches), a maximum turning diameter of 450 mm, and a maximum turning height of 350 mm. The spindle speed ranges from 25 to 2250 rpm, powered by a motor delivering 15 kW continuous power and 18.5 kW for 30 minutes. The lathe is equipped with an 8-station turret and weighs approximately 6,500 kg. The machine has an open front access design with the control panel positioned on the right side. The control panel includes a screen, buttons, and knobs for operation, topped with a three-color stack light indicator for status monitoring. An air hose connection is visible at the machine base. Included accessories are a chip evacuator with a side conveyor, original maintenance manuals, and wiring diagrams. The machine holds CE certification. Regarding condition, there is visible wear and discoloration, including some rust on the lower front edge of the machine enclosure, reflecting typical usage. Routine maintenance has been performed regularly. The machine footprint measures approximately 1550 x 3070 mm with a maximum height of 2900 mm. It is located in [YOUR CITY], with loading and transport costs to be covered by the buyer. This Honor Seiki VL-46A vertical CNC lathe is offered at €15,000, suitable for those seeking a robust machine for medium-sized heavy turning tasks. Honor Seiki vertical CNC lathe, model VL-46A, year of manufacture 2007. Extremely rigid and reliable machine, ideal for heavy turning of medium-sized parts. Main Technical Data:

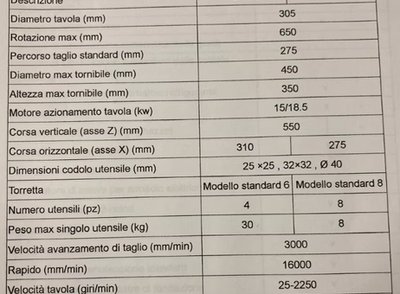

Brand: Honor Seiki (Importer: Tecnor Macchine)
Model: VL-46A
Numerical Control: Fanuc Series (color monitor)
Year: May 2007
Table/Chuck Diameter: 305 mm (12 inches)
Maximum Turning Diameter: 450 mm
Maximum Turning Height: 350 mm
Spindle Speed: 25 - 2250 rpm
Motor Power: 15 / 18.5 kW (Continuous/30 min)
Turret: 8 stations
Machine Weight: 6,500 kg
Accessories Included:
Chip evacuator (with side conveyor). Original maintenance manuals and wiring diagrams. CE certification. Condition:
Machine in good overall condition. Routine maintenance performed regularly. Price: €15,000
Logistics:
The machine is located in [YOUR CITY]. Loading and transport to be paid by the buyer. Footprint: 1550 x 3070 mm. Max height: 2900 mm. Factory – small or medium company
